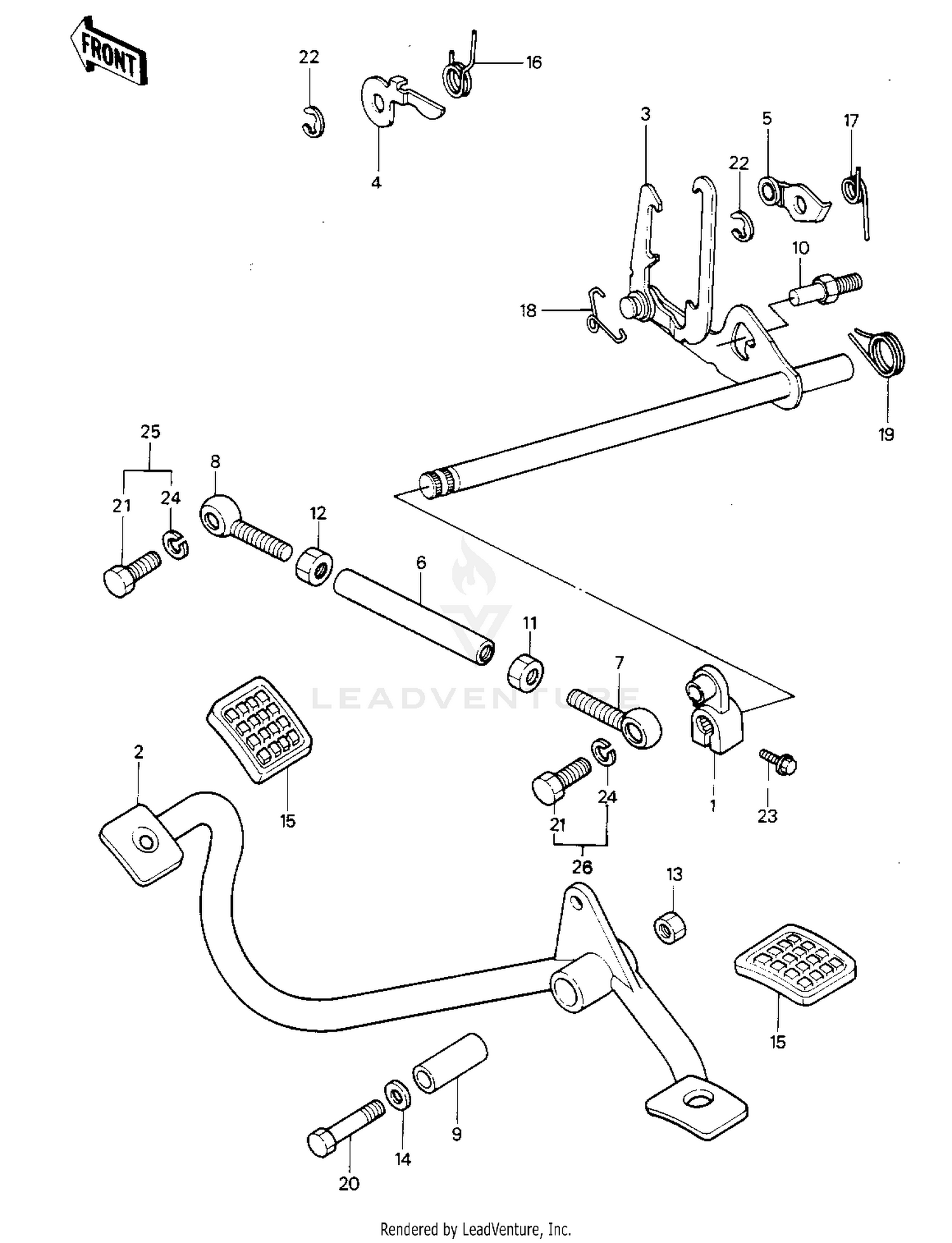

| Ref | Part Number | Description |
|---|
| 1 |
13156-4001 |
LEVER,GEAR CHANGE Price: $52.58 |
| 2 |
13156-4002 |
LEVER-CHANGE,PEDAL Price: $102.03 |
| 3 |
13161-1023 |
LEVER-COMP-CHANGE SHA Price: $94.41 |
| 4 |
13168-1074 |
LEVER,GEAR POSITIONIN Price: $9.43 |
| 5 |
13236-1029 |
LEVER-COMP,NEUTRAL PO Price: $12.59 |
| 6 |
39111-4001 |
ROD-TIE Price: $43.50 |
| 7 |
39112-1001 |
ROD END,TIE RH MALE Price: $46.89 |
| 8 |
39112-1002 |
ROD END,TIE LH MALE Price: $46.89 |
| 9 |
42036-4006 |
SLEEVE,CHANGE LEVER Price: $17.92 |
| 10 |
92001-1455 |
BOLT,RETURN SPRING This part replaces 92001-1401. Price: $4.69 |
| 11 |
92015-1005 |
NUT,RH THREAD Price: $1.03 |
| 12 |
92015-1006 |
NUT,LH THREAD Price: $1.30 |
| 13 |
92210-1184 |
NUT,LOCK,10MM This part replaces 92019-021. Price: $6.11 |
| 14 |
92022-044 |
WASHER,10.5X26X2.3 Price: $3.92 |
| 15 |
92075-4031 |
DAMPER,CHANGE PEDAL Price: $21.99 |
| 16 |
92081-1284 |
SPRING,POSITIONING LE Price: $7.90 |
| 17 |
92081-1285 |
SPRING Price: $7.90 |
| 18 |
92083-018 |
SPRING,KICK PAWL Price: $9.80 |
| 22 |
482J6000 |
CIRCLIP-TYPE-E,6MM Price: $0.69 |
