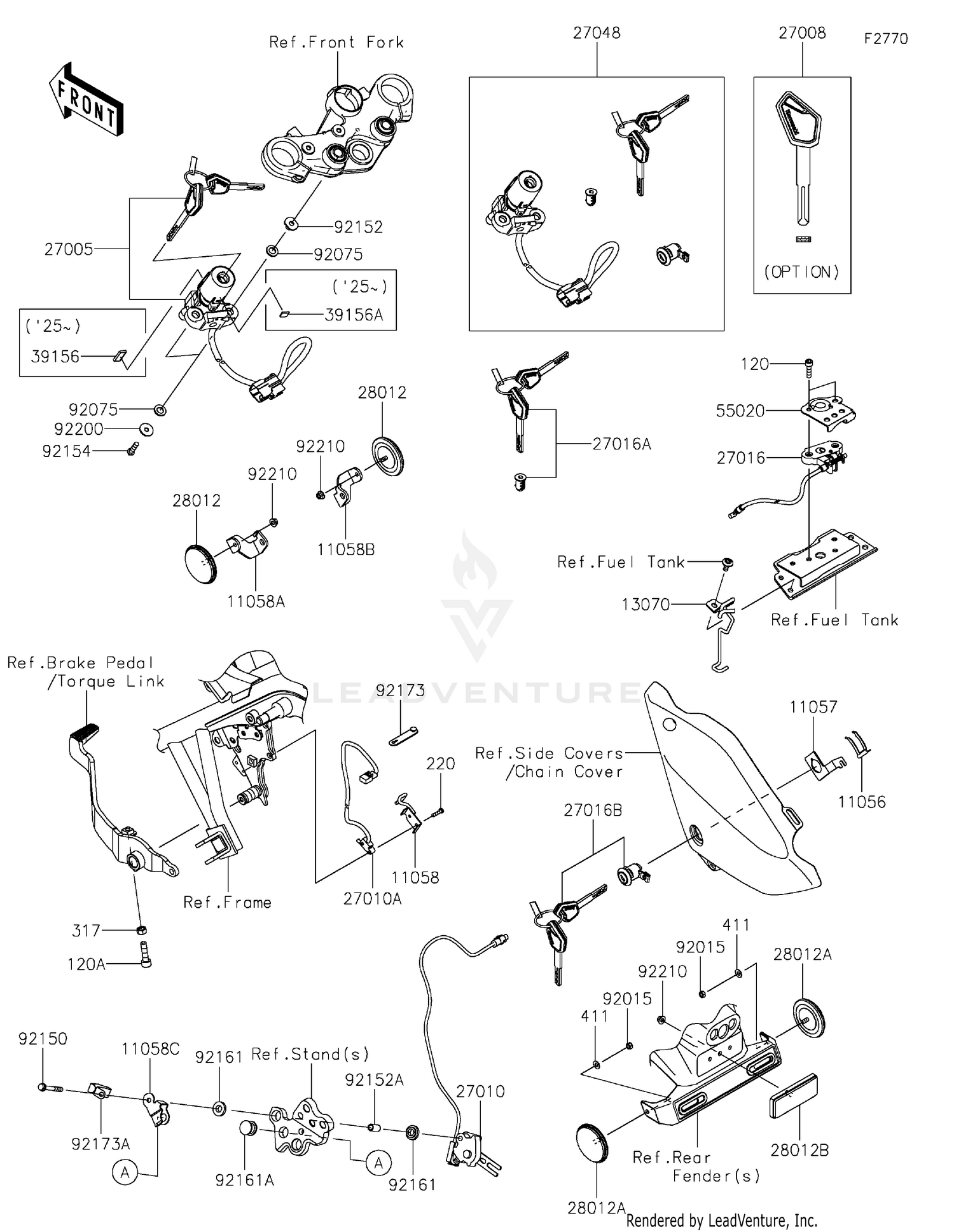

| Ref | Part Number | Description |
|---|
| 120 |
120CA0622 |
BOLT-SOCKET,6X22 Price: $2.06 |
| 120A |
120CB0830 |
BOLT-SOCKET,8X30 Price: $4.69 |
| 220 |
220AB0416 |
SCREW-PAN-CROS,4X16 Price: $1.81 |
| 317 |
317AB0800 |
NUT-HEX-SMALL,8MM Price: $0.69 |
| 11056 |
11056-0238 |
BRACKET,CLASP Price: $6.00 |
| 11057 |
11057-7033 |
BRACKET,SEAT LOCK Price: $4.40 |
| 11058 |
11058-0383 |
BRACKET,RR BRAKE Price: $7.39 |
| 11058A |
11058-0574 |
BRACKET,REFLECTOR,FR,LH Price: $6.38 |
| 11058B |
11058-0575 |
BRACKET,REFLECTOR,FR,RH Price: $6.38 |
| 11058C |
11058-1673 |
BRACKET Price: $3.87 |
| 13070 |
13070-1476 |
GUIDE,SEAT LOCK Price: $10.56 |
| 27005 |
27005-0724 |
SWITCH-ASSY-IGNITION Price: $161.98 |
| 27008 |
27008-0688 |
KEY-LOCK,BLANK Price: $28.87 |
| 27010 |
27010-0845 |
SWITCH,SIDE STAND Price: $117.80 |
| 27010A |
27010-0983 |
SWITCH,BRAKE Price: $77.10 |
| 27016 |
27016-0107 |
LOCK-ASSY,SEAT STRIKER Price: $28.71 |
| 27016A |
27016-5421 |
LOCK-ASSY,TANK CAP Price: $121.51 |
| 27016B |
27016-5429 |
LOCK-ASSY,SEAT Price: $134.28 |
| 27048 |
27048-5292 |
SWITCH-ASSY Price: $397.43 |
| 28012 |
28012-0061 |
REFLECTOR-REFLEX,FR,SIDE Price: $12.59 |
| 28012A |
28012-0063 |
REFLECTOR-REFLEX,RR,SIDE Price: $24.14 |
| 28012B |
28012-0064 |
REFLECTOR-REFLEX,RR,FLAP Price: $23.25 |
| 39156 |
39156-2586 |
PAD,25X10X3 Price: $0.95 |
| 39156A |
39156-2982 |
PAD,10X10X2 Price: $0.41 |
| 55020 |
55020-2468 |
GUARD,SEAT STRIKER Price: $6.57 |
| 92015 |
92015-1221 |
NUT,LOCK,5MM Price: $6.22 |
| 92075 |
92075-1564 |
DAMPER Price: $5.48 |
| 92150 |
132BB0645 |
BOLT-FLANGED-SMALL,6X45 This part replaces 92150-1884. Price: $4.76 |
| 92152 |
92152-1971 |
COLLAR,6X9X10.6 Price: $11.95 |
| 92152A |
92152-2274 |
COLLAR,6.5X9.5X17 Price: $2.44 |
| 92154 |
92154-1858 |
BOLT,TORX,6X22 Price: $3.94 |
| 92161 |
92161-0117 |
DAMPER Price: $2.90 |
| 92161A |
92161-0118 |
DAMPER Price: $2.90 |
| 92173 |
92173-2198 |
CLAMP Price: $1.48 |
| 92173A |
92173-2721 |
CLAMP Price: $3.64 |
| 92200 |
92200-0780 |
WASHER,6X20X1.6 Price: $1.19 |
| 92210 |
92210-0007 |
NUT,FLANGED,5MM Price: $2.70 |
