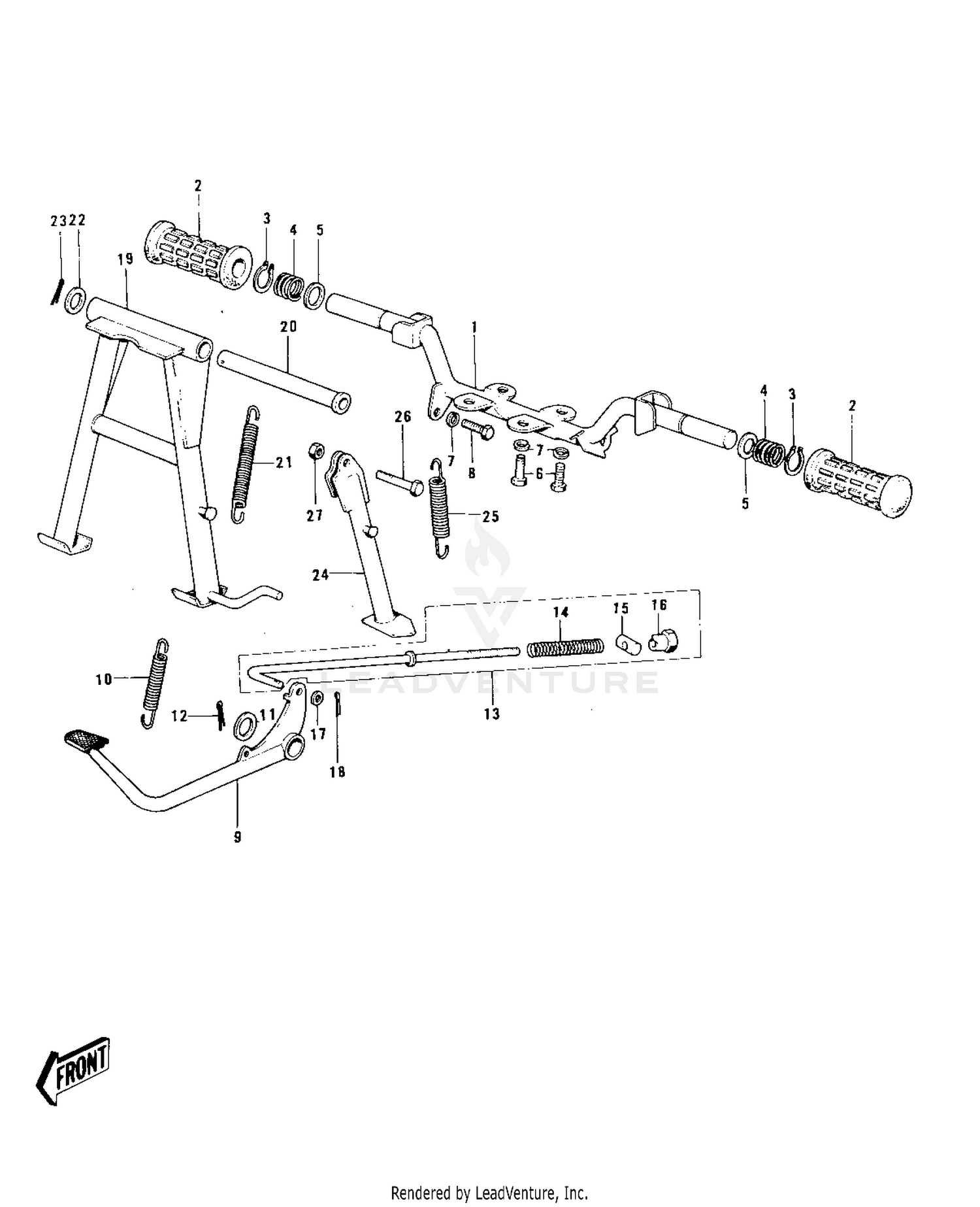

| Ref | Part Number | Description |
|---|
| 1 |
34002-048 |
BAR,FOOTREST Price: $53.82 |
| 2 |
92076-006 |
RUBBER FOOTREST Price: $18.94 |
| 3 |
480J1600 |
CIRCLIP-TYPE-C,16MM Price: $4.31 |
| 4 |
34006-002 |
SPRING FOOTREST PEG Price: $5.75 |
| 5 |
92022-049 |
WASHER FOLDING PEG Price: $3.17 |
| 6 |
115BA0816 |
BOLT-SMALL-UPSET This part replaces 115G0816. Price: $0.70 |
| 6 |
116B0816 |
BOLT HEX HEAD 8X16 Price: $0.25 |
| 7 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 8 |
115BA0820 |
BOLT-SMALL-UPSET,8X20 This part replaces 115G0820. Price: $5.52 |
| 9 |
43001-014 |
PEDAL BRAKE Price: $39.42 |
| 10 |
43005-005 |
SPRING BRAKE PEDAL Price: $5.27 |
| 11 |
92022-085 |
WASHER BRAKE PEDAL Price: $3.92 |
| 12 |
550AA3030 |
PIN-COTTER,3.0X30 This part replaces 550D3030. Price: $2.51 |
| 13 |
43010-5003 |
BRAKE ROD ASSY Price: $18.40 |
| 14 |
43012-001 |
SPRING,BRAKE ROD Price: $4.65 |
| 15 |
92043-0147 |
PIN,BRAKE ROD This part replaces 92043-039. Price: $6.38 |
| 16 |
92015-042 |
NUT,BRAKE ROD Price: $6.22 |
| 17 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 18 |
550AA2015 |
PIN-COTTER,2.0X15 This part replaces 550D2015. Price: $1.12 |
| 19 |
34011-1045 |
STAND-MAIN Price: $59.79 |
| 20 |
34019-006 |
SHAFT MAIN STAND Price: $13.27 |
| 21 |
34023-005 |
SPRING MAIN STAND Price: $10.92 |
| 22 |
92022-085 |
WASHER BRAKE PEDAL Price: $3.92 |
| 23 |
550AA3030 |
PIN-COTTER,3.0X30 This part replaces 550D3030. Price: $2.51 |
| 24 |
34024-053 |
STAND-SIDE Price: $39.42 |
| 25 |
34025-001 |
SPRING,SIDE STAND Price: $13.80 |
| 26 |
112C1-025 |
BOLT-UPSET This part replaces 113G1025. Price: $3.21 |
