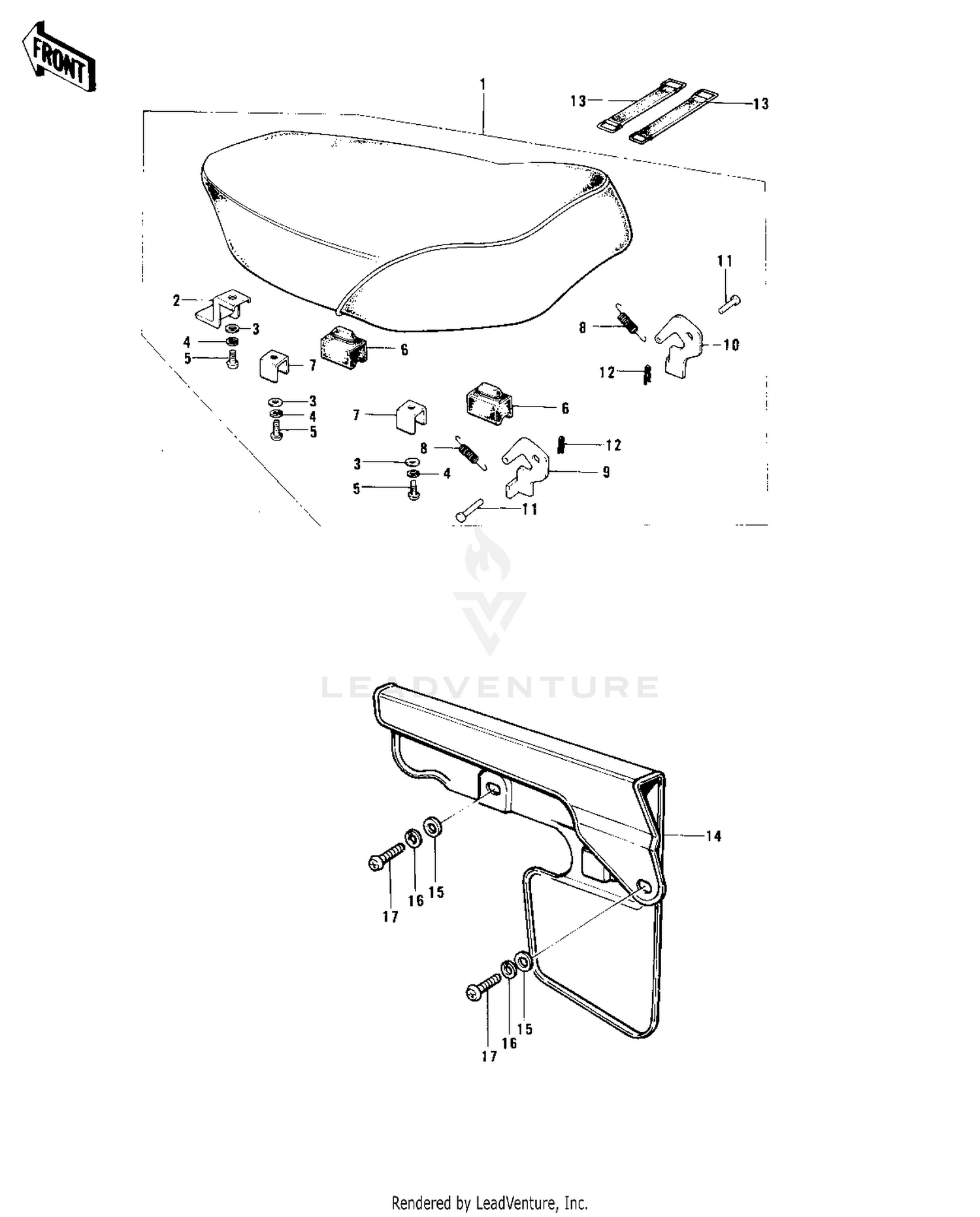

| Ref | Part Number | Description |
|---|
| 1 |
53001-1018 |
SEAT-ASSY Price: $236.85 |
| 2 |
53032-004 |
BRACKET,SEAT Price: $6.35 |
| 3 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 4 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 5 |
220AA0612 |
SCREW-PAN-CROS,6X12 This part replaces 220B0612. Price: $1.19 |
| 6 |
92075-099 |
DAMPER Price: $5.52 |
| 7 |
53012-012 |
SPRING,SEAT HOOK Price: $3.25 |
| 8 |
53012-013 |
SPRING,HOOK Price: $19.15 |
| 9 |
53008-031 |
HOOK,L.H SEAT Price: $11.12 |
| 10 |
53008-032 |
HOOK,R.H SEAT Price: $11.12 |
| 11 |
53011-001 |
PIN DUAL SEAT PIVOT Price: $5.59 |
| 12 |
92041-003 |
COTTER PIN Price: $5.72 |
| 13 |
92072-1419 |
BAND,L=50 This part replaces 92072-066. Price: $16.08 |
| 14 |
36014-1024 |
CASE-CHAIN Price: $40.50 |
| 15 |
411AA0600 |
WASHER-PLAIN,6MM This part replaces 411B0600. Price: $2.92 |
| 16 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
