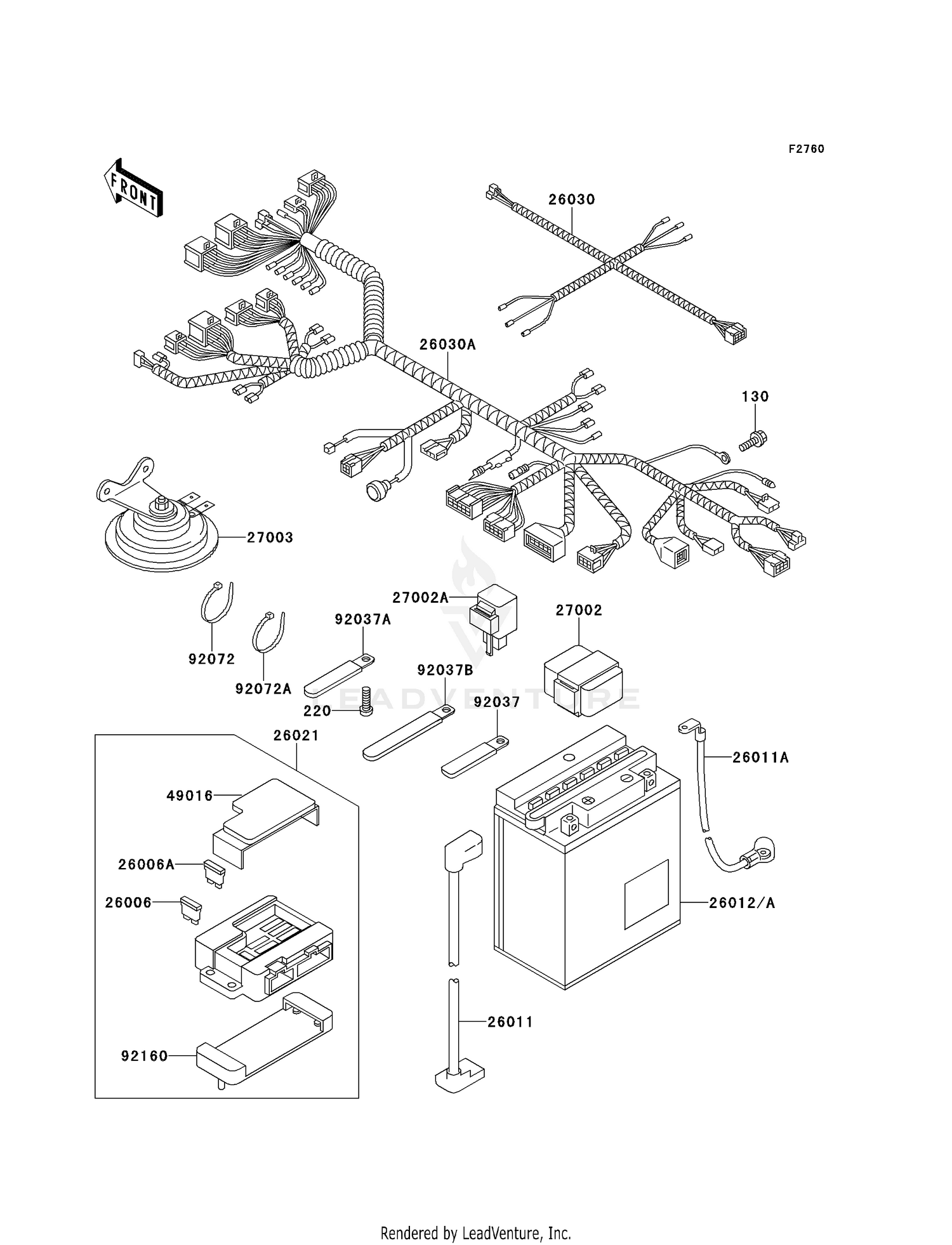

CHASSIS ELECTRICAL EQUIPMENT

CHASSIS ELECTRICAL EQUIPMENT

Parts (19)

RefPart NumberDescription
130 130BB0612 BOLT-FLANGED,6X12 This part replaces 130J0612. Price: $2.34
220 220AB0510 SCREW-PAN-CROS,5X10 This part replaces 220C0510. Price: $3.92
26006 26006-1006 FUSE,BLADE,30A,GREEN This part replaces 26006-1067. Price: $4.96
26006A 26006-1007 FUSE,BLADE,10A,RED This part replaces 26006-1068. Price: $4.96
26011 26011-1615 WIRE-LEAD,BATTERY(+) Price: $32.34
26011A 26011-1616 WIRE-LEAD,BATTERY(-) Price: $22.21
26012 26012-1279 YTX14-BS,12V 12AH Price: $123.84
26021 26021-0070 JUNCTION BOX This part replaces 26021-1096. Price: $168.61
26030 26030-1340 HARNESS,FR Price: $69.57
26030A 26030-1342 HARNESS,MAIN Price: $405.80
27002 27002-1065 RELAY-ASSY Price: $52.76
27002A 27002-1101 RELAY-ASSY,TURN SIGNAL This part replaces 27002-1092. Price: $72.36
27003 27003-1385 HORN Price: $67.87
49016 49016-1177 COVER-SEAL,FUSE Price: $9.54
92037 92171-0652 CLAMP,L=60 This part replaces 92037-1069. Price: $2.61
92037A 92037-1539 CLAMP,L=45 Price: $5.00
92037B 92037-1993 CLAMP Price: $5.52
92072 92072-1195 BAND,L=202 Price: $1.56
92072A 92072-1197 BAND,L=365 Price: $7.84
