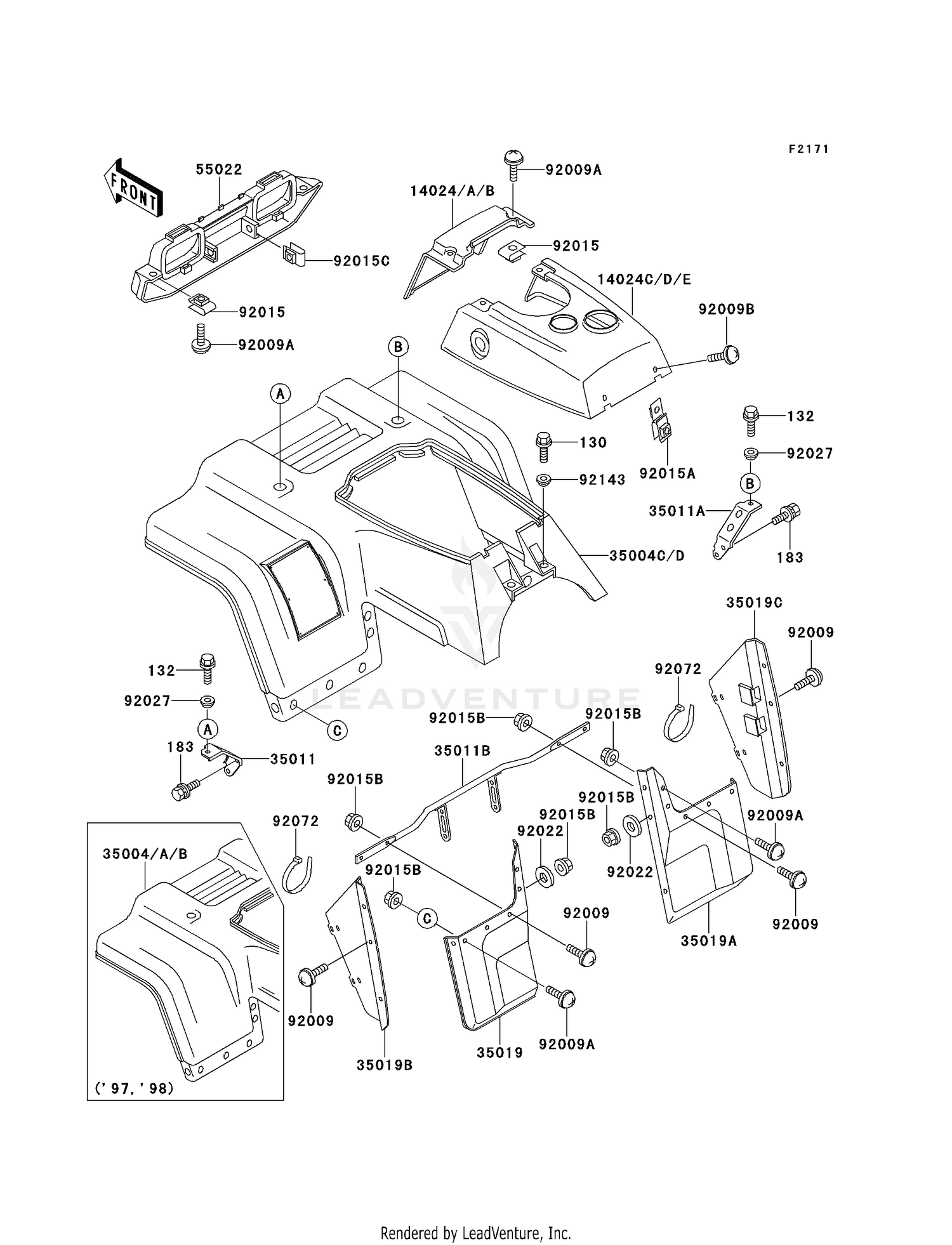

| Ref | Part Number | Description |
|---|
| 130 |
130AB0616 |
BOLT-FLANGED This part replaces 130C0616. Price: $0.64 |
| 132 |
132BB0820 |
BOLT-FLANGED-SMALL This part replaces 132J0820. Price: $4.12 |
| 183 |
183BB0814 |
BOLT-UPSET-WS-SMALL This part replaces 183J0814. Price: $5.07 |
| 14024A |
14024-1475-6A |
COVER,FRONT FENDER,FR Price: $26.24 |
| 14024B |
14024-1475-6L |
COVER,FR FENDER,F.RED Price: $28.15 |
| 14024D |
14024-1476-6A |
COVER,FRONT FENDER,RR Price: $26.24 |
| 14024E |
14024-1476-6L |
COVER,F.FENDER,RR RED Price: $28.15 |
| 35004C |
35004-1380-6A |
FENDER-FRONT,H.GREEN Price: $192.52 |
| 35004D |
35004-1380-6L |
FENDER-FRONT,F.RED Price: $183.66 |
| 35011 |
35011-1361 |
STAY,FRONT FENDER,LH Price: $19.59 |
| 35011A |
35011-1362 |
STAY,FRONT FENDER,RH Price: $19.59 |
| 35011B |
35011-1368 |
STAY,FRONT FLAP Price: $48.49 |
| 35019 |
35019-1195 |
FLAP,FRONT,LH Price: $24.40 |
| 35019A |
35019-1196 |
FLAP,FRONT,RH Price: $24.40 |
| 35019B |
35019-1197 |
FLAP,FR.INSIDE.LH Price: $17.61 |
| 35019C |
35019-1198 |
FLAP,FR.INSIDE,RH Price: $17.61 |
| 55022 |
55022-1060-6D |
COVER Price: $60.28 |
| 92009 |
92172-0002 |
SCREW,6X18 This part replaces 92009-1181. Price: $2.80 |
| 92009A |
92009-1662 |
SCREW,6X14 This part replaces 92009-1288. Price: $3.92 |
| 92009B |
92172-0005 |
SCREW,6X10 This part replaces 92009-1402. Price: $2.41 |
| 92015 |
92015-1094 |
NUT,6MM Price: $8.58 |
| 92015A |
92015-1667 |
NUT,PLATE Price: $11.37 |
| 92015B |
92015-1675 |
NUT,LOCK,FLANGED,6MM Price: $4.31 |
| 92015C |
92015-1691 |
NUT,8MM Price: $8.80 |
| 92022 |
92200-0283 |
WASHER,6.5X20X1.6 This part replaces 92022-1804. Price: $1.40 |
| 92027 |
92027-1908 |
COLLAR Price: $8.58 |
| 92072 |
92072-031 |
BAND,L=149 Price: $5.00 |
