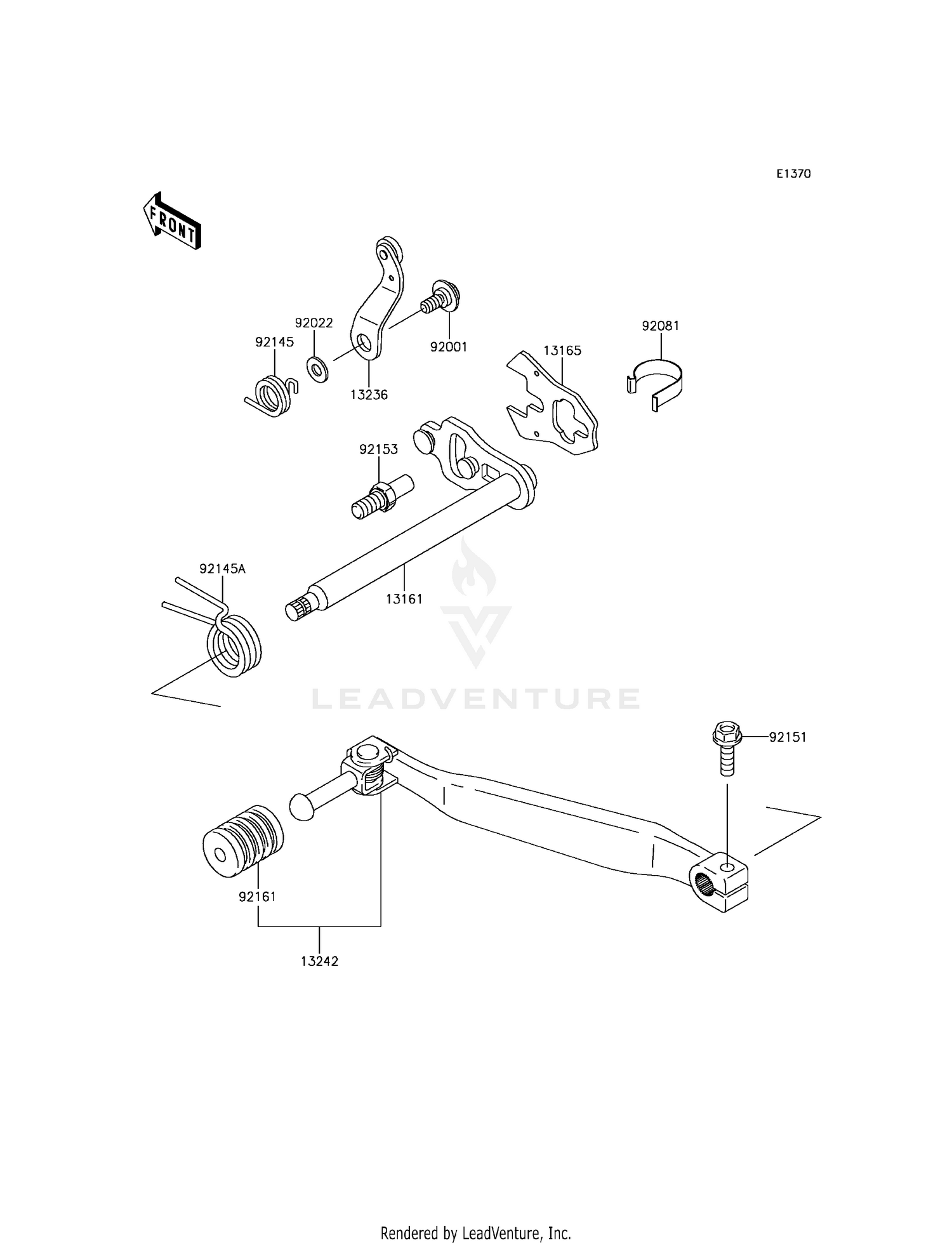

GEAR CHANGE MECHANISM
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 13161 | 13161-0065 | LEVER-COMP-CHANGE SHAFT Price: $68.14 |
| 13165 | 13165-1120 | PAWL Price: $14.10 |
| 13236 | 13236-0200 | LEVER-COMP Price: $9.21 |
| 13242 | 13242-0117 | LEVER-ASSY-CHANGE Price: $57.14 |
| 92001 | 92001-1715 | BOLT,FLANGED,6X14 Price: $10.65 |
| 92022 | 92022-1827 | WASHER,6X12.8X1.2 Price: $4.69 |
| 92081 | 92081-1493 | SPRING,CHANGE LEVER Price: $7.27 |
| 92145 | 92145-0773 | SPRING Price: $9.09 |
| 92145A | 92145-0774 | SPRING,CHANGE PEDAL RETURN Price: $11.34 |
| 92151 | 92151-1450 | BOLT,6X20 Price: $2.46 |
| 92153 | 92153-0720 | BOLT,8X15.5 Price: $5.54 |
