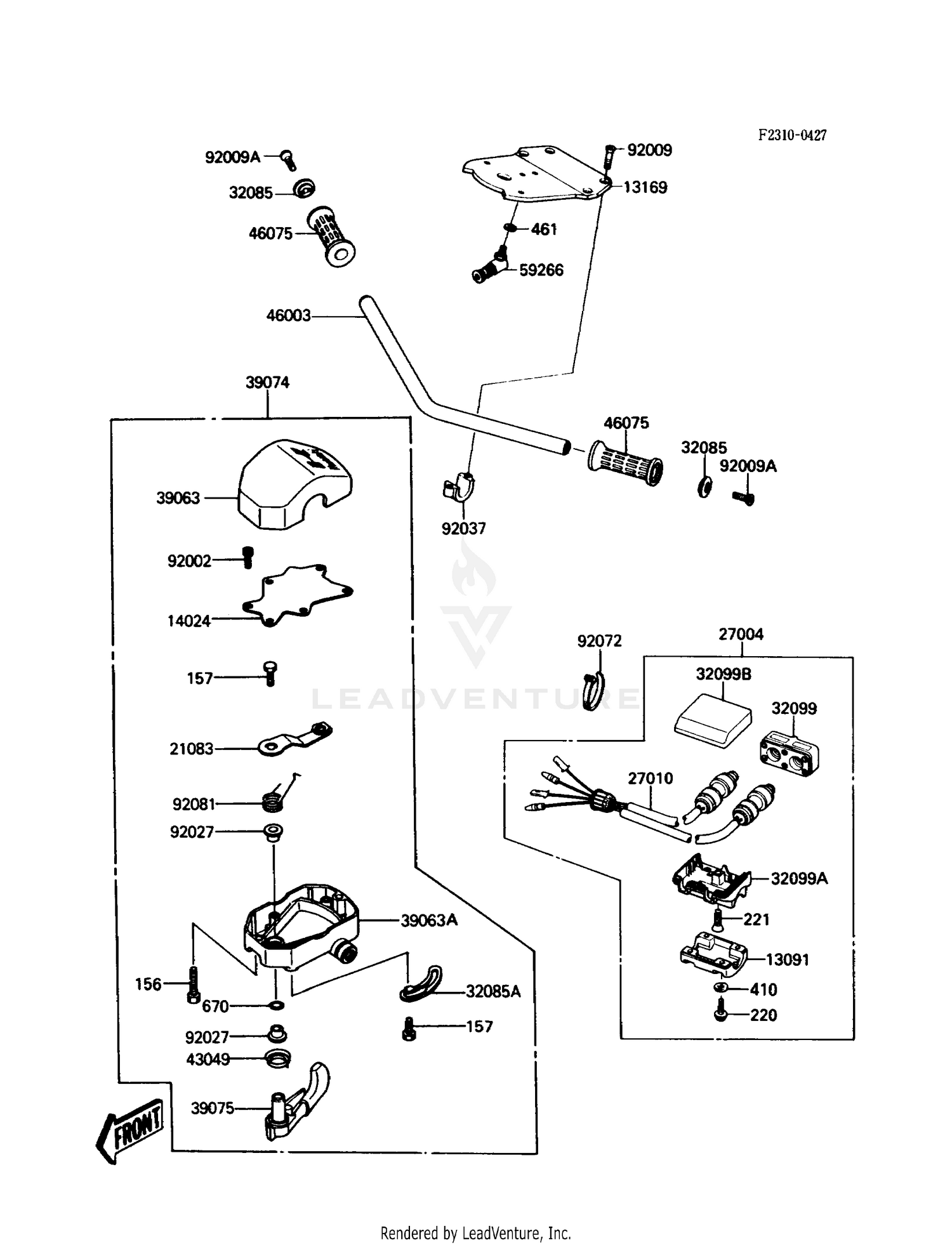

| Ref | Part Number | Description |
|---|
| 156 |
156R0525 |
BOLT-WP,5X25 Price: $6.88 |
| 157 |
157R0512 |
BOLT-WSP,5X12 Price: $3.70 |
| 220 |
220R0520 |
SCREW-PAN-CROS,5X20 Price: $4.72 |
| 221 |
221R0625 |
SCREW-CSK-CROS,6X25 Price: $4.45 |
| 410 |
410S0500 |
W-PLAIN-S,5MM Price: $1.59 |
| 461 |
461S0600 |
WASHER-SPRING,6MM Price: $1.07 |
| 13091 |
13091-3726 |
HOLDER,SWITCH Price: $27.50 |
| 13169 |
13169-3004 |
PLATE,HANDLEBAR Price: $110.24 |
| 14024 |
14024-3701 |
COVER,THROTTLE LEVER Price: $34.48 |
| 21083 |
21083-3701 |
ARM,THROTTLE LEVER Price: $15.65 |
| 27004 |
27004-3704 |
SWITCH-ASSY Price: $270.59 |
| 27010 |
27010-3707 |
SWITCH,STOP&START Price: $220.10 |
| 32085 |
32085-3705 |
STOPPER Price: $4.83 |
| 32085A |
32085-3709 |
STOPPER Price: $10.28 |
| 32099 |
32099-3724 |
CASE,FR Price: $40.34 |
| 32099A |
32099-3725 |
CASE,LWR,SWITCH Price: $46.93 |
| 32099B |
32099-3860 |
CASE,UPP,SWITCH This part replaces 32099-3726. Price: $34.87 |
| 39063 |
39063-3703 |
HOUSING-CONTROL,UPP Price: $48.07 |
| 39063A |
39063-3707 |
HOUSING-CONTROL,LWR Price: $67.02 |
| 39074 |
39074-3711 |
LEVER-ASSY-THROTTLE Price: $226.26 |
| 39075 |
39075-3704 |
LEVER-THROTTLE Price: $64.77 |
| 43049 |
43049-3701 |
PACKING,THROTTLE LEVE Price: $7.69 |
| 46003 |
46003-3703 |
HANDLE Price: $130.61 |
| 46075 |
46075-3713 |
GRIP,HANDLEBAR Price: $29.41 |
| 59266 |
59266-3707 |
JOINT-BALL This part replaces 59266-3701. Price: $66.16 |
| 92002 |
92002-3751 |
BOLT,SOCKET,3X10 Price: $5.46 |
| 92009 |
92009-3701 |
SCREW,8X22 Price: $7.49 |
| 92009A |
92009-3703 |
SCREW,6X16 Price: $4.31 |
| 92027 |
92027-3704 |
COLLAR,THROTTLE LEVER Price: $4.51 |
| 92037 |
92037-503 |
CLAMP,HANDLEBAR Price: $16.01 |
| 92072 |
92072-031 |
BAND,L=149 Price: $5.00 |
| 92081 |
92081-3702 |
SPRING,THROTTLE LEVER Price: $6.52 |
