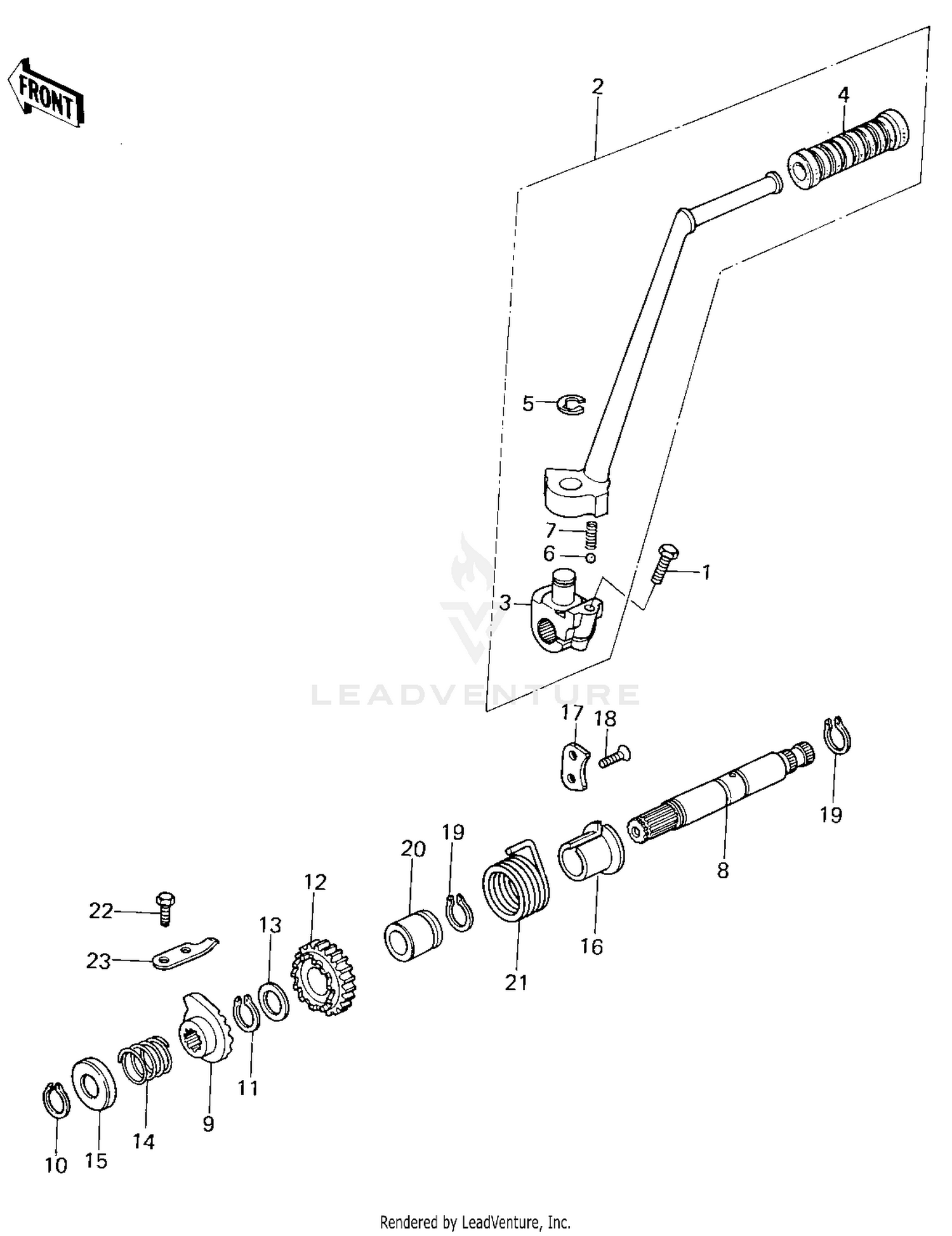

| Ref | Part Number | Description |
|---|
| 1 |
92001-1577 |
BOLT,FLANGED,8X35 Price: $5.00 |
| 2 |
13064-1002 |
PEDAL ASSY,KICK Price: $172.34 |
| 3 |
13061-1001 |
BOSS,KICK PEDAL Price: $30.71 |
| 4 |
92161-2388 |
DAMPER,KICK PEDAL This part replaces 13063-004. Price: $10.94 |
| 5 |
482K9000 |
CIRCLIP-TYPE-E,9MM Price: $4.39 |
| 6 |
600A0800 |
BALL-STEEL,1/4 Price: $0.62 |
| 7 |
92081-020 |
SPRING,KICK PEDAL Price: $4.26 |
| 8 |
13066-1001 |
SHAFT,KICK Price: $75.95 |
| 9 |
13078-011 |
RATCHET,KICK SHAFT Price: $108.77 |
| 10 |
480J1900 |
CIRCLIP-TYPE-C,19MM Price: $1.28 |
| 11 |
480J2000 |
CIRCLIP-TYPE-C,20MM Price: $2.71 |
| 12 |
59051-1007 |
GEAR,KICK,20T Price: $46.77 |
| 13 |
92022-112 |
WASHER,20.5X30X1,STEEL Price: $8.86 |
| 14 |
92081-104 |
SPRING RATCHET Price: $10.23 |
| 15 |
92102-008 |
CAP,KICKSTARTER Price: $6.44 |
| 16 |
13070-009 |
GUIDE,KICK SPRING Price: $10.43 |
| 17 |
13169-007 |
PLATE-DRUM LEV POSTON Price: $13.59 |
| 18 |
221AA0612 |
SCREW-CSK-CROS,6X12 This part replaces 221B0612. Price: $2.06 |
| 19 |
480J2000 |
CIRCLIP-TYPE-C,20MM Price: $2.71 |
| 20 |
92028-175 |
BUSHING,KICK SHAFT Price: $17.51 |
| 21 |
92082-006 |
SPRING,KICK RETURN Price: $34.93 |
| 22 |
112BA0614 |
BOLT-UPSET This part replaces 112G0614. Price: $2.10 |
