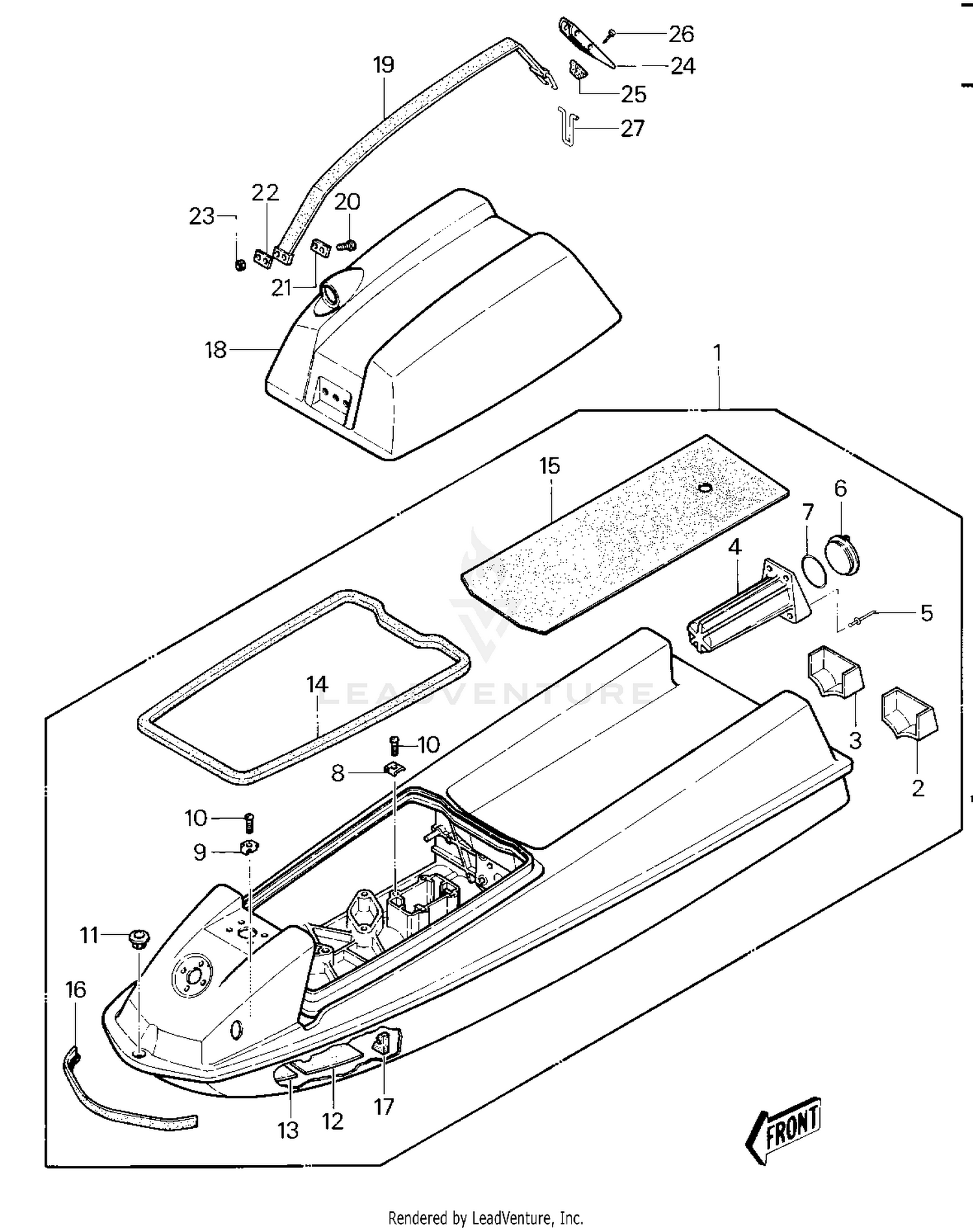

| Ref | Part Number | Description |
|---|
| 1 |
59431-3704-8C |
HULL-ASSY,JET-WHITE Price: $1,548.56 |
| 2 |
59251-3006-8C |
HULL EXTENSION-LH Price: $30.15 |
| 3 |
59251-3005-8C |
HULL EXTENSION-RH Price: $20.65 |
| 4 |
32099-5501 |
CASE-ASSY-FIRE Price: $22.74 |
| 5 |
59281-506 |
RIVET Price: $4.33 |
| 6 |
11012-3724 |
CAP,FIRE EXT.BLACK Price: $4.61 |
| 8 |
27012-501 |
HOOK Price: $4.83 |
| 9 |
27012-502 |
HOOK Price: $4.73 |
| 10 |
92011-561 |
SCREW 0.22 X 0.563 Price: $0.90 |
| 12 |
92075-521 |
DAMPER,6.0TX90X300 Price: $34.75 |
| 13 |
92075-522 |
DAMPER,3.OTX90X200 Price: $14.74 |
| 14 |
92065-539 |
GASKET,ENGINE COVER Price: $74.38 |
| 15 |
53004-3828 |
MAT This part replaces 59131-502. Price: $176.43 |
| 16 |
59201-502 |
BUMPER Price: $54.29 |
| 17 |
59346-504 |
DETENT,STEERING CABLE Price: $8.60 |
| 18 |
59456-3719-8C |
HOOD-COMP-ENGINE,JET Price: $477.02 |
| 19 |
92072-3746 |
BAND,HOOD Price: $95.06 |
| 20 |
92001-3022 |
BOLT,6X30 Price: $4.21 |
| 21 |
59086-501 |
PLATE-ENG. CVR. STRAP Price: $18.58 |
| 22 |
59086-501 |
PLATE-ENG. CVR. STRAP Price: $18.58 |
| 23 |
311R0600 |
NUT-HEX,6MM Price: $0.70 |
| 24 |
13168-3701 |
LEVER Price: $34.93 |
| 25 |
59346-503 |
DETENT-HOOD LEVER Price: $4.04 |
| 26 |
92011-562 |
SCREW 0.16X0.5 Price: $1.65 |
