| Ref | Part Number | Description |
|---|
| 1 |
511000559 |
Rear Light Support Price: $64.99 |
| 2 |
511000764 |
Rear Light Cover Price: $39.99 |
| 3 |
511000709 |
Black, Rear Bumper Price: $174.99 |
| 4 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip Price: $1.99 |
| 5 |
207663534 |
HEX. FLANGED SCREW M6 X 35 - Call your local BRP dealership Price: $1.99 |
| 6 |
205562044 |
Socket Head Screw M6 X 20, Scotch Grip Price: $2.19 |
| 7 |
234062410 |
Flat Washer 6 mm This part replaces 234062430. Price: $0.79 |
| 8 |
510005156 |
Cable Support Plate Price: $19.49 |
| 9 |
Not |
Available As Spare Part - Storage box ass'y |
| 10 |
510006243 |
Storage Box This part replaces 510004874. Price: $239.99 |
| 11 |
510006244 |
Storage Box Cover This part replaces 510004875. Price: $39.99 |
| 12 |
510005147 |
Bushing Price: $13.49 |
| 13 |
250000454 |
Torx Screw M6 X 12 Price: $4.49 |
| 14 |
510004999 |
Cover Price: $18.99 |
| 15 |
510005714 |
Lock tube This part replaces 510004951. Price: $439.99 |
| 16 |
390402200 |
Pop Rivet 3/16" Price: $0.35 |
| 17 |
605452114 |
Plug Price: $9.39 |
| 18 |
269700109 |
Latch Ass'y Price: $25.99 |
| 19 |
510005072 |
Puller Price: $21.99 |
| 20 |
510005698 |
Lock Pin Cover This part replaces 510005112. Price: $21.99 |
| 21 |
250000676 |
Forming Screw M5 x 16 This part replaces 732600030. Price: $1.09 |
| 22 |
510004998 |
LOCKING PLATE (FRAME) - Call your local BRP dealership Price: $59.99 |
| 23 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip Price: $1.99 |
| 24 |
605452035 |
LOCK PIN - Call your local BRP dealership Price: $24.99 |
| 25 |
233261416 |
Elastic Flange Nut M6 X 1.0 Price: $2.19 |
| 26 |
510005044 |
Lock Pin Guide Price: $16.49 |
| 27 |
510004876 |
FASTENER PIN - Call your local BRP dealership Price: $15.49 |
| 28 |
250000135 |
Hex. Nut M6 Price: $0.53 |
| 29 |
20117 |
Washer This part replaces M20117. Price: $6.49 |
| 30 |
232561414 |
Elastic Stop Nut M6 This part replaces M33010. Price: $0.57 |
| 31 |
293750070 |
Seat Retainer Cable This part replaces M546777. Price: $13.49 |
| 32 |
390402200 |
Pop Rivet 3/16" Price: $0.35 |
| 33 |
510005043 |
Foam Price: $71.99 |

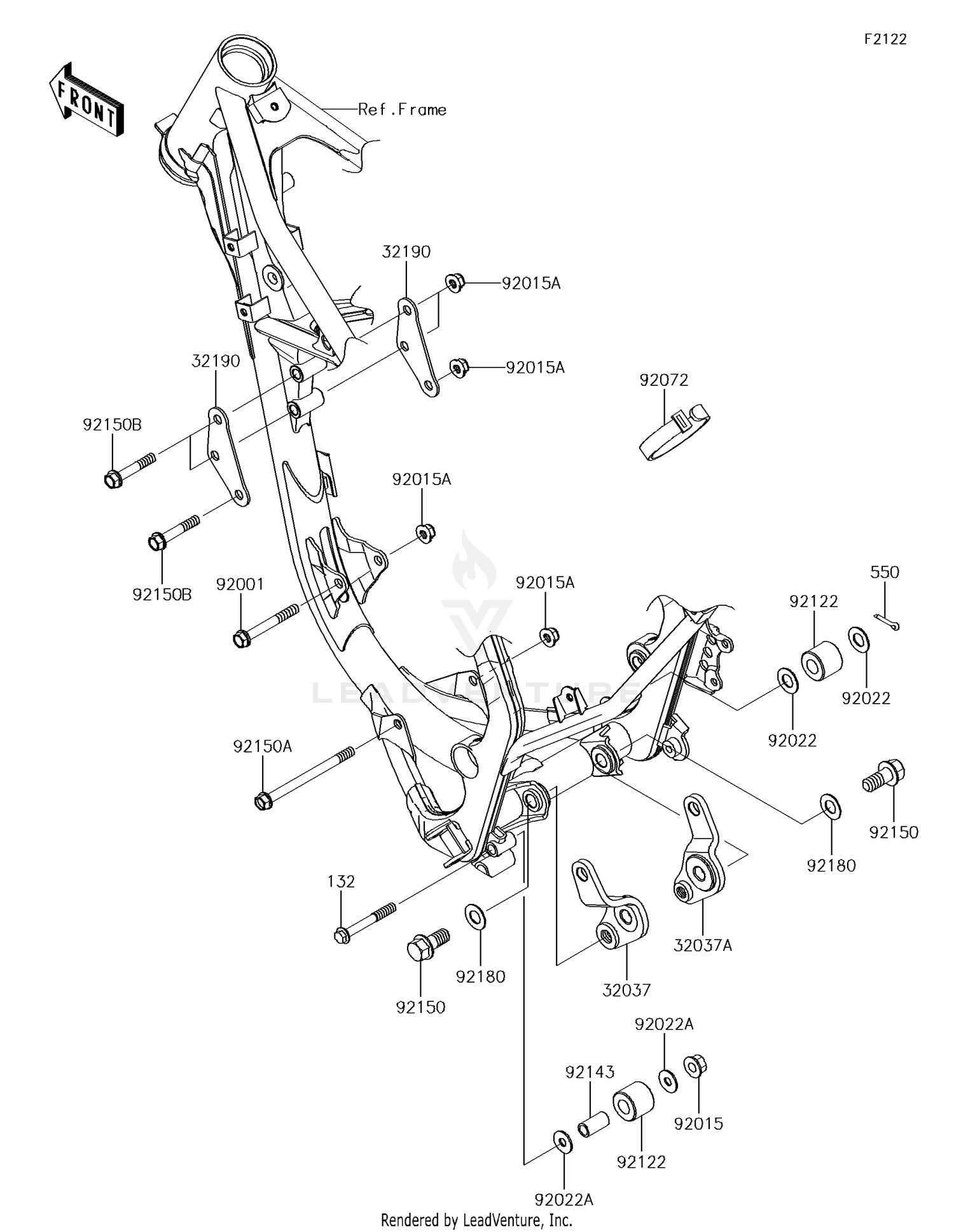

| 132 |
132BA0860 |
BOLT-FLANGED-SMALL,8X60 Price: $5.05 |
| 550 |
550AA2518 |
PIN-COTTER,2.5X18 Price: $0.59 |
| 32037 |
32037-1552 |
BRACKET-SHOCKABSORBER Price: $47.86 |
| 32037A |
32037-1553 |
BRACKET-SHOCKABSORBER Price: $47.86 |
| 32190 |
32190-1119 |
BRACKET-ENGINE,HEAD Price: $18.44 |
| 92001 |
92002-1215 |
BOLT,HEX HEAD 8X63 This part replaces 92001-1006. Price: $8.76 |
| 92015 |
92015-1406 |
NUT,FLANGED,8MM Price: $4.45 |
| 92015A |
92015-1432 |
NUT,8MM Price: $6.57 |
| 92022 |
92022-107 |
WASHER Price: $2.70 |
| 92022A |
92022-1561 |
WASHER,8.5X20X1.6 Price: $4.31 |
| 92072 |
92072-1293 |
BAND,L=140 Price: $7.11 |
| 92122 |
92122-1213 |
ROLLER,CHAIN GUIDE Price: $12.53 |
| 92143 |
92143-1432 |
COLLAR,9.5X12.7X25 Price: $7.34 |
| 92150 |
92150-1359 |
BOLT,FLANGED,12X27 Price: $7.84 |
| 92150A |
92150-1482 |
BOLT,FLANGED,8X105 Price: $9.91 |
| 92150B |
92150-1487 |
BOLT,FLANGED,8X45 Price: $6.57 |
