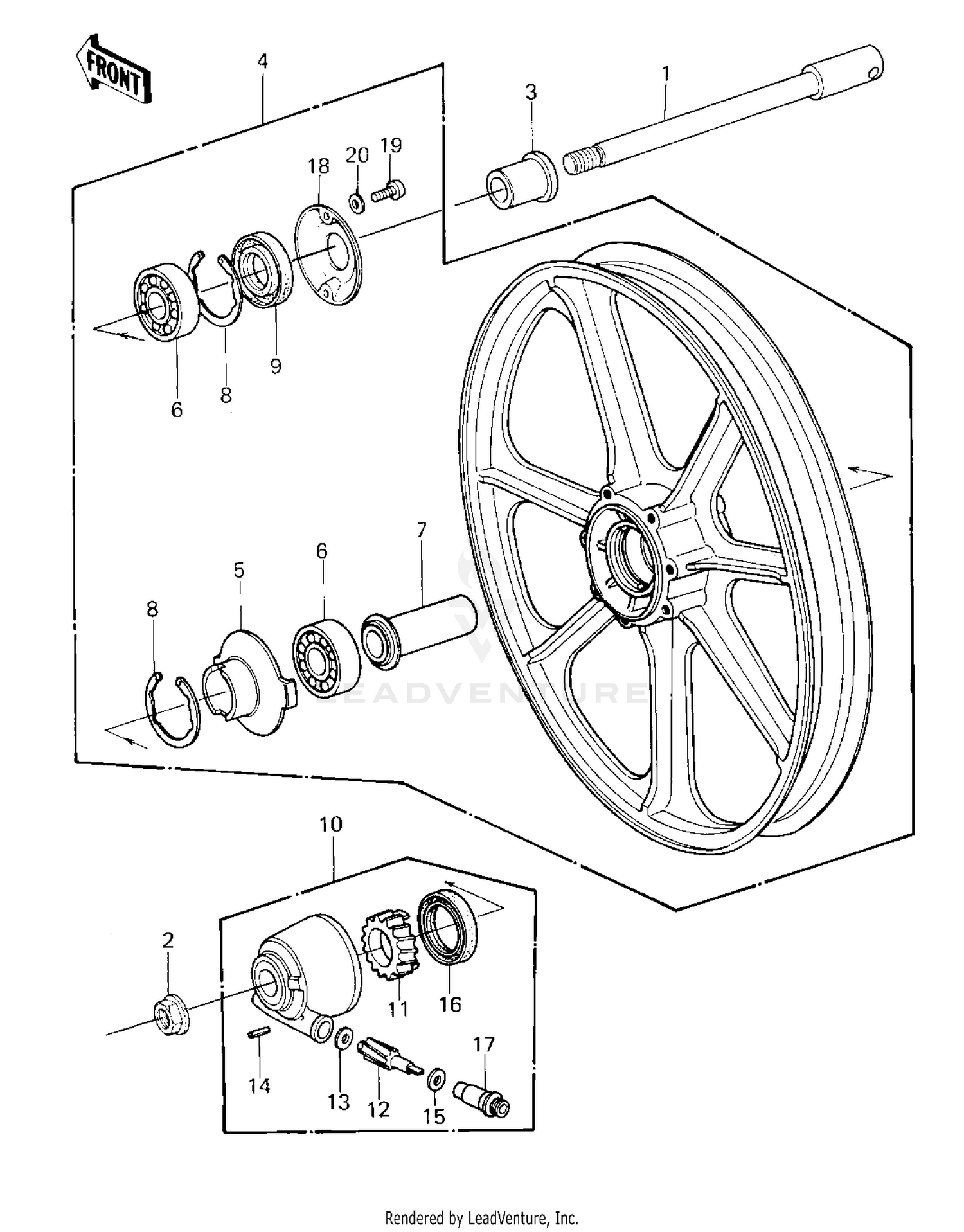

| Ref | Part Number | Description |
|---|
| 1 |
41068-1009 |
AXLE,FRONT,L=204M/M Price: $64.68 |
| 2 |
92015-1407 |
NUT,14MM Price: $9.91 |
| 3 |
92027-1225 |
COLLAR,FR AXLE L=30MM Price: $17.60 |
| 4 |
41073-1080-21 |
WHEEL-ASSY,FR,F.BLACK Price: $547.07 |
| 5 |
41064-1006 |
RECEIVER-SPEEDOMETER Price: $14.92 |
| 6 |
601B6302Z |
BEARING BALL #6302Z Price: $27.38 |
| 7 |
92027-1505 |
COLLAR,15.2X22X55 This part replaces 92027-1223. Price: $14.88 |
| 8 |
92033-1041 |
RING-SNAP,42MM Price: $6.16 |
| 9 |
92049-1058 |
SEAL-OIL,BJN22425 Price: $9.73 |
| 10 |
41078-1013 |
GEAR BOX ASSY, Price: $124.64 |
| 11 |
41059-026 |
GEAR-METER SCREW,26T Price: $42.53 |
| 12 |
41060-1016 |
PINION,SPEEDOMETER,9T Price: $21.74 |
| 13 |
41063-001 |
WASHER,5.1X9X0.4 Price: $4.69 |
| 14 |
41082-001 |
PIN,SPRING Price: $3.92 |
| 15 |
41063-001 |
WASHER,5.1X9X0.4 Price: $4.69 |
| 16 |
92049-1057 |
SEAL-OIL,BJN30427-C3 Price: $9.28 |
| 17 |
92087-1002 |
BUSHING-METER GEAR Price: $23.27 |
| 18 |
14025-1042 |
COVER,DUST,R.H. Price: $10.53 |
| 19 |
220AA0514 |
SCREW-PAN-CROS,5X14 This part replaces 220B0514. Price: $4.43 |
