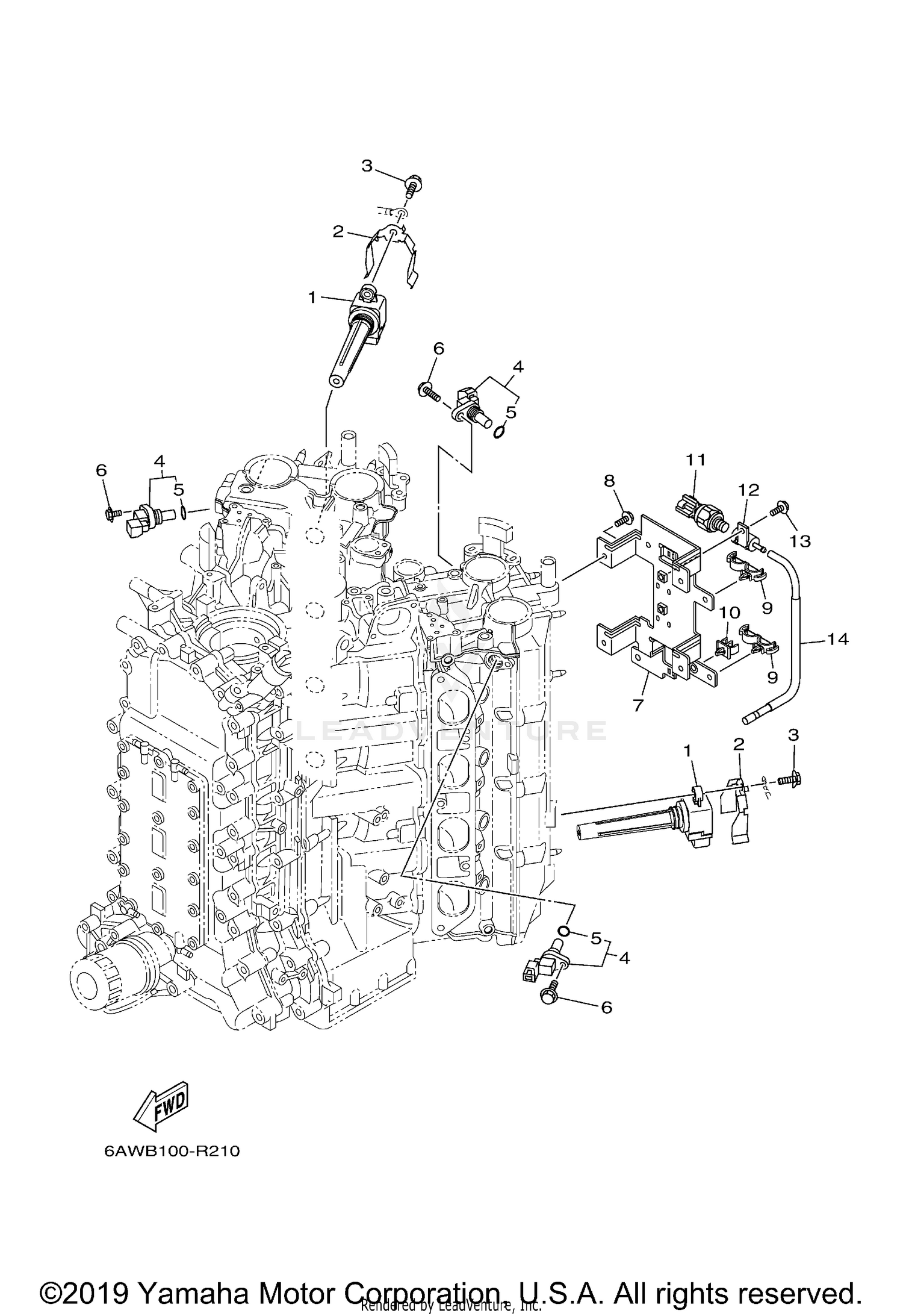

ELECTRICAL 3
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6CB-82310-02-00 | IGNITION COIL ASSY This part replaces 6CB-82310-00-00. Price: $174.50 |
| 2 | 6AW-81539-00-00 | PLATE, COIL Price: $8.15 |
| 3 | 95D95-06025-00 | BOLT, FLANGE DEEP Price: $0.95 |
| 4 | 6P2-85896-00-00 | SENSOR, CAM POSITION Price: $204.10 |
| 5 | 6P2-85075-00-00 | O-RING Price: $10.10 |
| 6 | 97E95-06520-00 | BOLT, HEXAGON W/W Price: $3.05 |
| 7 | 6AW-8366G-10-00 | BRACKET 3 Price: $56.60 |
| 8 | 95D95-06016-00 | BOLT, FLANGE DEEP Price: $0.95 |
| 9 | 90464-18246-00 | CLAMP Price: $2.44 |
| 10 | 90464-07009-00 | CLAMP Price: $2.10 |
| 11 | 6AW-8366B-10-00 | SENSOR, WATER PRES This part replaces 6AW-8366B-01-00. Price: $226.00 |
| 12 | 60V-8366D-00-00 | ADAPTOR, INPUT Price: $72.90 |
| 13 | 97E95-06516-00 | BOLT, HEXAGON W/W Price: $4.20 |
