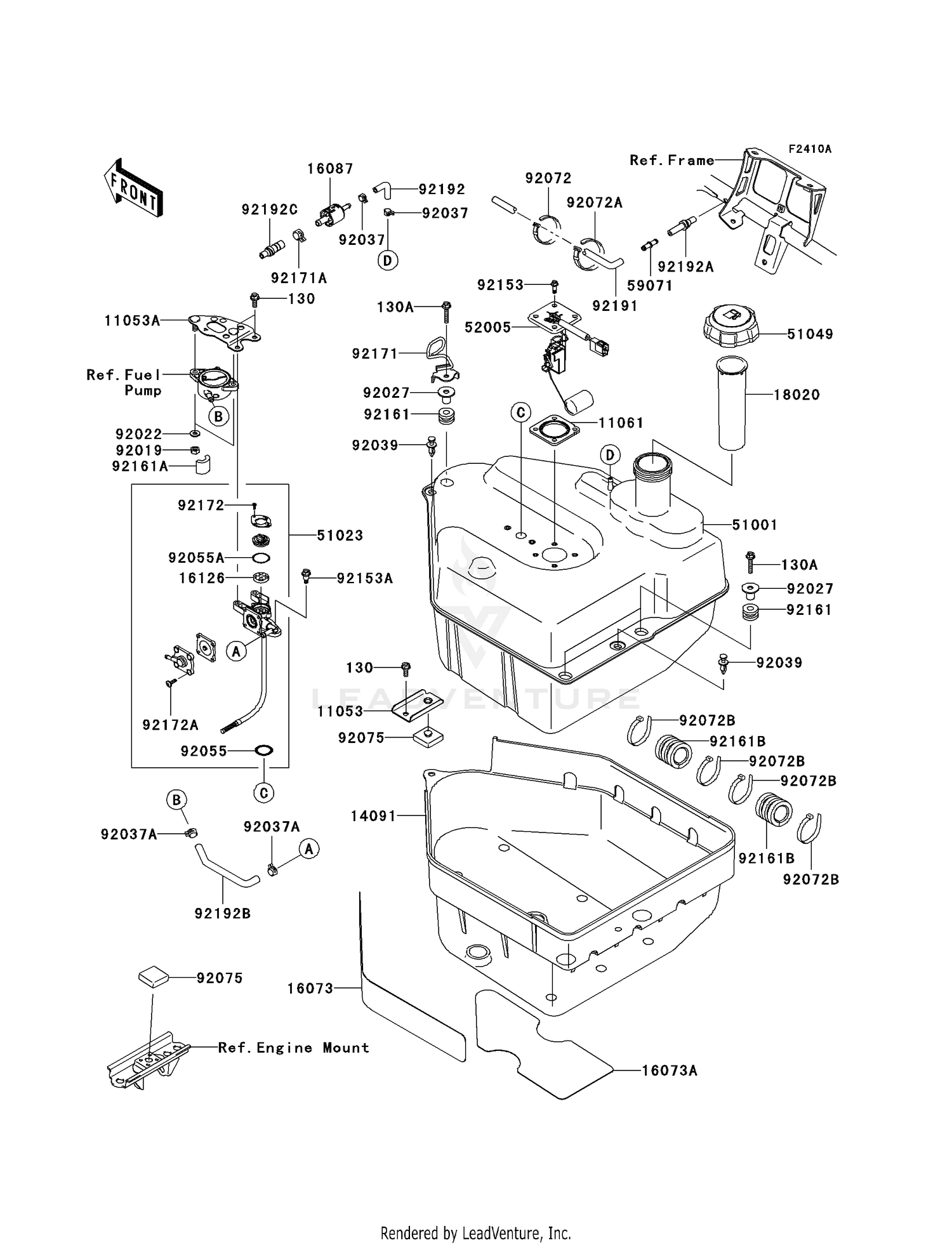

| Ref | Part Number | Description |
|---|
| 130 |
130BA0616 |
BOLT-FLANGED,6X16 This part replaces 130G0616. Price: $1.20 |
| 11053 |
11053-0936 |
BRACKET,FUEL TANK,TOP Price: $3.62 |
| 11053A |
11053-1247 |
BRACKET,FUEL PUMP Price: $8.03 |
| 11061 |
11061-0071 |
GASKET,FUEL GAUGE Price: $23.75 |
| 14091 |
14092-0186 |
COVER,FUEL TANK,LWR This part replaces 14091-0608. Price: $41.32 |
| 16073 |
16073-0932 |
INSULATOR,FUEL TANK COVER This part replaces 16073-0033. Price: $7.01 |
| 16073A |
16073-0925 |
INSULATOR,FUEL TANK COVER,LWR This part replaces 16073-0034. Price: $8.10 |
| 16087 |
16087-0002 |
VALVE-CHECK Price: $49.02 |
| 16126 |
16126-0027 |
VALVE Price: $6.68 |
| 18020 |
18020-0008 |
BAFFLE,FUEL TANK Price: $10.54 |
| 51001 |
51001-0198 |
TANK-COMP-FUEL This part replaces 51001-0058. Price: $225.63 |
| 51023 |
51023-0022 |
TAP-ASSY,FUEL Price: $139.71 |
| 51049 |
51049-1128 |
CAP-TANK,FUEL Price: $68.82 |
| 52005 |
52005-0011 |
GAUGE,FUEL Price: $208.51 |
| 59071 |
59071-3717 |
JOINT Price: $3.55 |
| 92019 |
92019-008 |
NUT,LOCK,6MM Price: $4.26 |
| 92022 |
92022-2373 |
WASHER,6.2X15X1.2 Price: $0.43 |
| 92027 |
92027-1847 |
COLLAR,L=16.1 Price: $6.22 |
| 92037 |
92037-1461 |
CLAMP,TUBE Price: $3.88 |
| 92037A |
92037-1505 |
CLAMP,TUBE Price: $4.76 |
| 92039 |
92039-0776 |
RIVET This part replaces 92039-1229. Price: $1.19 |
| 92055 |
92055-0081 |
RING-O,FUEL TAP Price: $8.12 |
| 92055A |
92055-0111 |
RING-O Price: $5.33 |
| 92072 |
92072-031 |
BAND,L=149 Price: $5.00 |
| 92072A |
92072-056 |
BAND,L=186 Price: $5.00 |
| 92072B |
92072-1239 |
BAND,L=188 Price: $1.73 |
| 92075 |
92075-1882 |
DAMPER Price: $8.10 |
| 92153 |
92153-0361 |
BOLT,FLANGED,5MM Price: $4.18 |
| 92153A |
92153-0824 |
BOLT,6MM Price: $4.80 |
| 92161 |
92161-0106 |
DAMPER Price: $1.73 |
| 92161A |
92161-0125 |
DAMPER,FUEL PUMP Price: $5.92 |
| 92161B |
92161-1111 |
DAMPER,FUEL TANK,RR Price: $6.37 |
| 92171 |
92171-0380 |
CLAMP,FUEL TUBE Price: $13.58 |
| 92171A |
92171-0515 |
CLAMP Price: $6.38 |
| 92172 |
92172-0259 |
SCREW,3X6 Price: $3.39 |
| 92172A |
92172-0260 |
SCREW,4X15 Price: $3.55 |
| 92191 |
92191-1384 |
TUBE,CANISTER-SEPARAT Price: $15.08 |
| 92192 |
92192-0067 |
TUBE,FUEL TANK-CHECK VALVE Price: $3.87 |
| 92192A |
92192-0068 |
TUBE,FRAME PIPE-CHECK VALVE Price: $10.90 |
| 92192B |
92192-0126 |
TUBE,FUEL Price: $7.76 |
| 92192C |
92192-0128 |
TUBE,FRAME PIPE-CHECK Price: $10.95 |
