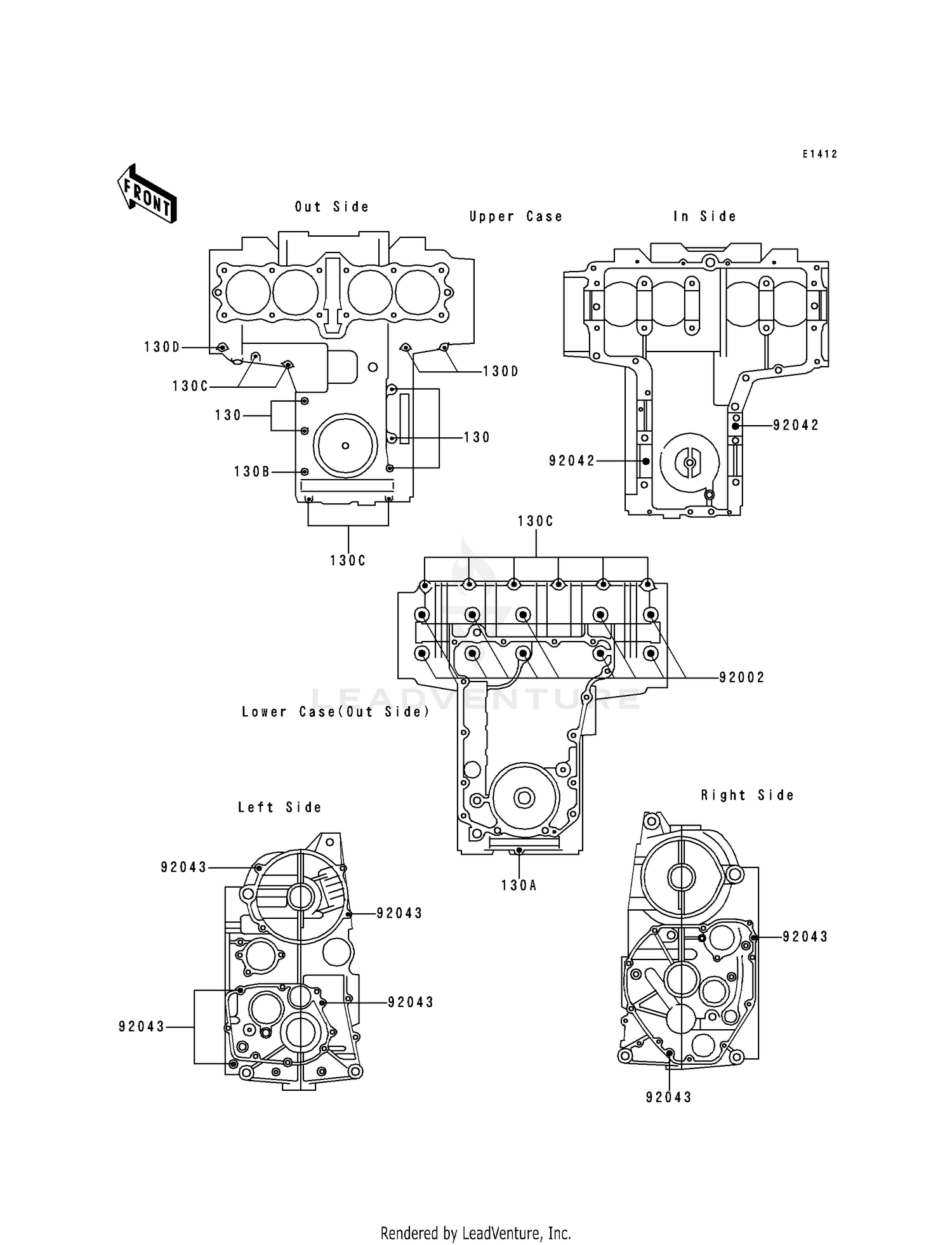

CRANKCASE BOLT PATTERN
Parts (7)
| Ref | Part Number | Description |
|---|---|---|
| 130 | 130CD06100 | BOLT-FLANGED This part replaces 130Y06100. Price: $8.72 |
| 130A | 92002-1142 | BOLT,6X105 This part replaces 130Y06105. Price: $6.18 |
| 130B | 130BD06115 | BOLT-FLANGED This part replaces 130Y06115. Price: $6.61 |
| 130C | 130BD0640 | BOLT-FLANGED This part replaces 130Y0640. Price: $5.23 |
| 130D | 130BD0650 | BOLT-FLANGED This part replaces 130Y0650. Price: $5.23 |
| 92002 | 92002-1077 | BOLT,8X95 Price: $11.07 |
| 92042 | 92043-1690 | PIN,6X16 This part replaces 92042-016. Price: $5.00 |
