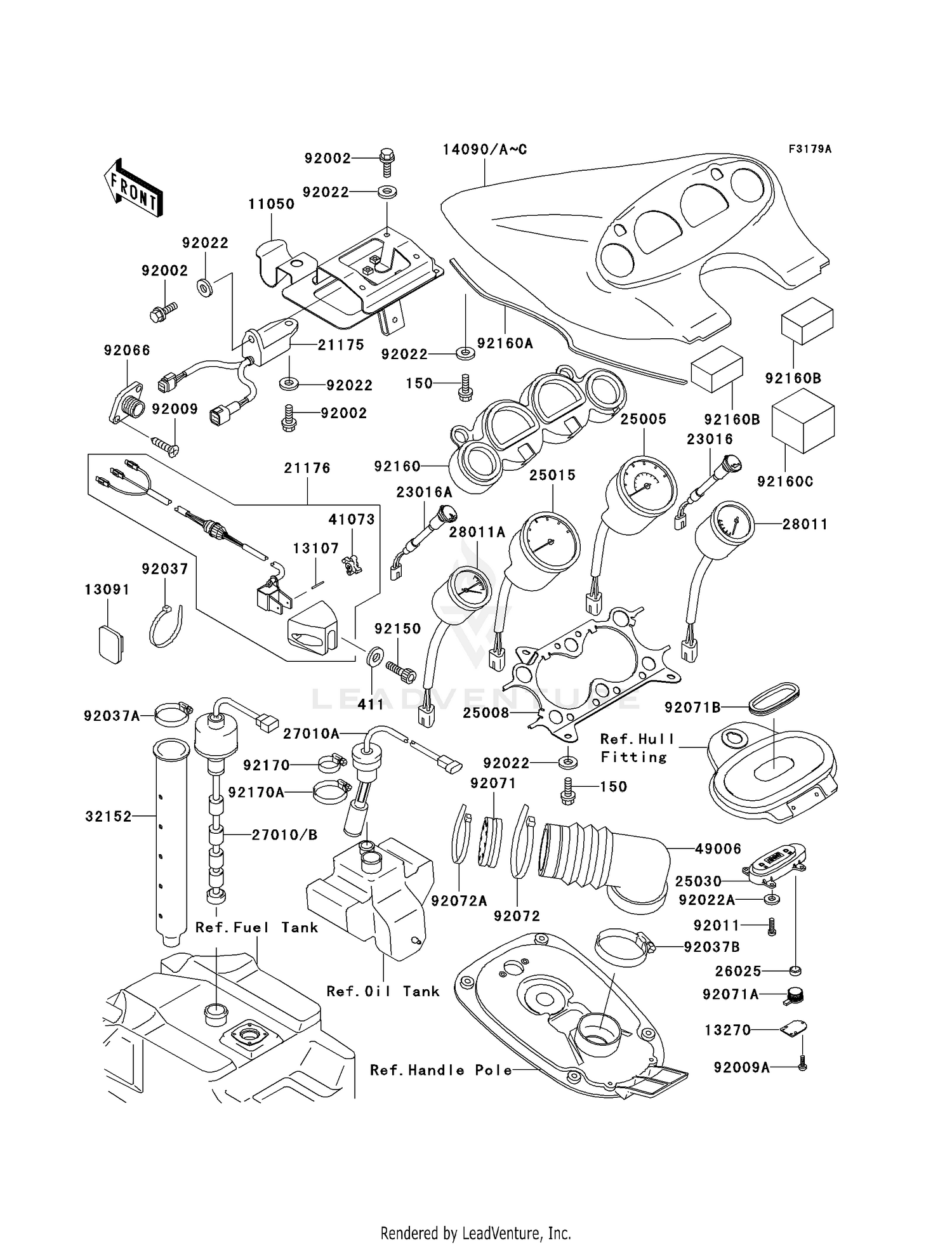

| Ref | Part Number | Description |
|---|
| 150 |
150R0614 |
BOLT-WS,6X14 Price: $5.96 |
| 411 |
411S0600 |
WASHER-PLAIN,6MM Price: $2.06 |
| 11050 |
11052-3734 |
BRACKET,UNIT MOUNT This part replaces 11050-3715. Price: $55.89 |
| 13091 |
13091-3764 |
HOLDER Price: $5.17 |
| 13107 |
13107-3743 |
SHAFT Price: $6.35 |
| 13270 |
13270-3838 |
PLATE Price: $7.66 |
| 14090B |
14090-3749-T2 |
COVER,METER,P.C.GRAY Price: $443.64 |
| 21175 |
21175-3701 |
CONTROL UNIT-ELECTRON Price: $277.07 |
| 21176 |
21176-3719 |
SENSOR, SPEEDOMETER Price: $179.10 |
| 23016 |
23016-3703 |
LAMP-ASSY,OIL LEVEL W Price: $72.37 |
| 23016A |
23016-3704 |
LAMP-ASSY,WATER TEMP Price: $72.37 |
| 25005 |
25005-3702 |
SPEEDOMETER,MPH Price: $434.03 |
| 25008 |
25008-3705 |
BRACKET-METER Price: $96.39 |
| 25015 |
25015-3702 |
TACHOMETER,X1000R/MIN Price: $403.09 |
| 25030 |
25030-3704-6Z |
CLOCK,F.BLACK Price: $290.52 |
| 27010 |
27010-3771 |
SWITCH,FUEL LEVEL This part replaces 27010-3750. Price: $339.52 |
| 27010A |
27010-3784 |
SWITCH,OIL LEVEL This part replaces 27010-3754. Price: $173.79 |
| 28011 |
28011-3708 |
METER,FUEL Price: $254.23 |
| 28011A |
28011-3718 |
METER,TRIM Price: $224.32 |
| 32152 |
32152-3734 |
PIPE,FUEL LEVEL SWITC Price: $59.87 |
| 41073 |
41073-3701 |
WHEEL-ASSY,PADDLE Price: $16.84 |
| 49006 |
49006-3715 |
BOOT, HARNESS Price: $12.18 |
| 92002 |
92002-3755 |
BOLT,6X20 Price: $4.69 |
| 92009 |
92009-3755 |
SCREW Price: $2.55 |
| 92009A |
92009-3826 |
SCREW,TAPPING,2X8 Price: $3.30 |
| 92011 |
92011-562 |
SCREW 0.16X0.5 Price: $1.65 |
| 92022 |
92022-3710 |
WASHER,6.5X20X1.5 Price: $3.65 |
| 92022A |
92022-563 |
WASHER Price: $1.13 |
| 92037 |
92037-1173 |
CLAMP Price: $3.49 |
| 92037A |
92037-1596 |
CLAMP Price: $3.79 |
| 92037B |
92037-3711 |
CLAMP Price: $6.72 |
| 92066 |
92066-3750 |
PLUG,SPEEDOMETER SENS Price: $10.09 |
| 92071 |
92071-3803 |
GROMMET, HARNESS Price: $11.23 |
| 92071A |
92071-3813 |
GROMMET Price: $7.86 |
| 92071B |
92071-3817 |
GROMMET,CLOCK Price: $6.76 |
| 92072 |
92072-3509 |
BAND,L=292.1 Price: $2.12 |
| 92072A |
92072-3867 |
BAND,L=203.2 This part replaces 92072-3778. Price: $1.91 |
| 92150 |
92150-3823 |
BOLT Price: $4.40 |
| 92160 |
92160-3834 |
DAMPER,METER Price: $71.19 |
| 92160A |
92160-3843 |
DAMPER Price: $7.44 |
| 92160B |
92160-3859 |
DAMPER Price: $14.40 |
| 92160C |
92160-3862 |
DAMPER Price: $14.40 |
| 92170 |
92173-1401 |
CLAMP This part replaces 92170-3718. Price: $13.67 |
