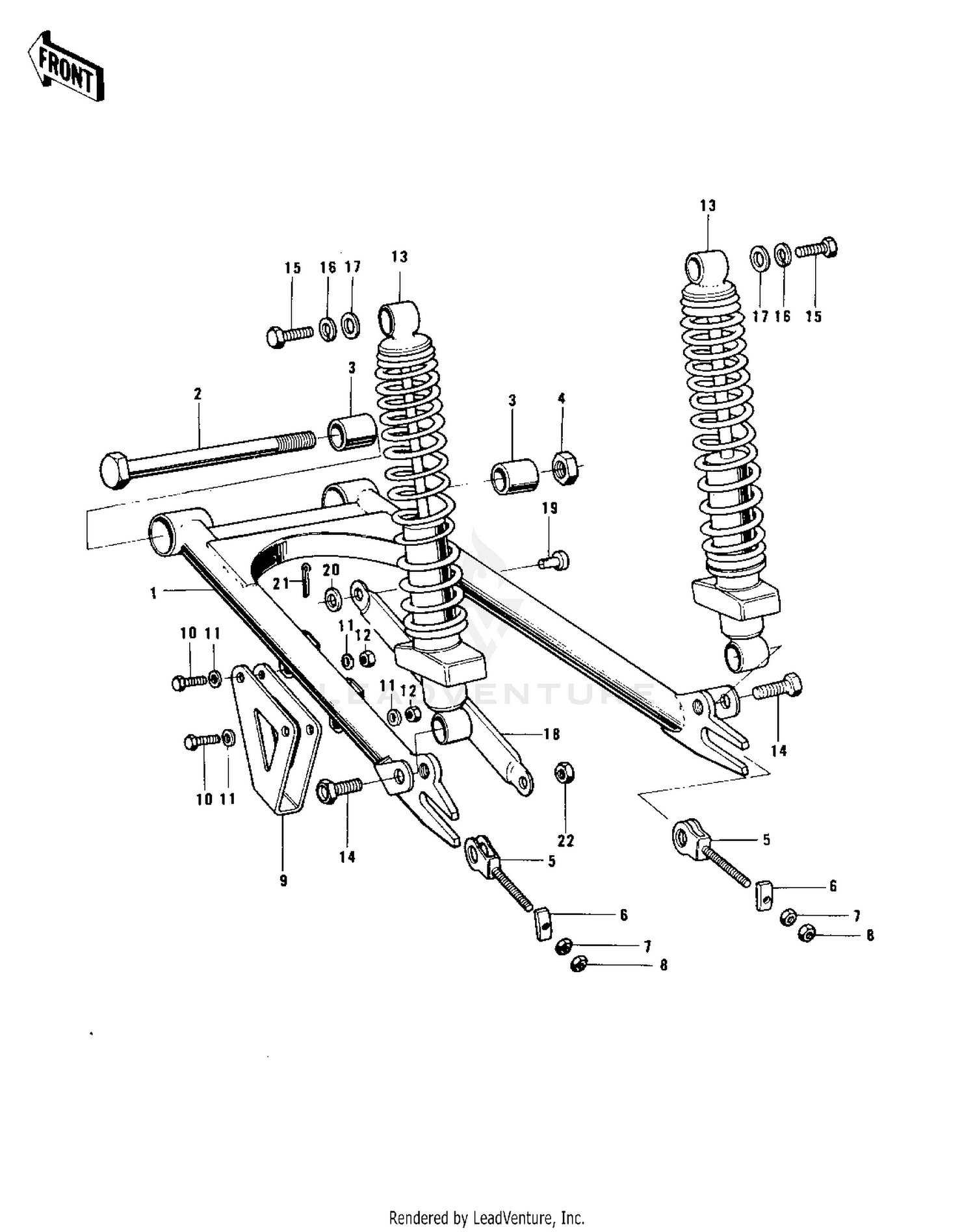

| Ref | Part Number | Description |
|---|
| 2 |
33032-042 |
SHAFT,SWING ARM PIVOT Price: $67.70 |
| 3 |
33033-012 |
BUSHING,SWING ARM Price: $10.41 |
| 4 |
92019-017 |
NUT,12MM Price: $3.85 |
| 5 |
33040-055 |
ADJUSTER,CHAIN Price: $30.45 |
| 6 |
33041-002 |
PLATE-CHAIN ADJUSTER Price: $17.31 |
| 7 |
311BA0800 |
NUT,8MM This part replaces 311G0800. Price: $4.46 |
| 8 |
92019-018 |
NUT,8MM Price: $7.24 |
| 9 |
55020-015 |
GUARD,CHAIN Price: $17.96 |
| 10 |
110G0650 |
BOLT,HEX HEAD,6X50 Price: $3.74 |
| 11 |
92200-0283 |
WASHER,6.5X20X1.6 This part replaces 92022-125. Price: $1.40 |
| 12 |
92019-019 |
NUT,6MM Price: $9.48 |
| 13 |
45014-094 |
SHOCKABSORBER,REAR Price: $116.55 |
| 14 |
92001-133 |
BOLT,HEX HEAD,12X35 Price: $4.11 |
| 15 |
112BA0612 |
BOLT-UPSET This part replaces 112G0612. Price: $1.49 |
| 16 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 17 |
92022-286 |
WASHER,PLAIN,6MM Price: $5.03 |
| 18 |
43007-040 |
TORQUE LINK,RR BRAKE Price: $9.39 |
| 19 |
92043-105 |
PIN,TORQUE LINK Price: $12.41 |
| 20 |
92022-239 |
WASHER,10.5X20X1 Price: $3.92 |
| 21 |
550AA2020 |
PIN-COTTER,2.0X20 This part replaces 550D2020. Price: $1.04 |
