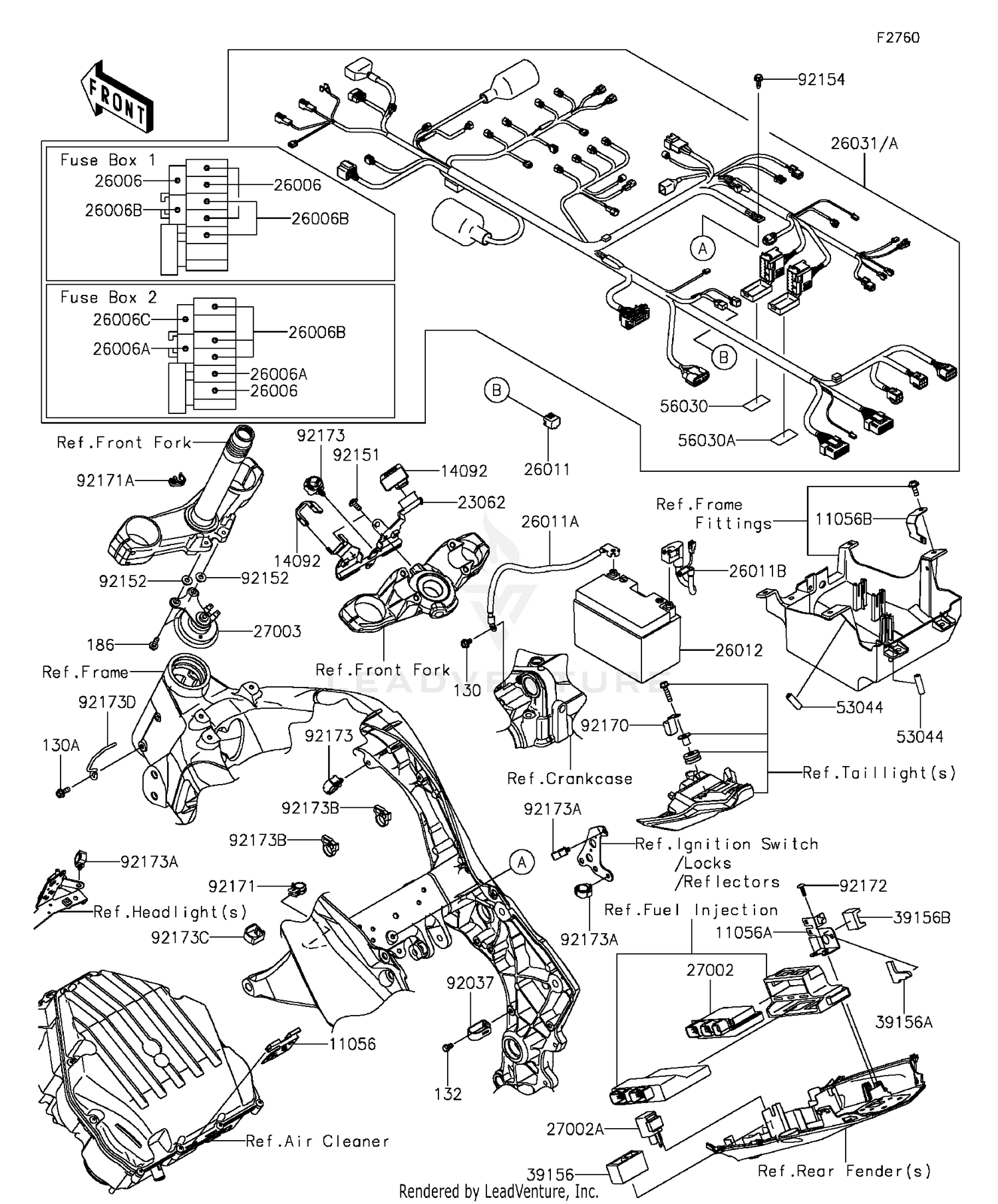

Chassis Electrical Equipment

Chassis Electrical Equipment

Parts (38)

RefPart NumberDescription
130 130BA0610 BOLT-FLANGED,6X10 Price: $1.20
130A 130BB0616 BOLT-FLANGED,6X16 Price: $2.06
132 132BA0610 BOLT-FLANGED-SMALL,6X10 Price: $1.71
11056 11056-2434 BRACKET,SPEED SENSOR Price: $8.08
11056A 11056-2531 BRACKET,RR COUPLER Price: $6.76
11056B 11056-3936 BRACKET,PUMP COUPLER Price: $4.18
14092 14092-1166 COVER,HARNESS Price: $17.20
23062 23062-0819 BRACKET-COMP,HARNESS& Price: $67.62
26006 26006-0001 FUSE,MINI BLADE,15A,BLUE Price: $6.12
26006A 26006-0020 FUSE,MINI BLADE,25A,NATURAL Price: $6.57
26006B 26006-0055 FUSE,MINI BLADE,7.5A,BROWN Price: $6.57
26006C 26006-1080 FUSE,MINI BLADE,30A,GREEN Price: $4.87
26011 26011-0275 WIRE-LEAD,CONNECTOR COVER Price: $14.13
26011A 26011-0822 WIRE-LEAD,BATTERY(-) Price: $29.87
26011B 26011-0839 WIRE-LEAD,BATTERY(+) Price: $58.54
26012 26012-1529 BATTERY,YT12A-BS,12V This part replaces 26012-0556. Price: $174.88
27002 27002-0050 RELAY-ASSY This part replaces 27002-0007. Price: $143.14
27002A 27002-1097 RELAY-ASSY,SIGNAL LAMP Price: $47.41
27003 27003-0096 HORN Price: $70.00
39156 39156-1735 PAD Price: $4.06
39156A 39156-1803 PAD Price: $3.56
39156B 39156-1804 PAD Price: $2.99
53044 53044-0001 TRIM,L=30 Price: $2.80
56030 56030-0830 LABEL,FUSE BOX1 Price: $3.29
56030A 56030-0857 LABEL,FUSE BOX2 Price: $3.29
92037 92037-2014 CLAMP,CABLE,STEEL SHEET Price: $1.97
92151 92151-1654 BOLT,SOCKET,6X14 Price: $1.83
92152 92152-0286 COLLAR,6.3X8.3X16 Price: $5.65
92154 92154-0551 BOLT,FLANGED,6X16 Price: $1.63
92170 92170-1925 CLAMP Price: $2.40
92171 92171-1722 CLAMP,EDGE CLIP Price: $8.05
92171A 92171-1819 CLAMP,BRAKE HOSE Price: $5.54
92172 92172-0238 SCREW,TAPPING,5X16 Price: $1.00
92173 92173-0861 CLAMP Price: $3.02
92173A 92173-0868 CLAMP,HOLDER CLIP Price: $3.02
92173B 92173-0970 CLAMP,SNAPPER Price: $4.72
92173C 92173-1156 CLAMP,HARNESS Price: $2.51
92173D 92173-1199 CLAMP,IRON WIRE Price: $5.98
