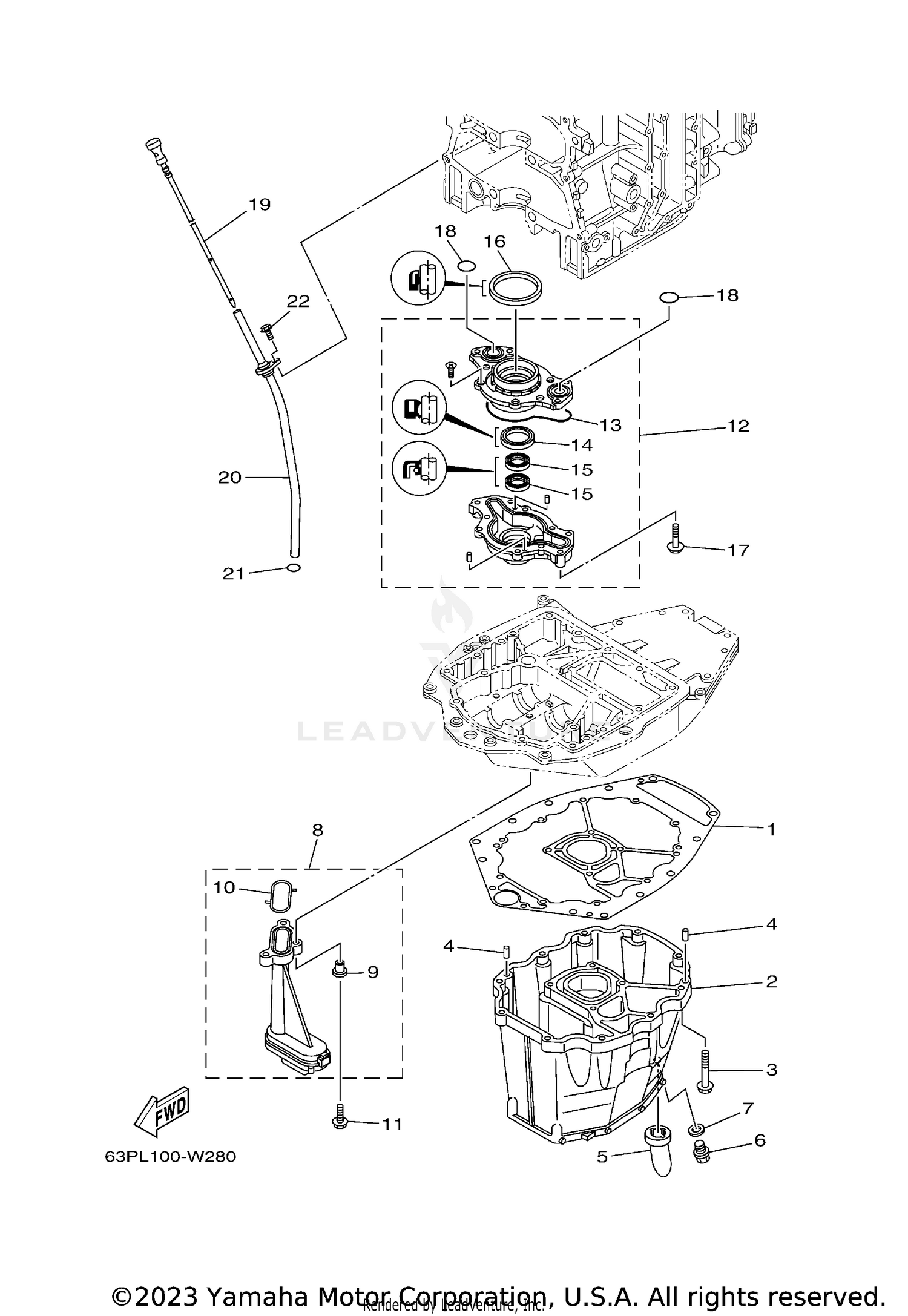

| Ref | Part Number | Description |
|---|
| 1 |
63P-15312-02-00 |
GASKET, OIL PAN Price: $84.65 |
| 2 |
63P-15311-12-CA |
OIL PAN This part replaces 63P-15311-11-00. Price: $864.55 |
| 3 |
97E75-08535-00 |
BOLT, HEXAGON W/W Price: $3.75 |
| 4 |
93608-16M16-00 |
PIN, DOWEL Price: $2.85 |
| 5 |
63P-15316-01-00 |
DAMPER 1 Price: $8.40 |
| 6 |
90340-14M06-00 |
PLUG, STRAIGHT SCREW Price: $14.20 |
| 7 |
90430-14M09-00 |
GASKET Price: $2.55 |
| 8 |
63P-13411-00-00 |
STRAINER, OIL Price: $58.45 |
| 9 |
90387-06263-00 |
COLLAR Price: $6.85 |
| 10 |
63P-13415-00-00 |
SEAL, OIL STRAINER Price: $11.35 |
| 11 |
95817-06025-00 |
BOLT,FLANGE This part replaces 95812-06025-00. Price: $1.75 |
| 12 |
63P-13300-02-00 |
OIL PUMP ASSY Price: $495.00 |
| 13 |
63P-13329-00-00 |
GASKET, PUMP COVER Price: $36.10 |
| 14 |
6AW-13119-00-00 |
OIL SEAL Price: $51.80 |
| 15 |
69J-13631-00-00 |
OIL SEAL Price: $43.25 |
| 16 |
69J-11355-00-00 |
SEAL, CYLINDER 1 Price: $28.00 |
| 17 |
97E95-06540-00 |
BOLT, HEXAGON W/W Price: $1.75 |
| 18 |
93210-25552-00 |
O-RING Price: $14.49 |
| 19 |
63P-15362-10-00 |
PLUG, OIL LEVEL Price: $39.90 |
| 20 |
63P-15377-10-00 |
GUIDE, INLET Price: $74.60 |
| 21 |
93210-19MJ3-00 |
O-RING Price: $8.15 |
