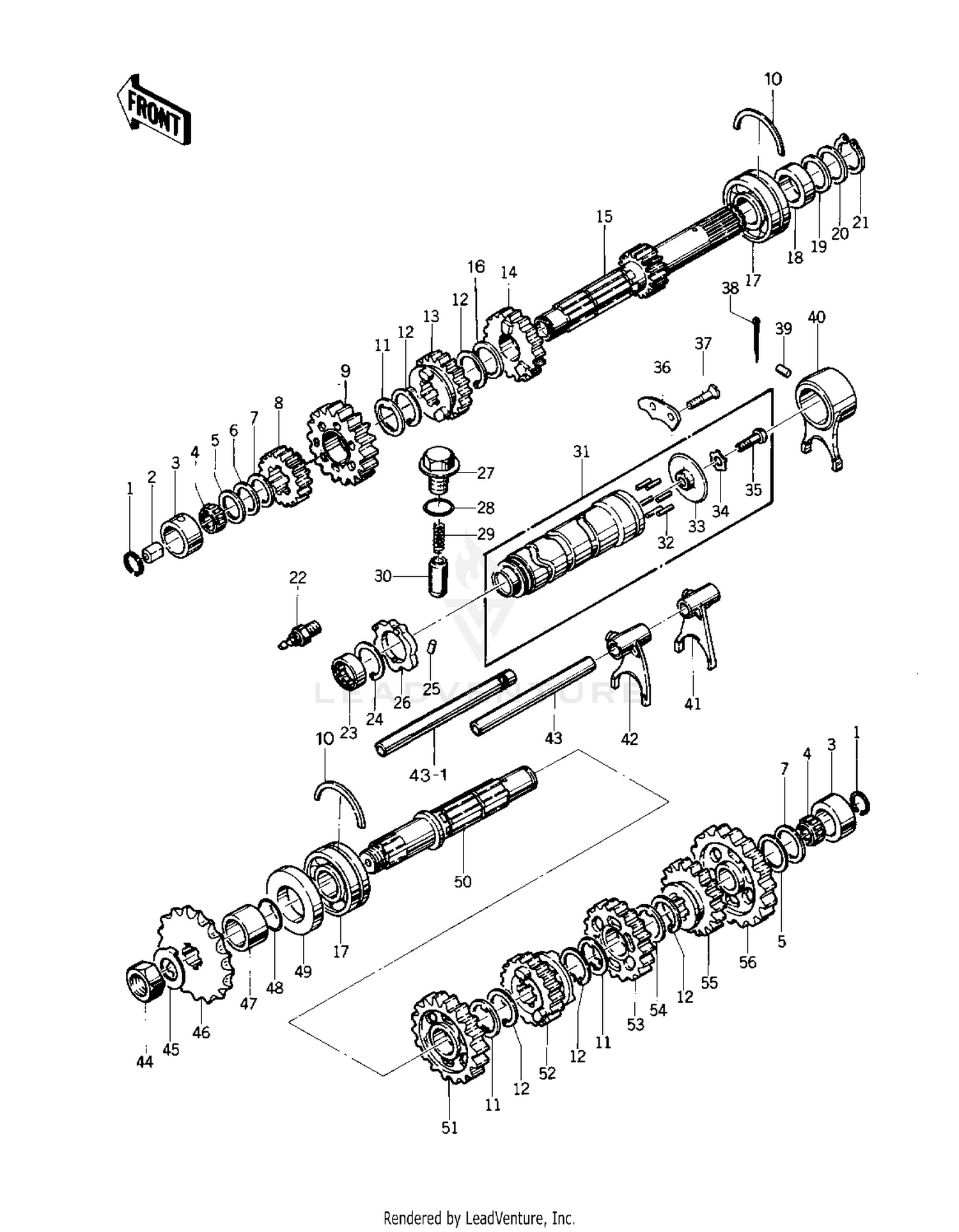

| Ref | Part Number | Description |
|---|
| 1 |
92033-015 |
RING-SNAP,20MM Price: $4.26 |
| 2 |
92028-155 |
BUSHING,DRIVE SHAFT Price: $15.01 |
| 3 |
92028-170 |
BUSHING,OUTPUT&DRIVE Price: $8.89 |
| 4 |
92046-044 |
BRG,N,20R25139 Price: $22.69 |
| 10 |
14013-004 |
RING-POSITION Price: $10.19 |
| 11 |
92024-038 |
WASHER,TOOTHED,22.5X31X0.5 Price: $6.22 |
| 12 |
92033-026 |
RING-SNAP,24MM Price: $8.79 |
| 15 |
13127-047 |
SHAFT,DRIVE Price: $111.07 |
| 16 |
92022-225 |
WASHER,25.3X32X0.5 Price: $5.52 |
| 17 |
92045-031 |
BEARING,B,5205ANX4PX Price: $67.65 |
| 18 |
92027-289 |
COLLAR Price: $12.89 |
| 21 |
92033-026 |
RING-SNAP,24MM Price: $8.79 |
| 22 |
13151-5002 |
SWITCH,NEUTRAL Price: $21.17 |
| 23 |
92046-039 |
BRG,N,24BTM3010A Price: $10.38 |
| 24 |
480J3000 |
CIRCLIP-TYPE-C,30MM Price: $6.22 |
| 25 |
610A0406 |
ROLLER,4X6 Price: $4.31 |
| 26 |
13145-1058 |
CAM-CHANGE DRUM Price: $22.72 |
| 27 |
92001-147 |
BOLT, NEUTRAL POSITON Price: $14.40 |
| 28 |
92081-112 |
SPRING Price: $6.16 |
| 29 |
92081-112 |
SPRING Price: $6.16 |
| 30 |
92043-076 |
PIN Price: $11.71 |
| 31 |
13239-014 |
DRUM ASSY,GEAR SHIFT Price: $100.19 |
| 32 |
92042-014 |
PIN,DOWEL,4X15.8 Price: $0.43 |
| 33 |
13142-016 |
PLATE,SHIFT DRUM PIN Price: $27.77 |
| 34 |
464G0600 |
WASHER LOCK 6MM Price: $2.89 |
| 35 |
220AA0614 |
SCREW-PAN-CROS,6X14 This part replaces 220B0614. Price: $1.48 |
| 36 |
13169-010 |
PLATE,SHIFT DRUM PSTN Price: $7.58 |
| 37 |
212B0616 |
SCREW CNTSNK HD 6X16 Price: $1.71 |
| 38 |
550AA3020 |
PIN-COTTER,3.0X20 This part replaces 550D3020. Price: $1.78 |
| 39 |
92042-021 |
DOWEL PIN,8X18 Price: $11.51 |
| 40 |
13140-068 |
SHIFT FORK,4TH&TOP Price: $70.61 |
| 41 |
13140-066 |
SHIFT FORK,LOW Price: $46.78 |
| 42 |
13140-067 |
SHIFT FORK,2ND 3RD Price: $55.37 |
| 44 |
92016-028 |
NUT,20MM Price: $9.91 |
| 45 |
92024-044 |
WASHER,LOCK,20MM Price: $13.52 |
| 46 |
13144-1002 |
ENGINE SPROCKET,15T Price: $46.65 |
| 47 |
92027-288 |
COLLAR,ENG SPROCKET Price: $39.34 |
| 48 |
92055-035 |
RING-O Price: $5.00 |
| 49 |
92049-1506 |
SEAL-OIL,HTC 32 52 10 This part replaces 92050-024. Price: $8.17 |
| 50 |
13128-042 |
SHAFT,OUTPUT Price: $116.35 |
| 52 |
13137-031 |
TOP GEAR,OUTPUT SHAFT Price: $81.82 |
| 54 |
92024-033 |
WASHER-LOCK Price: $8.19 |
