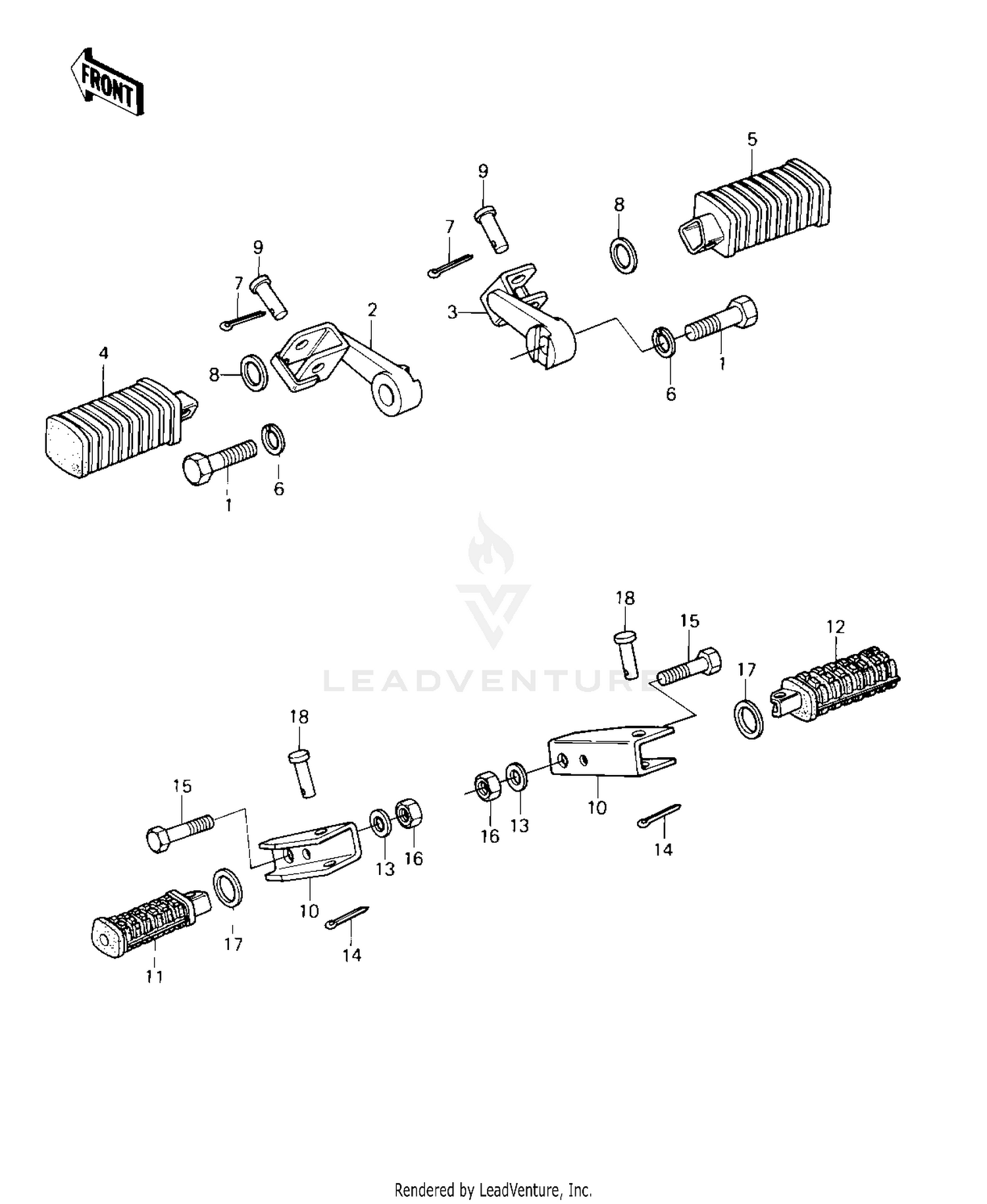

| Ref | Part Number | Description |
|---|
| 1 |
113G1225A |
BOLT,HEX HEAD,12X25 Price: $8.67 |
| 2 |
34003-1115 |
HOLDER-STEP,FR,LH Price: $48.86 |
| 3 |
34003-1116 |
HOLDER-STEP,FR,RH Price: $106.93 |
| 4 |
34027-5062 |
STEP-ASSY This part replaces 34028-1018. Price: $75.33 |
| 5 |
34027-5062 |
STEP-ASSY This part replaces 34028-1018. Price: $75.33 |
| 6 |
461DA1200 |
WASHER-SPRING,12MM This part replaces 461F1200. Price: $1.03 |
| 7 |
550D2516 |
PIN COTTER 2.5X16 Price: $2.79 |
| 8 |
92022-250 |
WASHER,25X36X2.3 Price: $5.00 |
| 9 |
92043-115 |
PIN,8X35.5 Price: $9.51 |
| 10 |
34003-1025 |
HOLDER,REAR FOOTREST Price: $34.78 |
| 11 |
34028-1009 |
STEP,FOOTREST,REAR,LH Price: $35.18 |
| 12 |
34028-1010 |
STEP,FOOTREST,REAR,RH Price: $35.18 |
| 13 |
411AA1000 |
WASHER-PLAIN,10MM This part replaces 411B1000. Price: $0.96 |
| 14 |
550AA2012 |
PIN,COTTER,2.0X12 This part replaces 550D2012. Price: $1.11 |
| 15 |
92001-1252 |
BOLT,HEX HEAD 10X35 Price: $7.65 |
| 16 |
92210-1184 |
NUT,LOCK,10MM This part replaces 92019-021. Price: $6.11 |
| 17 |
92022-181 |
WASHER-PLAIN Price: $7.33 |
