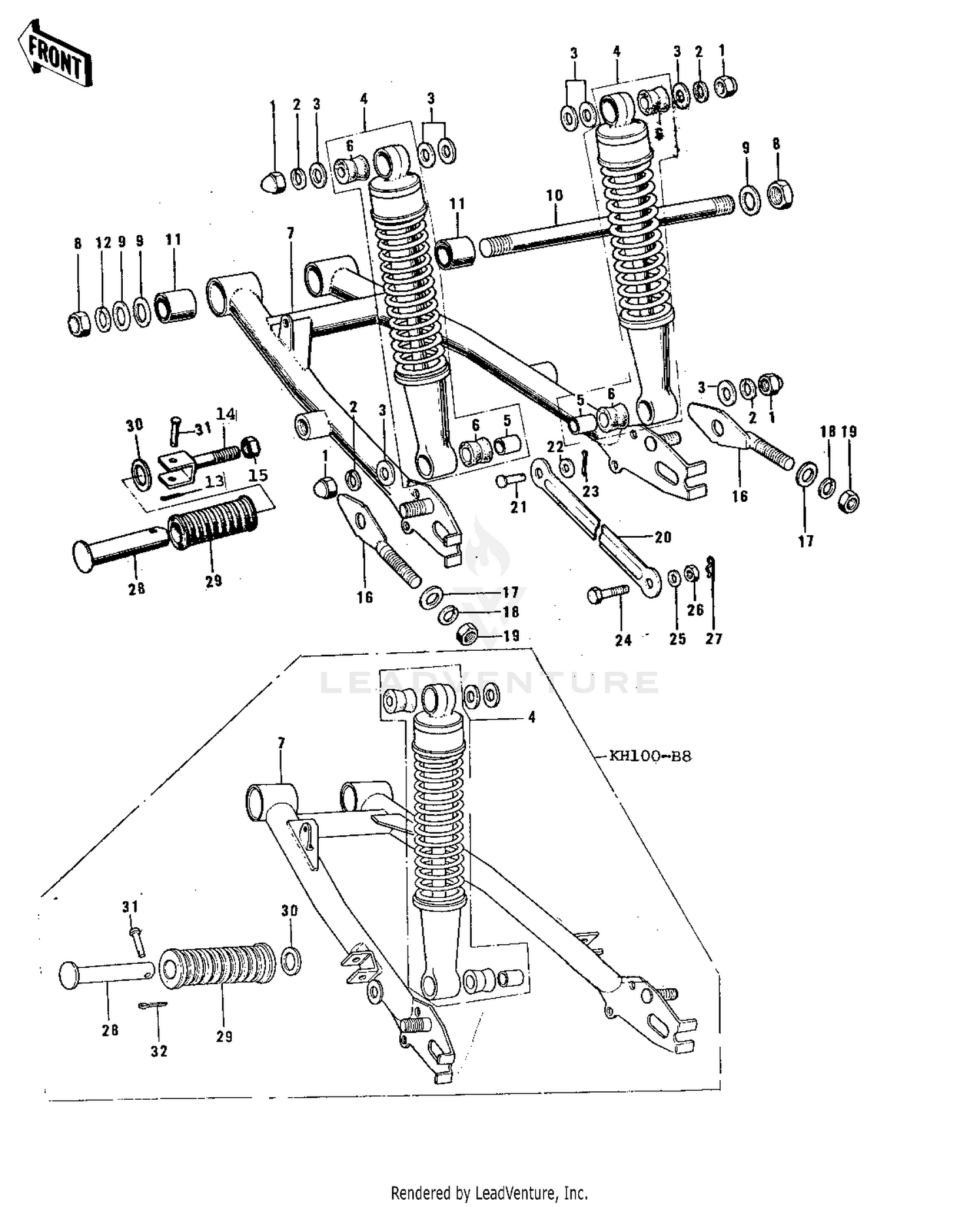

| Ref | Part Number | Description |
|---|
| 1 |
92020-014 |
NUT 12MM Price: $9.45 |
| 2 |
461DA1200 |
WASHER-SPRING,12MM This part replaces 461F1200. Price: $1.03 |
| 3 |
411AA1200 |
WASHER-PLAIN,12MM This part replaces 411B1200. Price: $0.96 |
| 4 |
45014-038 |
SHOCK ABSBR RR Price: $63.43 |
| 5 |
45016-007 |
BUSHING,SHOCK ABSORB Price: $4.03 |
| 6 |
45017-014 |
BUSHING,SHOK ABN RUB Price: $2.42 |
| 7 |
33001-023 |
ARM SWING Price: $107.47 |
| 8 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 9 |
410AA1000 |
WASHER-PLAIN-SMALL,10MM This part replaces 410B1000. Price: $0.59 |
| 10 |
33032-009 |
SHAFT SWING ARM PIVOT Price: $16.76 |
| 11 |
92092-006 |
BUSH SWING ARM SHAFT Price: $17.75 |
| 12 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 13 |
550AA2015 |
PIN-COTTER,2.0X15 This part replaces 550D2015. Price: $1.12 |
| 14 |
33028-011 |
BRACKET,REAR FOOTREST Price: $37.05 |
| 15 |
315AA1200 |
NUT-HEX-FINE This part replaces 315B1200. Price: $0.95 |
| 16 |
33040-008 |
ADJUSTER CHAIN Price: $10.48 |
| 17 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 18 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 19 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 20 |
43007-007 |
TORQUE LINK REAR BRK Price: $9.78 |
| 21 |
43009-001 |
PIN REAR TORQUE LINK Price: $7.40 |
| 22 |
410AA1000 |
WASHER-PLAIN-SMALL,10MM This part replaces 410B1000. Price: $0.59 |
| 23 |
550AA2520 |
PIN-COTTER,2.5X20 This part replaces 550D2520. Price: $1.36 |
| 24 |
92150-1872 |
BOLT,10X32 This part replaces 92003-003. Price: $6.22 |
| 25 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 26 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 27 |
554DA0800 |
PIN-SNAP This part replaces 554A0800. Price: $1.36 |
| 28 |
34028-009 |
STEP,RR Price: $26.11 |
| 29 |
92076-024 |
RUBBER,REAR FOOTREST Price: $24.87 |
| 30 |
92022-199 |
WASHER-PLAIN (OPT) Price: $11.60 |
