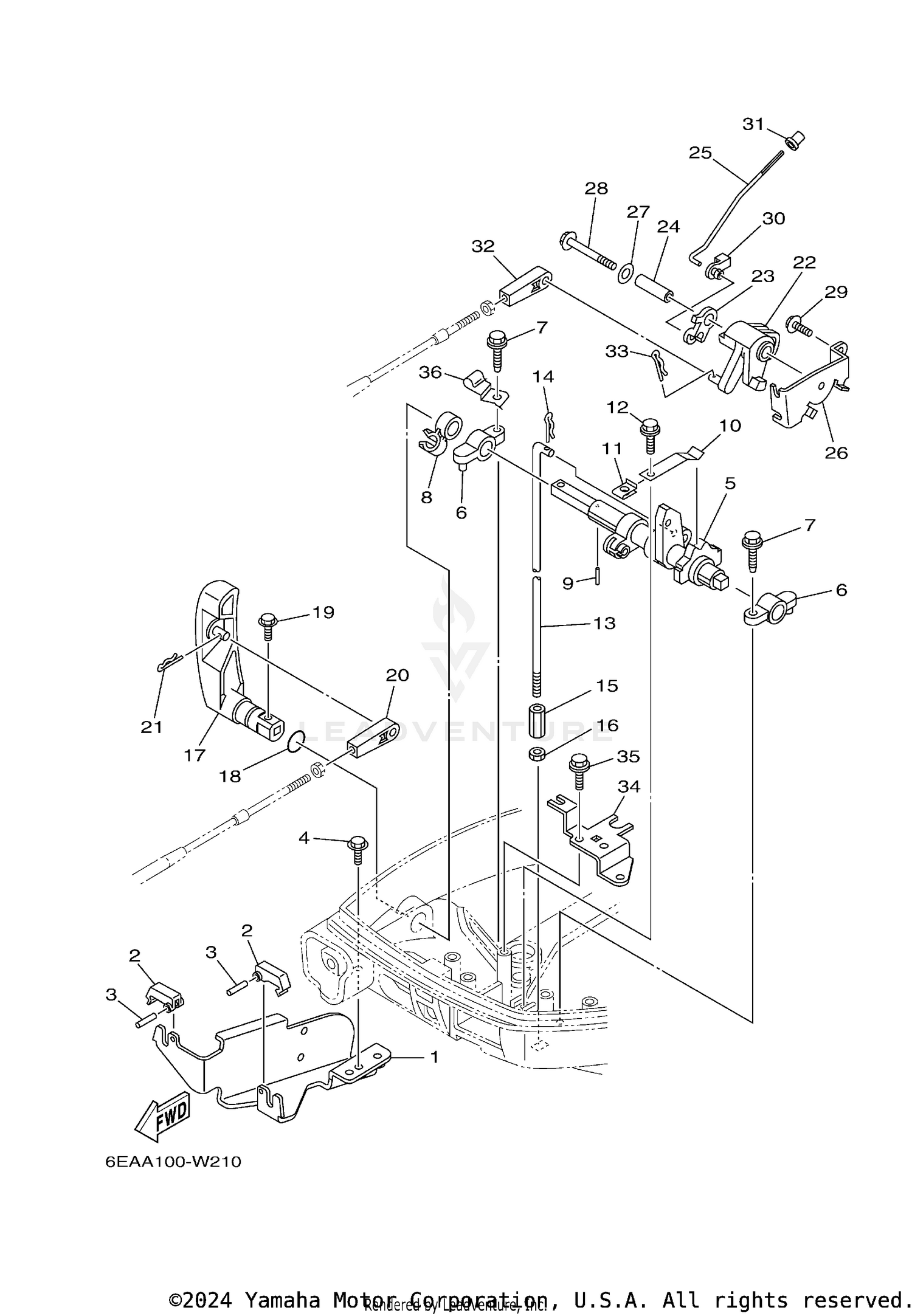

| Ref | Part Number | Description |
|---|
| 1 |
6DR-48531-01-00 |
BRACKET, REMOTE CONTROL 1 Price: $74.70 |
| 2 |
682-48538-50-00 |
CLAMP, CABLE 1 Price: $14.75 |
| 3 |
91690-30012-00 |
PIN, SPRING Price: $5.55 |
| 4 |
97E95-06512-00 |
BOLT, HEXAGON W/W Price: $2.05 |
| 5 |
68T-44121-03-00 |
LEVER, SHIFT ROD Price: $47.55 |
| 6 |
6G1-41662-01-94 |
BRACKET 2 Price: $15.65 |
| 7 |
90109-06M81-00 |
BOLT Price: $2.70 |
| 8 |
90464-10M60-00 |
CLAMP Price: $3.80 |
| 9 |
91690-30014-00 |
PIN, SPRING Price: $6.60 |
| 10 |
65W-44116-00-00 |
SPRING Price: $6.40 |
| 11 |
6DR-44117-01-00 |
BRACKET This part replaces 6DR-44117-00-00. Price: $3.05 |
| 12 |
90109-06M86-00 |
BOLT Price: $1.81 |
| 13 |
68T-44143-11-00 |
ROD, SHIFT Price: $40.05 |
| 14 |
90468-18001-00 |
CLIP Price: $3.55 |
| 15 |
61N-44146-00-00 |
CONNECTOR, SHIFT ROD 2 Price: $13.10 |
| 16 |
95380-06700-00 |
NUT Price: $9.49 |
| 17 |
6AU-44111-10-00 |
HANDLE, GEAR SHIFT Price: $27.30 |
| 18 |
93210-12790-00 |
O-RING This part replaces 93210-12327-00. Price: $8.49 |
| 19 |
97595-05516-00 |
BOLT, WITH WASHER Price: $1.55 |
| 20 |
6FM-48344-00-00 |
CABLE END, REMOTE CONTROL Price: $21.65 |
| 21 |
90468-18008-00 |
CLIP Price: $1.55 |
| 22 |
68T-41638-00-00 |
PULLEY Price: $7.15 |
| 23 |
68T-41283-00-00 |
LEVER, FREE ACCEL. Price: $6.25 |
| 24 |
90387-06M59-00 |
COLLAR Price: $14.20 |
| 25 |
6AU-41211-00-00 |
LINK, ACCEL. Price: $16.85 |
| 26 |
68T-14497-00-00 |
STAY, THROTTLE WIRE Price: $13.00 |
| 27 |
90201-06M62-00 |
WASHER, PLATE Price: $4.75 |
| 28 |
97E95-06545-00 |
BOLT, HEXAGON W/W Price: $1.15 |
| 29 |
97E95-06512-00 |
BOLT, HEXAGON W/W Price: $2.05 |
| 30 |
6J8-41262-00-00 |
JOINT, CHOKE LEVER Price: $6.60 |
| 31 |
647-14395-61-00 |
CAP, OVERFLOW PIPE Price: $1.35 |
| 32 |
6FM-48344-00-00 |
CABLE END, REMOTE CONTROL Price: $21.65 |
| 33 |
90468-18008-00 |
CLIP Price: $1.55 |
| 34 |
68T-15774-20-00 |
STAY 4 Price: $26.75 |
| 35 |
90109-06M86-00 |
BOLT Price: $1.81 |
