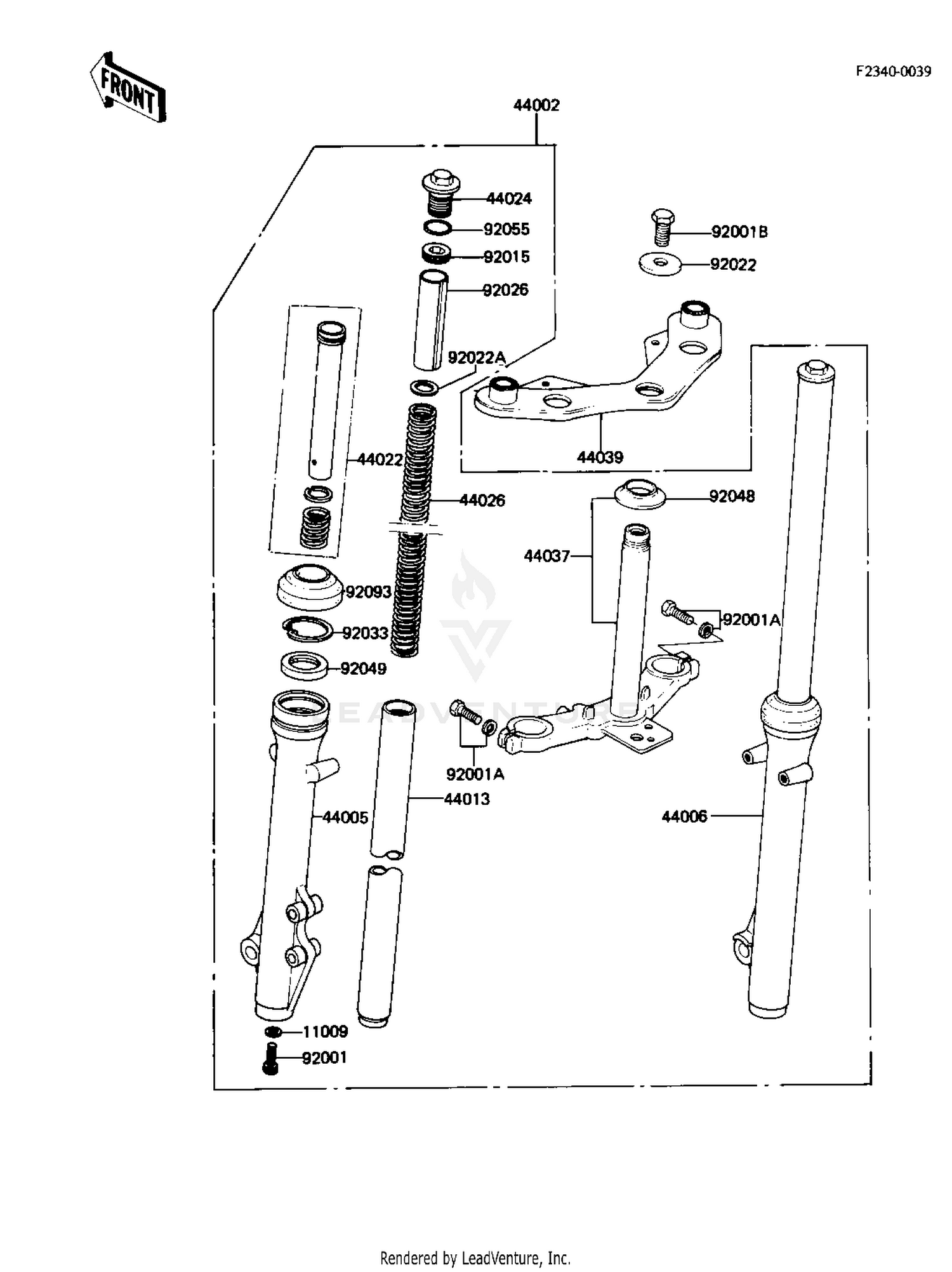

| Ref | Part Number | Description |
|---|
| 11009 |
44045-057 |
GASKET,FORK CYLINDER Price: $4.86 |
| 44002 |
44002-1034 |
FORK-FRONT Price: $796.97 |
| 44005 |
44005-1071 |
TUBE,LH,FORK OUTER Price: $171.32 |
| 44006 |
44006-1071 |
TUBE,RH,FORK OUTER Price: $171.32 |
| 44013 |
44013-1063 |
PIPE-FORK INNER Price: $170.94 |
| 44022 |
44022-1060 |
CYLINDER-FORK Price: $88.67 |
| 44024 |
44024-1011 |
CAP-OIL-LOCK Price: $17.84 |
| 44026 |
44026-1111 |
SPRING-FRONT FORK,L=3 Price: $32.56 |
| 44037 |
44037-1059 |
HOLDER-FORK UNDER Price: $183.80 |
| 44039 |
44039-1037 |
HOLDER-FORK UPPER Price: $103.61 |
| 92001 |
44041-040 |
BOLT,SOCKET,FORK CYLINDER Price: $6.57 |
| 92001A |
92001-1469 |
BOLT,8X30 Price: $4.18 |
| 92001B |
92001-1470 |
BOLT,10X20 Price: $13.30 |
| 92015 |
92015-1152 |
NUT Price: $10.70 |
| 92022 |
92022-1267 |
WASHER Price: $6.88 |
| 92022A |
92022-1268 |
WASHER Price: $4.45 |
| 92026 |
92026-1349 |
SPACER This part replaces 92026-1097. Price: $8.39 |
| 92033 |
92033-1003 |
RING-SNAP Price: $3.74 |
| 92048 |
92048-0034 |
RACE,STEERING STEM BEARING This part replaces 92047-013. Price: $12.33 |
| 92049 |
92049-1319 |
SEAL-OIL,FORK OUTER Price: $20.80 |
| 92055 |
670B2016 |
O RING,16MM This part replaces 92055-1010. Price: $1.36 |
