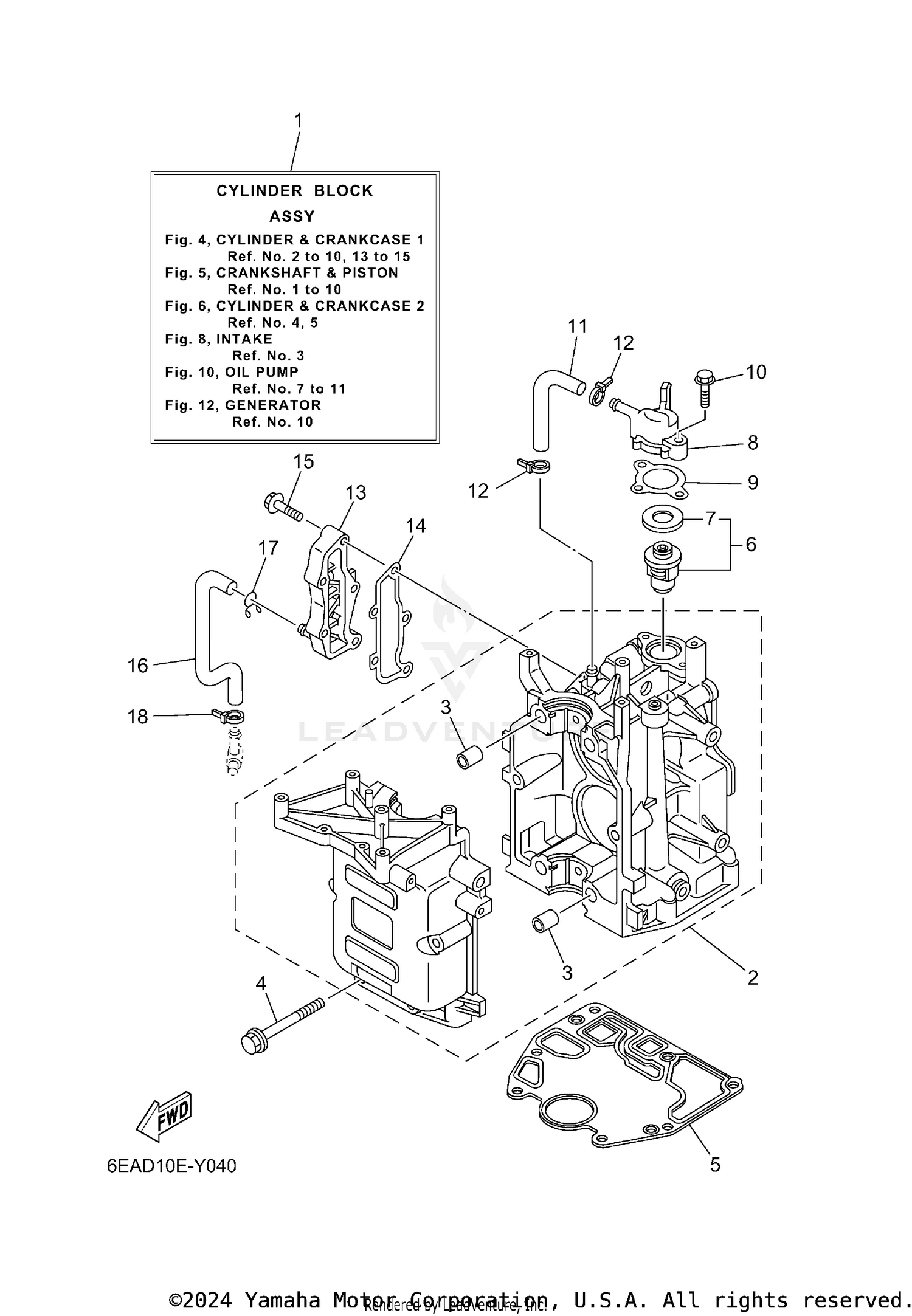

| Ref | Part Number | Description |
|---|
| 1 |
6AU-W009B-00-1S |
CYLINDER BLOCK ASSY Price: $1,138.55 |
| 2 |
6AU-15100-00-00 |
CRANKCASE ASSY Price: $1,611.50 |
| 3 |
99530-12016-00 |
PIN, DOWEL Price: $4.89 |
| 4 |
90119-08015-00 |
BOLT, WITH WASHER This part replaces 90119-08M29-00. Price: $2.85 |
| 5 |
68T-11351-00-00 |
GASKET, CYLINDER Price: $25.55 |
| 6 |
66M-12411-01-00 |
THERMOSTAT Price: $45.60 |
| 7 |
688-12412-00-00 |
SEAL, THERMOSTAT Price: $5.65 |
| 8 |
68T-12413-00-1S |
COVER, THERMOSTAT Price: $21.00 |
| 9 |
6G8-12414-A0-00 |
GASKET, COVER Price: $8.30 |
| 10 |
90119-06MA2-00 |
BOLT, WITH WASHER Price: $3.20 |
| 11 |
68T-12481-00-00 |
PIPE 1 Price: $15.65 |
| 12 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 13 |
6AU-41113-00-1S |
OUTER COVER, EXHAUST Price: $28.15 |
| 14 |
68T-41114-A0-00 |
GASKET, EXHAUST OUTER COVER Price: $6.60 |
| 15 |
90119-06MA3-00 |
BOLT, WITH WASHER Price: $3.20 |
| 16 |
68T-12482-00-00 |
PIPE 2 Price: $15.55 |
| 17 |
90467-10M04-00 |
CLIP Price: $7.70 |
