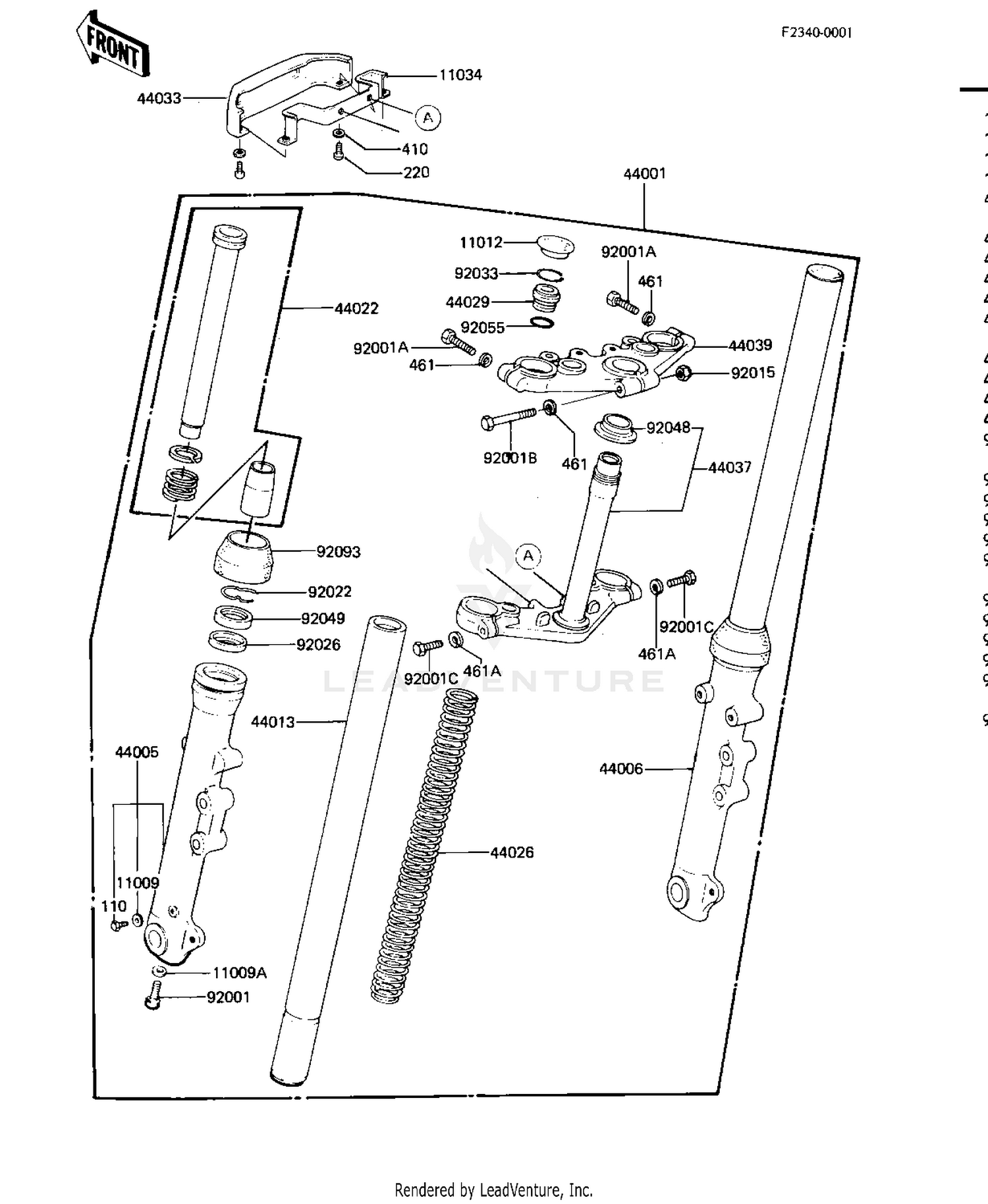

| Ref | Part Number | Description |
|---|
| 110 |
110B0608 |
BOLT HEX HEAD 6X8 Price: $0.34 |
| 220 |
220AA0410 |
SCREW-PAN-CROS,4X10 This part replaces 220B0410. Price: $2.46 |
| 410 |
410AA0400 |
WASHER-PLAIN-SMALL,4MM This part replaces 410B0400. Price: $0.49 |
| 461 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 11009 |
44045-052 |
GASKET,DRAIN PLUG This part replaces 44045-047. Price: $6.10 |
| 11009A |
44045-051 |
GASKET,FORK CYLINDER BOLT Price: $6.16 |
| 11012 |
11012-1124 |
CAP,FORK This part replaces 11012-1021. Price: $9.39 |
| 11034 |
11034-1698 |
BRACKET,FORK COVER Price: $15.03 |
| 44001 |
44001-1214 |
FORK-FRONT Price: $1,248.18 |
| 44005 |
44005-1029 |
TUBE,LH,FORK OUTER Price: $262.75 |
| 44006 |
44006-1029 |
TUBE,RH,FORK OUTER Price: $202.55 |
| 44013 |
44013-1025 |
TUBE,FORK INNER Price: $312.80 |
| 44022 |
44022-1028 |
CYLINDER-FORK Price: $97.96 |
| 44026 |
44026-1037 |
SPRING,FORK INNER Price: $58.22 |
| 44029 |
44029-022 |
SEAT-FORK SPRING Price: $11.61 |
| 44033 |
44033-1042 |
COVER,FORK Price: $38.98 |
| 44037 |
44037-1053 |
STEM,STEERING,GMN This part replaces 44037-1014. Price: $349.92 |
| 44039 |
44039-1023 |
HEAD,STEERING STEM Price: $189.97 |
| 92001 |
44041-078 |
BOLT,FORK CYLINDER Price: $9.89 |
| 92001A |
92001-1063 |
BOLT,HEX HEAD,8X40 Price: $9.63 |
| 92001B |
92001-1064 |
BOLT,HEX HEAD,8X55 Price: $9.77 |
| 92001C |
92001-1252 |
BOLT,HEX HEAD 10X35 Price: $7.65 |
| 92015 |
92015-1124 |
NUT,LOCK,8MM Price: $5.42 |
| 92022 |
44043-057 |
RING,OIL SEAL STOPPER Price: $6.52 |
| 92026 |
92026-1005 |
SPACER,FORK Price: $12.15 |
| 92033 |
44044-023 |
RING-SNAP Price: $5.46 |
| 92048 |
92047-006 |
CONE STRNG STEM BERNG Price: $12.67 |
| 92049 |
92049-1340 |
SEAL-OIL,FORK OUTER TUBE This part replaces 92049-1077. Price: $20.75 |
| 92055 |
44046-025 |
RING-O Price: $6.57 |
| 92093 |
92093-1063 |
DUST SHIELD,FORK Price: $34.25 |
