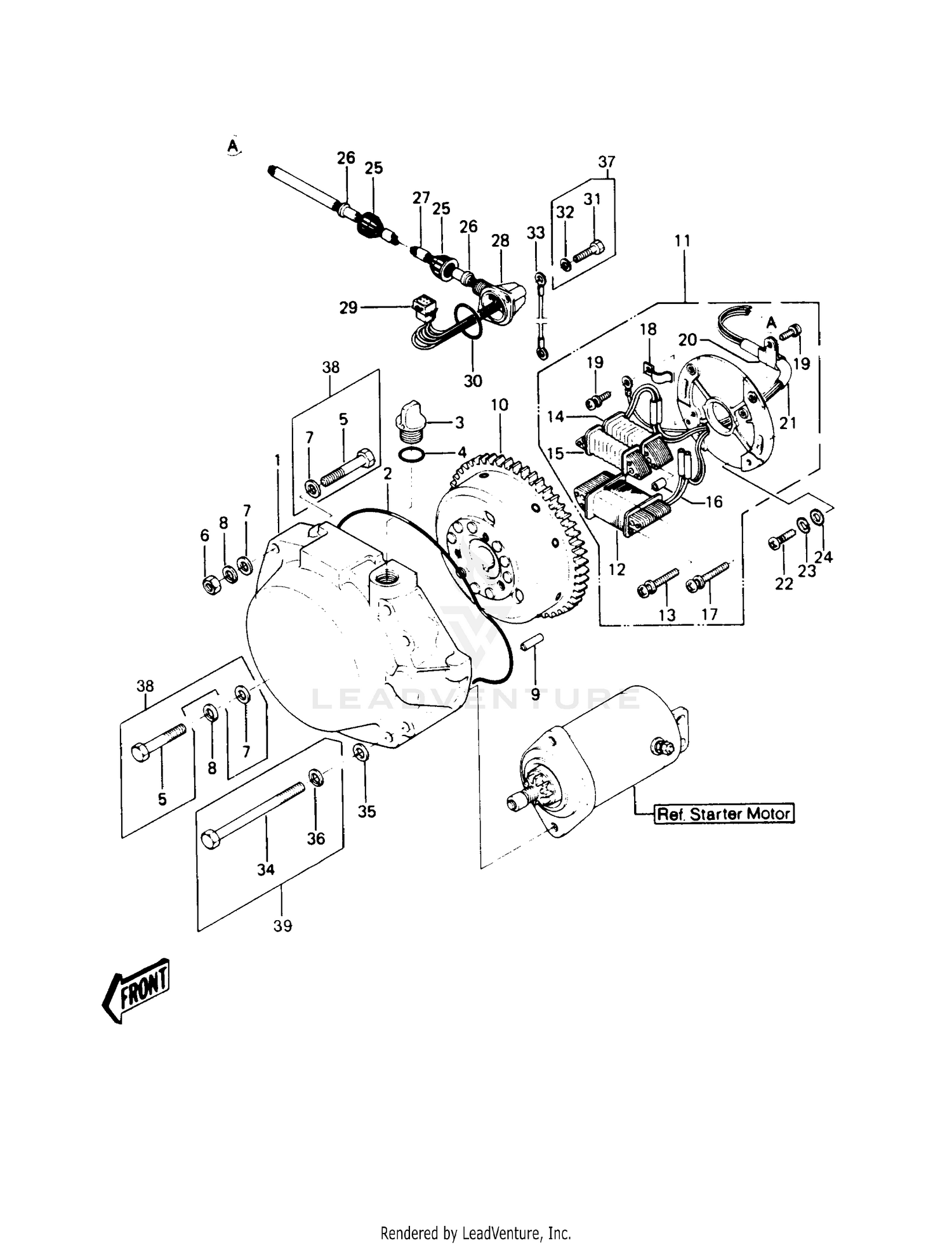

| Ref | Part Number | Description |
|---|
| 1A |
14031-3705 |
COVER-GENERATOR Price: $172.93 |
| 2 |
92055-521 |
O RING Price: $28.99 |
| 3 |
14069-3709 |
BREATHER This part replaces 43056-502. Price: $48.15 |
| 6A |
317R0800 |
NUT-HEX-SMALL,8MM Price: $1.96 |
| 7 |
410S0800 |
WASHER-PLAIN-SMALL,8MM Price: $2.58 |
| 8 |
461S0800 |
WASHER-SPRING,8MM Price: $0.65 |
| 10 |
21050-3021 |
FLYWHEEL Price: $764.47 |
| 11 |
21003-3012 |
STATOR ASSY Price: $612.44 |
| 12 |
59031-3002 |
COIL,CHARGE Price: $127.23 |
| 13 |
92011-530 |
SCREW 5X34 Price: $2.22 |
| 14 |
21049-3007 |
COIL,EXCITING Price: $126.07 |
| 15 |
59026-3008 |
COIL,PULSING Price: $126.07 |
| 16 |
92027-3014 |
COLLAR,COIL Price: $8.43 |
| 17 |
92009-3008 |
SCREW,5X38 Price: $5.30 |
| 18 |
92037-520 |
CLAMP Price: $4.97 |
| 19 |
92011-560 |
SCREW 4X8 Price: $1.73 |
| 20 |
92037-547 |
CLAMP Price: $4.04 |
| 21 |
26001-3006 |
HARNESS,MAGNETO Price: $97.28 |
| 22 |
220AA0520 |
SCREW-PAN-CROS This part replaces 220B0520. Price: $0.68 |
| 23 |
461DA0500 |
WASHER-SPRING,5MM This part replaces 461F0500. Price: $0.71 |
| 24 |
92022-544 |
WASHER Price: $2.67 |
| 25 |
11012-3012 |
CAP Price: $9.11 |
| 26 |
92071-3001 |
GROMMET Price: $4.18 |
| 27 |
92059-3717 |
TUBE,10X12X630 This part replaces 92059-3032. Price: $20.47 |
| 28 |
59176-517-YR |
CAP-MAGNETO HARNESS Price: $42.68 |
| 29 |
59221-506 |
CONNECTOR,CORD Price: $11.17 |
| 30 |
92055-520 |
RING-O,35.2X1.9 Price: $5.31 |
| 33 |
26011-3006 |
WIRE-LEAD,L=300 Price: $5.94 |
| 35 |
410S0800 |
WASHER-PLAIN-SMALL,8MM Price: $2.58 |
| 37 |
92002-3715 |
BOLT,6X35 Price: $6.61 |
| 38 |
154R0845 |
BOLT-WP-SMALL,8X45 Price: $5.42 |
| 39 |
92150-3725 |
BOLT This part replaces 92002-3719. Price: $12.14 |
