| Ref | Part Number | Description |
|---|
| 220 |
220AA0406 |
SCREW-PAN CROS,4X6 This part replaces 220B0406. Price: $1.67 |
| 223 |
223B0310 |
SCREW-PAN-WS-CROS Price: $2.74 |
| 223A |
223AA0412 |
SCREW-PAN-WS-CROS This part replaces 223B0412. Price: $4.60 |
| 11009 |
11009-1275 |
GASKET,FLOAT CHAMBER Price: $15.20 |
| 11009A |
11009-1406 |
GASKET,CHAMBER CAP Price: $7.33 |
| 11009B |
16038-009 |
GASKET-COVER Price: $9.73 |
| 11012 |
11012-1047 |
CAP,FLOAT Price: $6.54 |
| 13159 |
13159-1051 |
CONNECTOR Price: $25.48 |
| 13169 |
13169-1190 |
PLATE, LOCK Price: $6.54 |
| 13169A |
13169-1807 |
PLATE,FLOAT CHAMBER Price: $14.78 |
| 15001 |
16001-1923 |

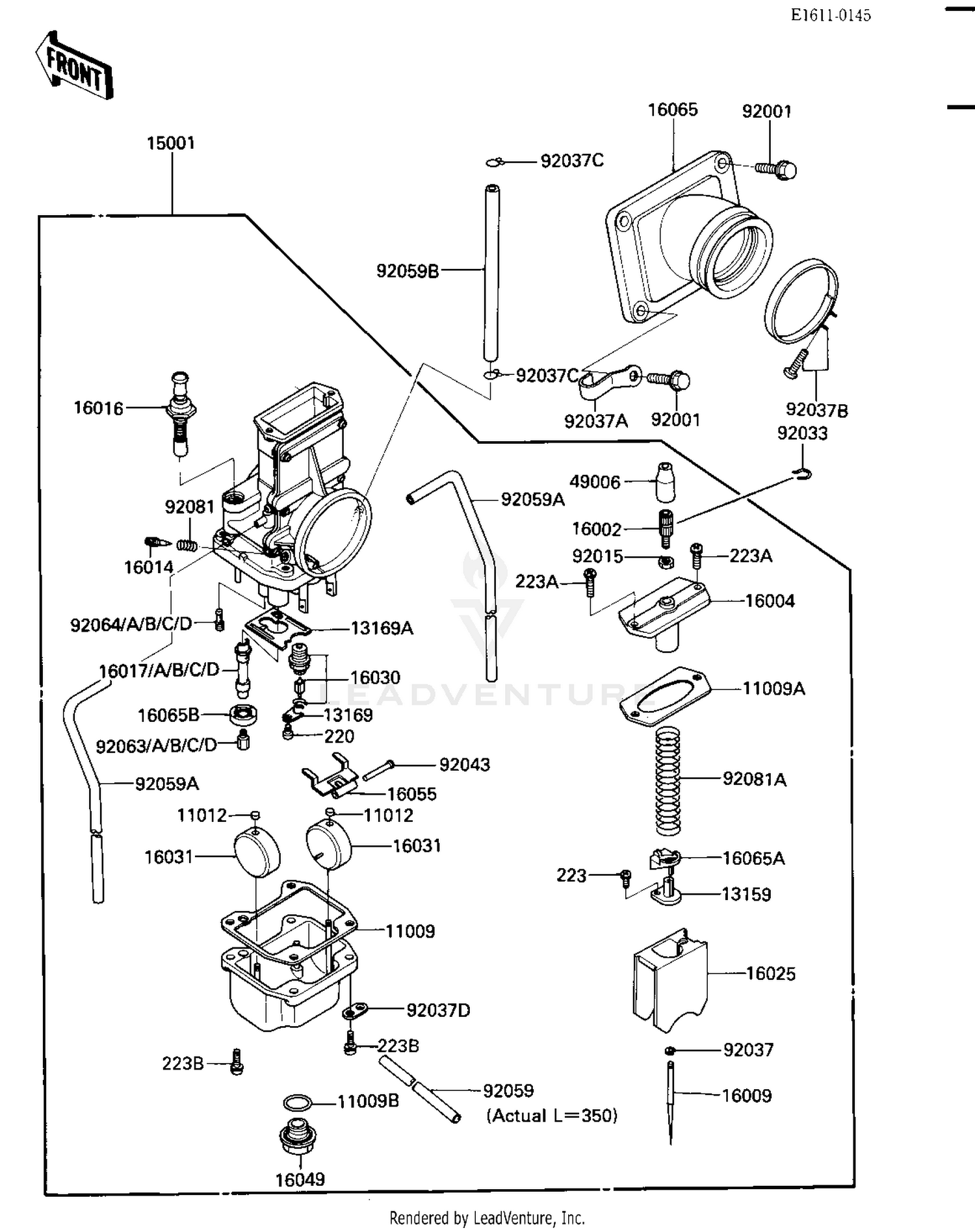

CARBURETOR Price: $307.61 |
| 16002 |
16002-011 |
ADJUSTER-CABLE Price: $13.97 |
| 16004 |
16004-1051 |
CAP-CHAMBER,MIXING Price: $28.54 |
| 16009 |
16009-1224 |
NEEDLE-JET,6EL4 Price: $24.63 |
| 16014 |
16014-1031 |
SCREW-PILOT AIR Price: $14.21 |
| 16016 |
16016-1026 |
PLUNGER,STARTER Price: $72.43 |
| 16017D |
16017-1236 |
JET-NEEDLE,R-4 Price: $45.79 |
| 16025 |
16025-1104 |
VALVE-THROTTLE,CA2.0 Price: $98.77 |
| 16030 |
16030-1020 |
VALVE-FLOAT,3.3 Price: $55.61 |
| 16031 |
16031-029 |
FLOAT Price: $64.25 |
| 16049 |
16049-006 |
COVER,MAIN JET Price: $20.47 |
| 16055 |
16055-009 |
ARM,FLOAT Price: $23.41 |
| 16065 |
16065-1101 |
HOLDER-CARBURETOR Price: $109.85 |
| 16065A |
16065-1113 |
HOLDER-CARBURETOR,THR Price: $12.86 |
| 16065B |
16065-1114 |
HOLDER-CARBURETOR,NEE Price: $12.77 |
| 49006 |
49006-1169 |
BOOT,CARBURETOR Price: $38.72 |
| 92001 |
132BA0620 |
BOLT-FLANGED-SMALL,6X20 This part replaces 132G0620. Price: $2.49 |
| 92015 |
16003-006 |
NUT,ADJUST LOCK Price: $7.34 |
| 92033 |
92036-018 |
RING-SNAP Price: $3.89 |
| 92037 |
16008-010 |
CIRCLIP Price: $9.21 |
| 92037A |
92037-016 |
CLAMP CABLE Price: $2.67 |
| 92037B |
92037-1313 |
CLAMP,CARBURETOR HOLD Price: $12.97 |
| 92037C |
92037-147 |
CLAMP,TUBE Price: $7.34 |
| 92037D |
92037-1474 |
CLAMP Price: $8.63 |
| 92043 |
16032-008 |
PIN,FLOAT Price: $6.57 |
| 92059 |
92059-1211 |
TUBE,3.5X6.5X350 Price: $12.19 |
| 92059A |
92059-1292 |
TUBE,4X7X400,OVERFLOW Price: $6.84 |
| 92059B |
92059-3731 |
TUBE,2.5X5.8X270 This part replaces 92059-1392. Price: $9.11 |
| 92063B |
92063-047 |
JET-MAIN NO 320A Price: $16.36 |
| 92064C |
92064-1005 |
PILOT JET,#50 Price: $18.76 |
| 92081 |
16022-007 |
SPRING,PILOT AIR SCREW Price: $8.13 |
| 92081A |
92081-1687 |
SPRING,THROTTLE VALVE Price: $10.27 |
