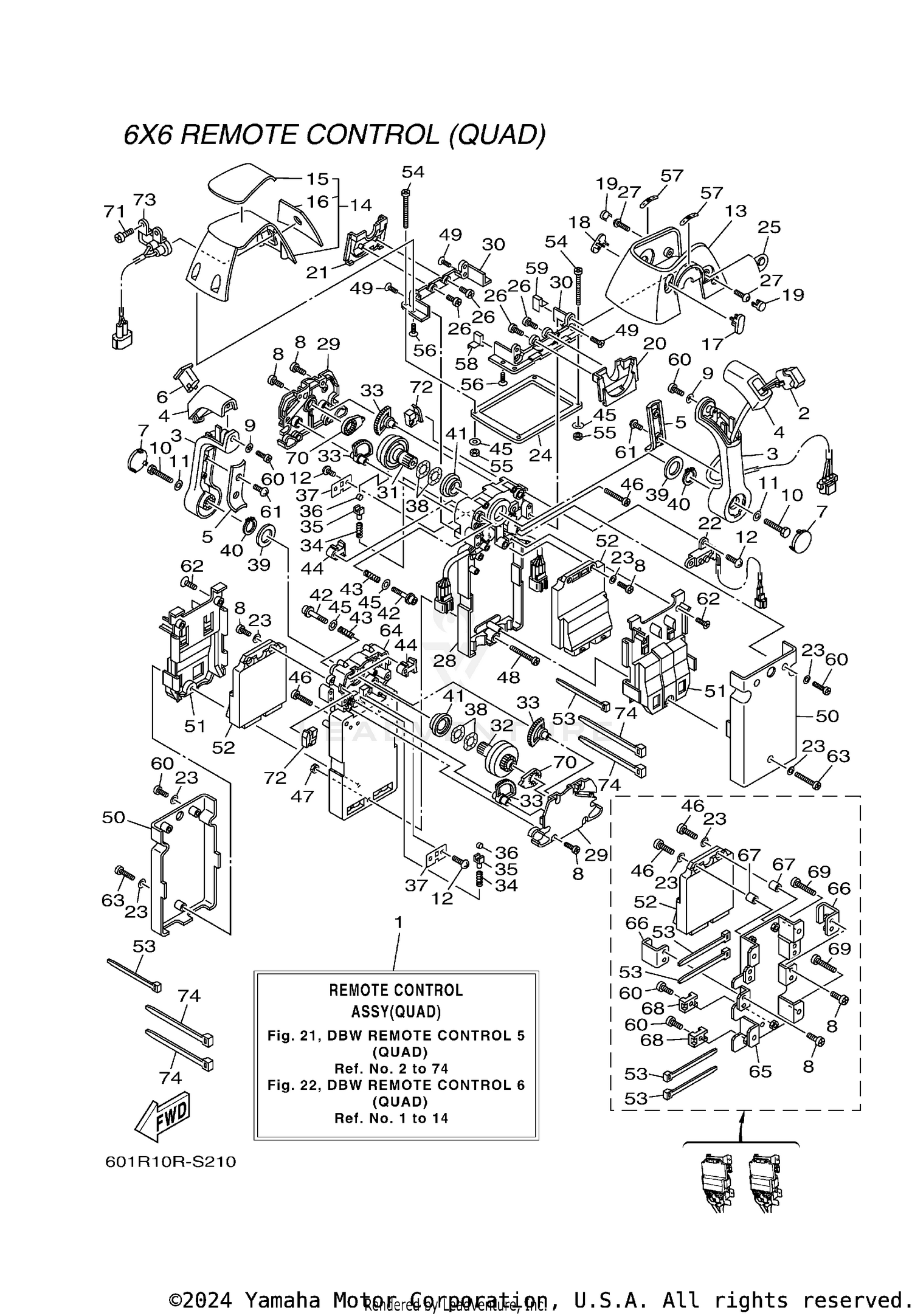

| Ref | Part Number | Description |
|---|
| 2 |
6X6-82563-01-00 |
TRIM & TILT SWITCH ASSY Price: $147.65 |
| 3 |
6X6-48221-00-00 |
LEVER, CONTROL Price: $316.75 |
| 4 |
6X6-48222-00-00 |
GRIP, CONTROL LEVER Price: $27.30 |
| 5 |
6X6-48224-00-00 |
COVER, CONTROL LEVER Price: $37.90 |
| 6 |
6X6-48222-10-00 |
GRIP, CONTROL LEVER Price: $16.25 |
| 7 |
6X6-48224-10-00 |
COVER, CONTROL LEVER Price: $29.25 |
| 8 |
98580-05014-00 |
SCREW, PAN HEAD Price: $6.99 |
| 9 |
92990-05300-00 |
WASHER, INTERNAL TOOTH Price: $9.49 |
| 10 |
6X6-48171-00-00 |
BOLT Price: $14.90 |
| 11 |
92990-08600-00 |
WASHER, PLATE Price: $2.70 |
| 12 |
EL8-48127-00-00 |
SCREW 1 Price: $6.25 |
| 13 |
6X6-48119-10-00 |
COVER Price: $75.95 |
| 14 |
6X6-84301-40-00 |
PILOT LIGHT ASSY 1 Price: $275.00 |
| 15 |
6X6-48215-70-00 |
GRAPHIC Price: $309.40 |
| 16 |
6X6-48216-20-00 |
GRAPHIC Price: $146.85 |
| 17 |
6X6-48167-10-00 |
PLUG Price: $36.00 |
| 18 |
6X6-48167-20-00 |
PLUG Price: $36.00 |
| 19 |
6X6-48167-60-00 |
PLUG Price: $36.00 |
| 20 |
6X6-48219-10-00 |
COVER, LEAD Price: $12.30 |
| 21 |
6X6-48219-20-00 |
COVER, LEAD Price: $13.75 |
| 22 |
6X6-8259E-01-00 |
SWITCH ASSY Price: $118.20 |
| 23 |
92990-05200-00 |
WASHER, PLAIN Price: $5.00 |
| 24 |
6X6-48176-10-00 |
GROMMET Price: $19.55 |
| 25 |
6X6-48225-00-00 |
COVER Price: $40.65 |
| 26 |
98580-04010-00 |
SCREW, PAN HEAD Price: $9.49 |
| 27 |
6X6-48267-C0-00 |
BOLT SET Price: $4.30 |
| 28 |
6X6-481A0-12-00 |
REMO-CON. CASE ASSY Price: $808.55 |
| 29 |
6X6-48212-00-00 |
BACK PLATE 1 Price: $17.15 |
| 30 |
6X6-48144-10-00 |
PLATE, STOPPER 2 Price: $43.80 |
| 31 |
6X6-48242-02-00 |
SHAFT, DRIVE Price: $42.60 |
| 32 |
6X6-48242-12-00 |
SHAFT, DRIVE Price: $42.15 |
| 33 |
6X6-48233-01-00 |
GEAR 2 Price: $20.95 |
| 34 |
6X6-48238-00-00 |
SPRING, DETENT Price: $6.25 |
| 35 |
6X6-48237-00-00 |
ADAPTOR Price: $5.80 |
| 36 |
6X6-48236-00-00 |
ROLLER, DETENT Price: $6.85 |
| 37 |
6X6-48189-00-00 |
RETAINER Price: $5.55 |
| 38 |
703-48198-00-00 |
WASHER, WAVE Price: $5.35 |
| 39 |
6X6-48193-00-00 |
WASHER 3 Price: $13.85 |
| 40 |
6X6-48118-00-00 |
CLIP, SHIFT LEVER Price: $7.60 |
| 41 |
6X6-48234-00-00 |
BUSHING 1 Price: $8.10 |
| 42 |
6X6-48267-00-00 |
BOLT SET Price: $8.60 |
| 43 |
6X6-48158-00-00 |
SPRING 1 Price: $6.70 |
| 44 |
6X6-48264-00-00 |
FRICTION, THROTTLE Price: $30.90 |
| 45 |
704-48287-00-00 |
WASHER Price: $7.70 |
| 46 |
98580-05525-00 |
SCREW, PAN HEAD This part replaces 98580-05025-00. Price: $2.00 |
| 47 |
704-48156-00-00 |
NUT 1 Price: $13.50 |
| 48 |
98580-05540-00 |
SCREW, PAN HEAD This part replaces 704-48283-00-00. Price: $9.49 |
| 49 |
6X6-81147-00-00 |
SCREW 3 Price: $3.35 |
| 50 |
6X6-48213-00-00 |
BACK PLATE 2 Price: $21.85 |
| 51 |
6X6-48228-01-00 |
HOLDER, SWITCH Price: $18.10 |
| 52 |
6X6-85590-31-00 |
CONTROL UNIT ASSY Price: $2,020.50 |
| 53 |
1UA-82591-00-00 |
BAND This part replaces 703-82591-00-00. Price: $5.49 |
| 55 |
95380-05600-00 |
NUT Price: $9.49 |
| 56 |
6X6-48129-01-00 |
SCREW 3 Price: $4.90 |
| 57 |
6X6-44191-10-00 |
INDICATOR, SHIFT Price: $15.95 |
| 58 |
6X6-48176-50-00 |
GROMMET Price: $20.80 |
| 59 |
6X6-48176-60-00 |
GROMMET Price: $23.55 |
| 60 |
6X6-48127-01-00 |
SCREW 1 Price: $4.90 |
| 61 |
6X6-48128-00-00 |
SCREW 2 Price: $6.25 |
| 62 |
6X6-81146-01-00 |
SCREW 2 Price: $4.30 |
| 63 |
6X6-81145-01-00 |
SCREW 1 Price: $7.40 |
| 64 |
6X6-481A0-32-00 |
REMO-CON. CASE ASSY Price: $792.65 |
| 65 |
6X6-48211-10-00 |
HOUSING,1 Price: $511.70 |
| 66 |
6X6-85557-00-00 |
HOLDER Price: $252.75 |
| 67 |
6X6-8252S-00-00 |
SPACER, 1 Price: $33.70 |
| 68 |
6X6-82581-00-00 |
STAY, CORD CLAMP Price: $9.30 |
| 69 |
6X0-48128-00-00 |
SCREW(M6X30) Price: $10.10 |
| 70 |
6X6-48241-00-00 |
ARM, DRIVE Price: $23.05 |
| 71 |
98780-05010-00 |
SCREW, FLAT HEAD Price: $1.40 |
| 72 |
6X6-82545-00-00 |
GROMMET Price: $20.10 |
| 73 |
6X6-8259F-11-00 |
SWITCH ASSY Price: $146.85 |
