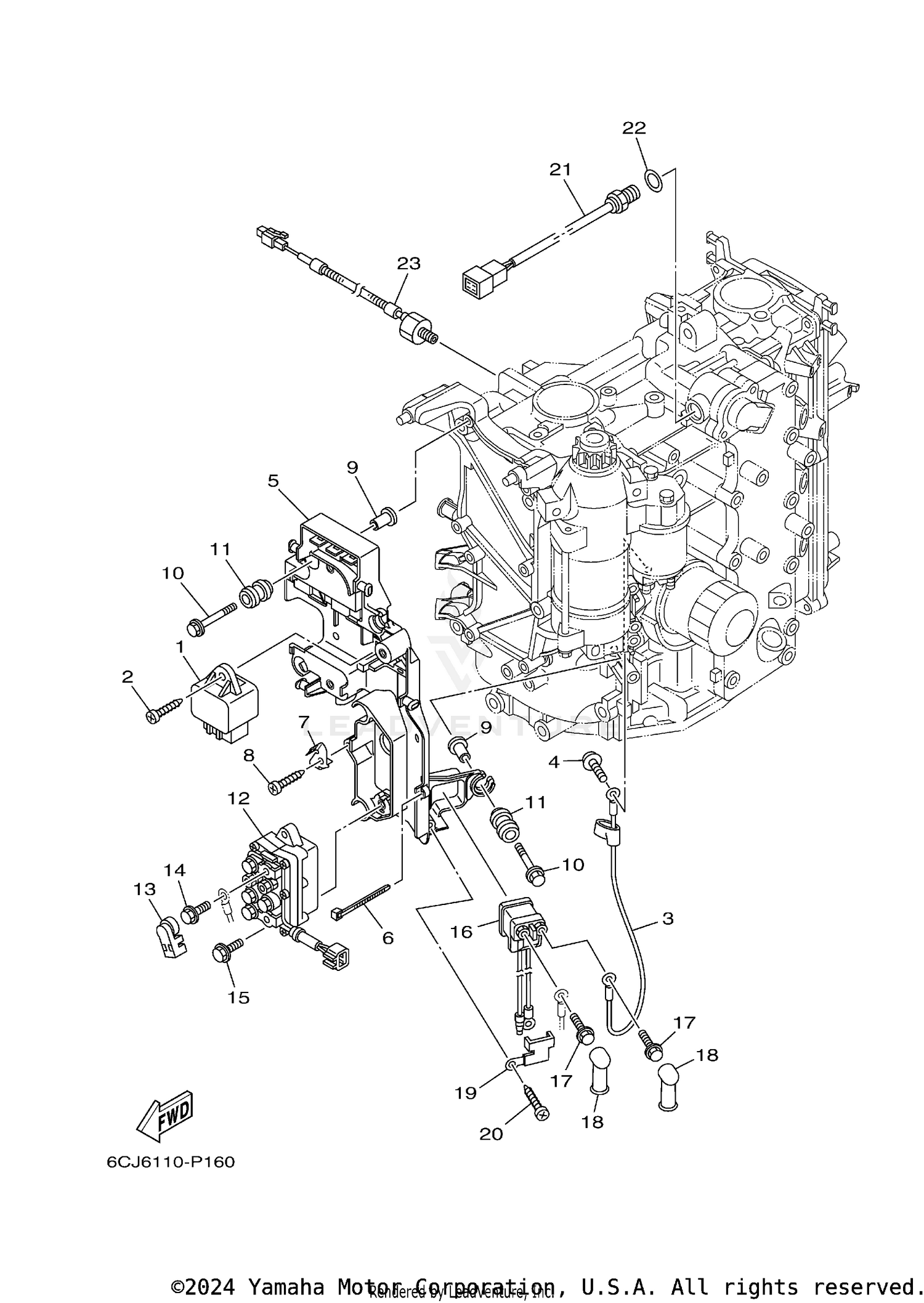

| Ref | Part Number | Description |
|---|
| 1 |
60E-81950-00-00 |
RELAY ASSY Price: $180.49 |
| 2 |
97780-60520-00 |
SCREW, TAPPING This part replaces 97780-60620-00. Price: $4.49 |
| 3 |
6C5-81815-00-00 |
CORD, STARTER MOTOR Price: $17.70 |
| 4 |
90159-04005-00 |
SCREW, WITH WASHER Price: $3.20 |
| 5 |
6CJ-81948-01-00 |
BRACKET Price: $81.85 |
| 6 |
90465-13M97-00 |
CLAMP Price: $3.45 |
| 7 |
6CJ-85548-00-00 |
HOLDER Price: $7.20 |
| 8 |
97780-60520-00 |
SCREW, TAPPING This part replaces 97780-60620-00. Price: $4.49 |
| 9 |
90387-06119-00 |
COLLAR Price: $4.80 |
| 10 |
90119-06289-00 |
BOLT, WITH WASHER Price: $3.65 |
| 11 |
6A0-82317-01-00 |
DAMPER, IGNITION C Price: $7.10 |
| 12 |
63P-W8195-00-00 |
RELAY ASSY This part replaces 63P-81950-00-00. Price: $479.70 |
| 13 |
6P2-8183X-00-00 |
CAP, TERMINAL Price: $6.70 |
| 14 |
97E95-06610-00 |
BOLT, HEXAGON W/W Price: $1.00 |
| 15 |
97E95-06520-00 |
BOLT, HEXAGON W/W Price: $3.05 |
| 16 |
68V-8194A-00-00 |
RELAY Price: $130.85 |
| 17 |
97E95-06610-00 |
BOLT, HEXAGON W/W Price: $1.00 |
| 18 |
6G5-82119-10-00 |
COVER, LEAD WIRE This part replaces 6G5-82119-00-00. Price: $10.40 |
| 19 |
68F-81953-00-00 |
STAY, RELAY Price: $15.50 |
| 20 |
97780-60520-00 |
SCREW, TAPPING This part replaces 97780-60620-00. Price: $4.49 |
| 21 |
6CJ-85790-00-00 |
THERMOSENSOR ASSY Price: $72.60 |
| 22 |
90430-14115-00 |
GASKET Price: $3.00 |
