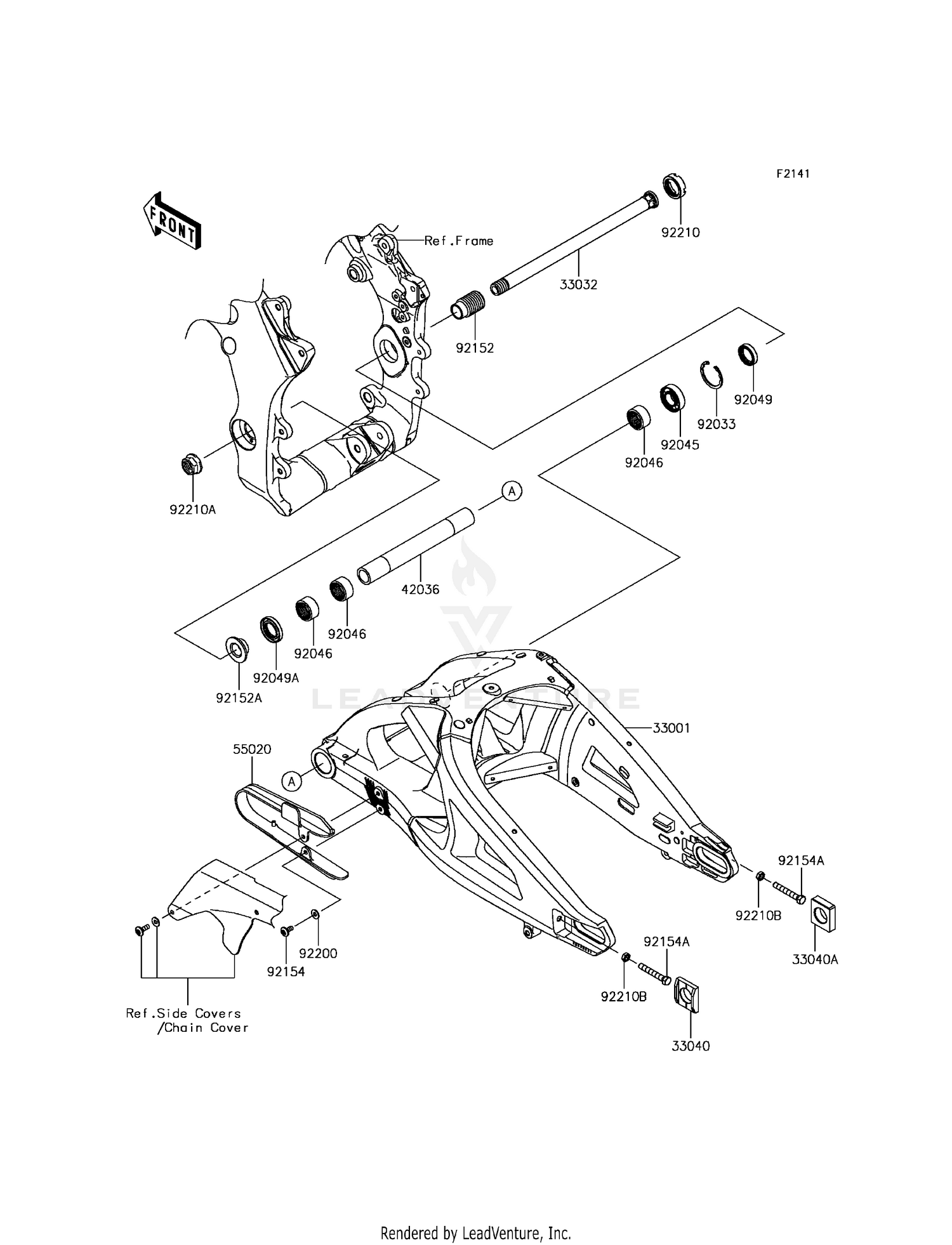

| Ref | Part Number | Description |
|---|
| 33001 |
33001-0648 |
ARM-COMP-SWING Price: $1,581.97 |
| 33032 |
33032-0048 |
SHAFT-SWING ARM Price: $104.45 |
| 33040 |
33040-0107 |
ADJUSTER-CHAIN,LH This part replaces 33040-0027. Price: $38.65 |
| 33040A |
33040-1114 |
ADJUSTER-CHAIN,RH Price: $19.28 |
| 42036 |
42036-1341 |
SLEEVE,SWING ARM PIVOT,L=226 Price: $68.84 |
| 55020 |
55020-0561 |
GUARD,CHAIN Price: $40.27 |
| 92033 |
92033-1041 |
RING-SNAP,42MM Price: $6.16 |
| 92045 |
92045-0017 |
BEARING-BALL,6004UL11 Price: $14.39 |
| 92046 |
92046-0008 |
BEARING-NEEDLE,7E-HVS 28X34X17 Price: $21.54 |
| 92049 |
92049-1314 |
SEAL-OIL,MHSA25X42X6 Price: $13.75 |
| 92049A |
92049-1352 |
SEAL-OIL,MHSA25X34X7 Price: $9.28 |
| 92152 |
92152-2980 |
COLLAR,SWING ARM,L=47 This part replaces 92152-0154. Price: $37.14 |
| 92152A |
92152-2169 |
COLLAR,20.2X25X15 Price: $29.61 |
| 92154 |
92154-1807 |
BOLT,SOCKET,6X14 Price: $3.29 |
| 92154A |
92154-1962 |
BOLT-SMALL,8X55 Price: $5.69 |
| 92200 |
92200-1762 |
WASHER,6.2X15X1.2 Price: $1.19 |
| 92210 |
92210-0134 |
NUT,30MM Price: $28.51 |
| 92210A |
92210-0320 |
NUT,FLANGED,20MM Price: $11.93 |
