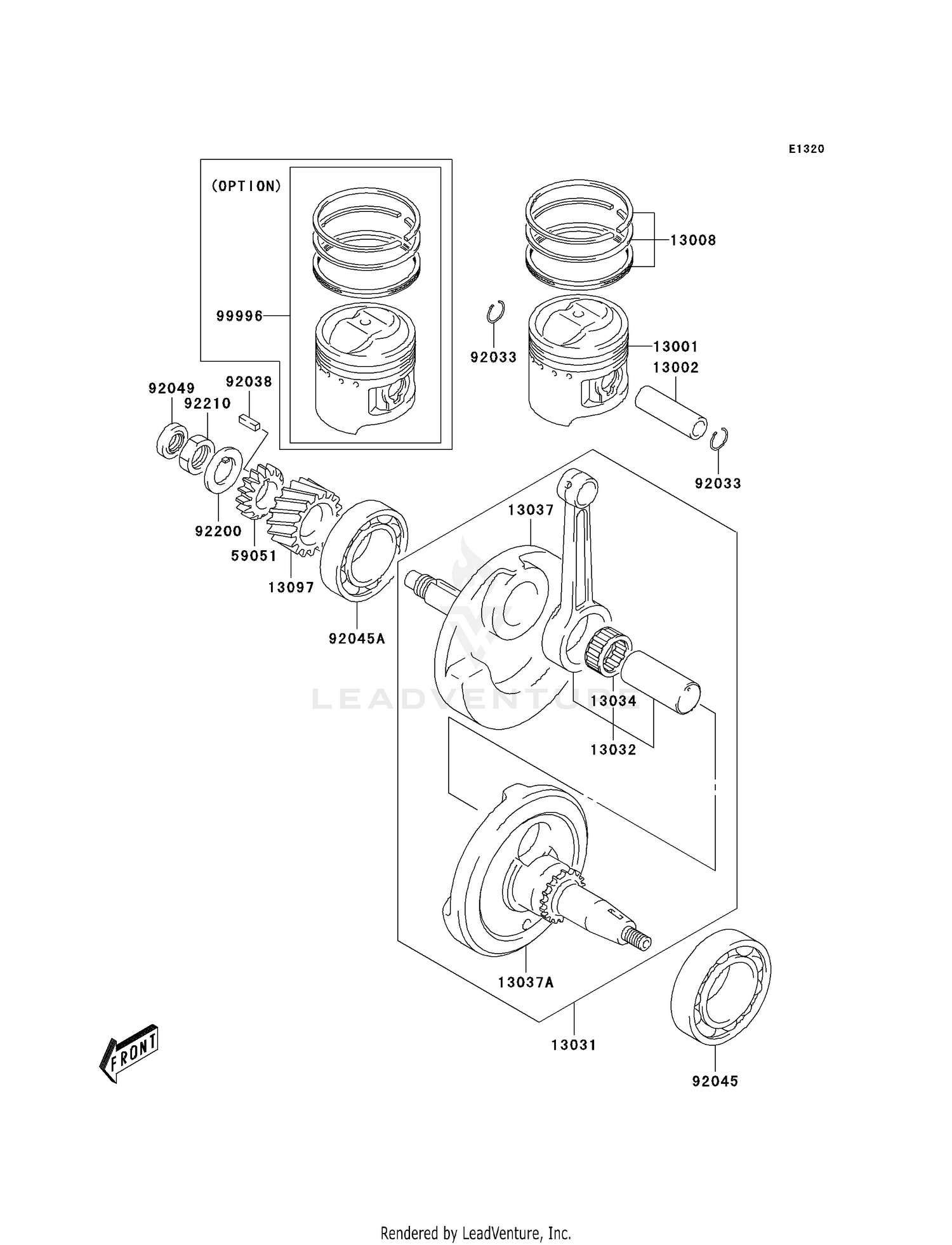

CRANKSHAFT/PISTON(S)
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 13001 | 13001-S003 | PISTON-ENGINE Price: $56.30 |
| 13002 | 13002-S008 | PIN-PISTON This part replaces 13002-S003. Price: $19.78 |
| 13008 | 13008-S003 | RING-SET-PISTON Price: $43.31 |
| 13031 | 13031-S003 | CRANKSHAFT-COMP Price: $438.88 |
| 13032 | 13032-S003 | ROD-CONNECTING Price: $126.84 |
| 13034 | 13034-S003 | BEARING-BIG END,28X36 Price: $34.18 |
| 13037 | 13037-S005 | CRANKSHAFT,RH Price: $165.63 |
| 13037A | 13037-S006 | CRANKSHAFT,LH Price: $170.91 |
| 13097 | 13097-S003 | GEAR-PRIMARY SPUR Price: $47.18 |
| 59051 | 59051-S001 | GEAR-SPUR,OIL PUMP DR Price: $34.16 |
| 92033 | 92033-S022 | RING-SNAP Price: $1.90 |
| 92038 | 92038-S003 | KEY,PRIMARY DRIVE Price: $4.60 |
| 92045 | 92045-S010 | BEARING-BALL Price: $48.10 |
| 92045A | 92045-S026 | BEARING-BALL,28X68X18 Price: $54.28 |
| 92049 | 92049-S001 | SEAL-OIL,OIL,12X21X7 Price: $14.16 |
| 92200 | 92200-S058 | WASHER Price: $2.79 |
| 92210 | 92210-S048 | NUT Price: $4.60 |
