| Ref | Part Number | Description |
|---|
| 2 |
404104200 |
Gasket Price: $6.49 |
| 3 |
404102700 |
Pilot Jet 35 Price: $5.29 |
| 4 |
Not |
Available As Spare Part - Baffle |
| 5 |
404107300 |
O-Ring Price: $9.29 |
| 6 |
404107400 |
Drain Plug Screw Price: $23.99 |
| 7 |
404147500 |
Needle Valve 1.2 Price: $43.99 |
| 8 |
404107600 |
Float Lever Price: $23.99 |
| 9 |
404103300 |
Lever Pin Price: $6.39 |
| 10 |
404101600 |
Seat Washer Price: $3.39 |
| 11 |
404128400 |
Piston Valve 2.5 Price: $127.49 |
| 12 |
404103700 |
Cover Price: $32.99 |
| 13 |
404121300 |
Screw With Washer Price: $4.29 |
| 14 |
404161987 |
Packing Price: $15.99 |
| 15 |
404122100 |
Cover Price: $19.49 |
| 16 |
404154800 |
Spring Price: $24.99 |
| 18 |
404101800 |
Spring Price: $4.39 |
| 19 |
404102300 |
Air Screw Price: $14.99 |
| 20 |
404162130 |
Plunger Ass'y Price: $32.99 |
| 21 |
404162131 |
Spring Price: $17.49 |
| 23 |
404153400 |
Nipple Price: $12.49 |
| 24 |
404156600 |
Cap Price: $16.99 |
| 25 |
404101700 |
Spring Price: $4.29 |
| 26 |
404109700 |
Idle Speed Screw Price: $19.49 |
| 27 |
404162133 |
FLOAT BODY - Call your local BRP dealership Price: $67.99 |
| 28 |
404162124 |
Needle Jet Price: $42.99 |
| 30 |
Not |
Available As Spare Part - Baffle Ring |
| 31 |
404162113 |
Needle, J8-6BFY46 Price: $32.99 |
| 32 |
Not |
Available As Spare Part - Float |
| 33 |
404105800 |
Cap Price: $6.49 |
| 34 |
404152400 |
E-Ring Price: $7.39 |
| 35 |
404117000 |
Packing Price: $3.39 |
| 36 |
404102000 |
Screw With Lock Washer Price: $3.29 |
| 132 |
132BC0630 |
BOLT-FLANGED-SMALL,6X30 Price: $2.15 |

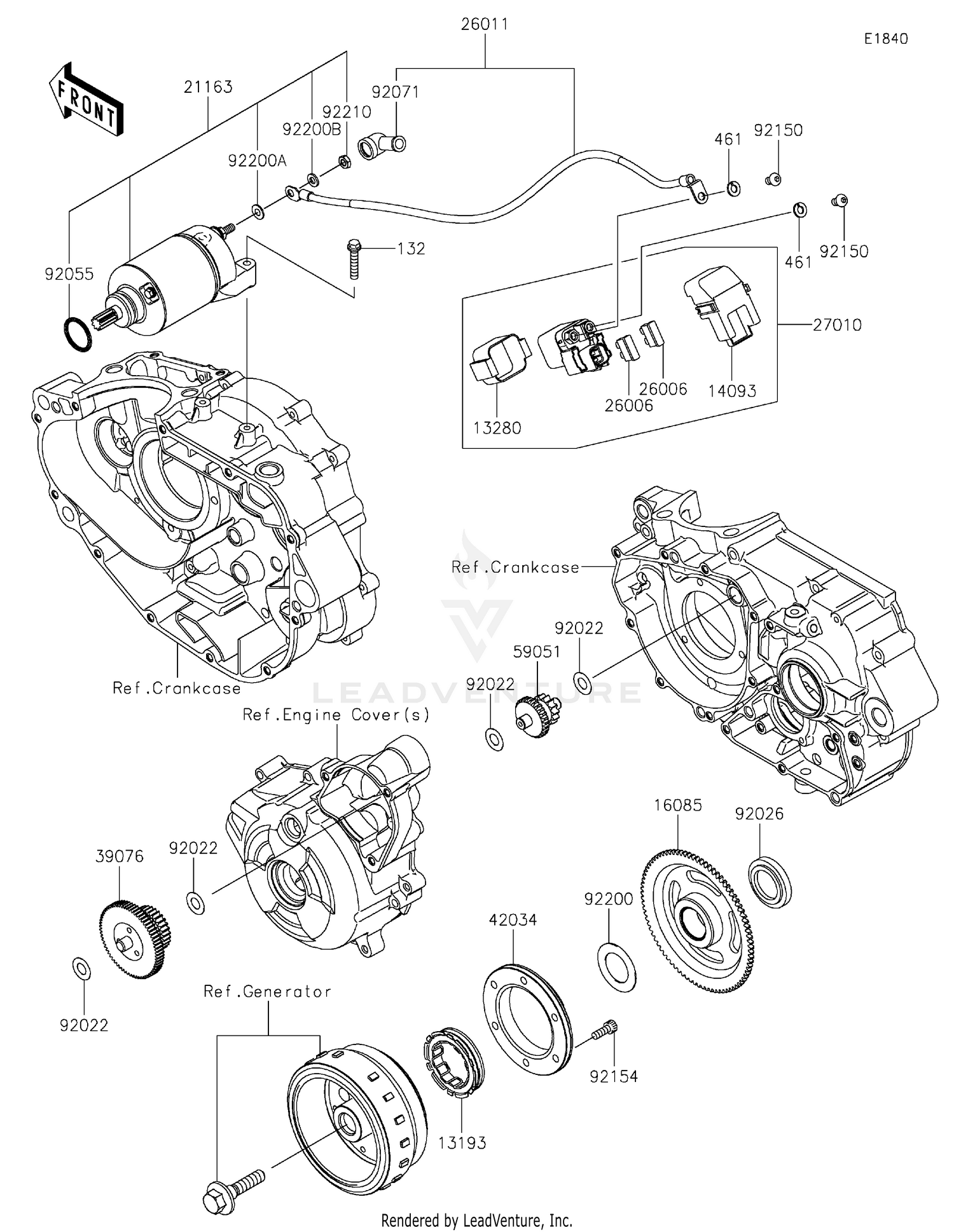

| 461 |
461DB0600 |
WASHER-SPRING,6MM Price: $0.65 |
| 13193 |
13193-0007 |
CLUTCH-ASSY-ONEWAY Price: $119.24 |
| 13280 |
13280-0710 |
HOLDER Price: $14.49 |
| 14093 |
14093-0199 |
COVER Price: $18.77 |
| 16085 |
16085-0613 |
GEAR Price: $197.27 |
| 21163 |
21163-0739 |
STARTER-ELECTRIC Price: $328.84 |
| 26006 |
26006-1006 |
FUSE,BLADE,30A,GREEN Price: $4.96 |
| 26011 |
26011-0890 |
WIRE-LEAD Price: $30.12 |
| 27010 |
27010-0754 |
SWITCH Price: $135.59 |
| 39076 |
39076-0020 |
LIMITER,STARTER IDLE GEAR Price: $183.19 |
| 42034 |
42034-0048 |
COUPLING Price: $117.33 |
| 59051 |
59051-0743 |
GEAR-SPUR,IDLER Price: $96.87 |
| 92022 |
92022-1649 |
WASHER,10.2X20X0.5 Price: $4.31 |
| 92026 |
92026-0762 |
SPACER Price: $20.92 |
| 92055 |
92055-0822 |
RING-O Price: $12.35 |
| 92071 |
92071-0024 |
GROMMET Price: $10.21 |
| 92150 |
92150-1577 |
BOLT,6X10 Price: $3.60 |
| 92154 |
92154-0235 |
BOLT,SOCKET,6X16 Price: $2.95 |
| 92200 |
92200-0908 |
WASHER,27.2X44X1 Price: $6.24 |
| 92200A |
92200-1678 |
WASHER Price: $3.56 |
| 92200B |
92200-1679 |
WASHER Price: $1.48 |
