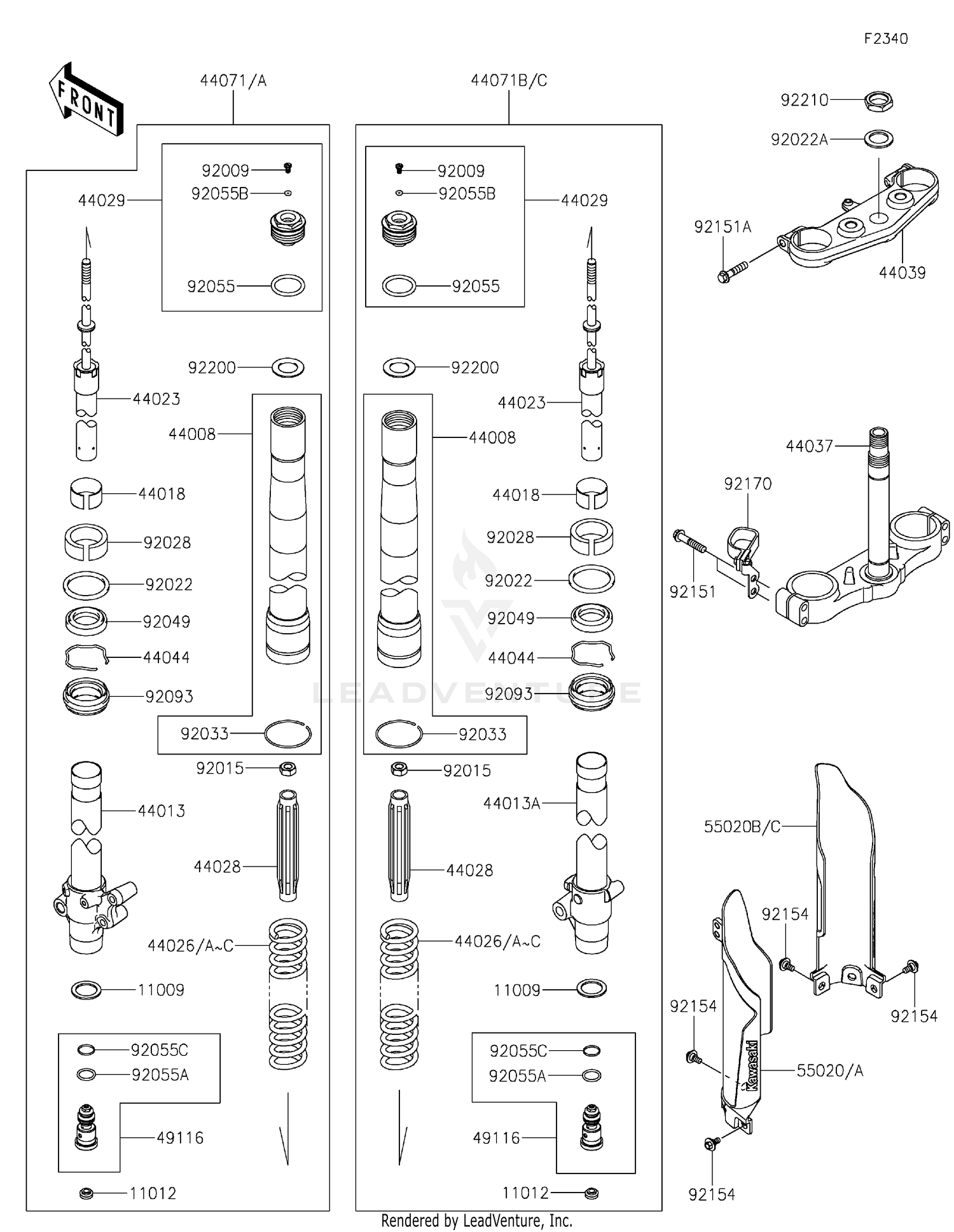

| Ref | Part Number | Description |
|---|
| 11009 |
11009-1592 |
GASKET,FORK CYLINDER BOLT Price: $6.16 |
| 11012 |
11012-1692 |
CAP Price: $6.16 |
| 44008 |
44008-0068-828 |
PIPE-FORK OUTER,K.GOLD Price: $449.05 |
| 44013 |
44013-0215 |
PIPE-FORK INNER,LH Price: $257.86 |
| 44013A |
44013-0216 |
PIPE-FORK INNER,RH Price: $257.86 |
| 44018 |
44018-1058 |
PISTON-FORK Price: $21.36 |
| 44023 |
44023-0113 |
CYLINDER-SET-FORK Price: $352.91 |
| 44026 |
44026-1633 |
SPRING-FRONT FORK,K=2.75N/MM Price: $60.49 |
| 44026A |
44026-1634 |
SPRING-FRONT FORK,K=2.84N/MM Price: $60.49 |
| 44026B |
44026-1635 |
SPRING-FRONT FORK,K=2.94N/MM Price: $60.49 |
| 44026C |
44026-1671 |
SPRING-FRONT FORK,K=2.65N/MM Price: $64.63 |
| 44028 |
44028-1090 |
GUIDE-FORK SPRING Price: $40.90 |
| 44029 |
44029-0024-50Y |
SEAT-FORK SPRING,G.B.GREEN Price: $68.34 |
| 44037 |
44037-0139-21 |
HOLDER-FORK UNDER,F.BLACK Price: $307.73 |
| 44039 |
44039-0128-21 |
HOLDER-FORK UPPER,F.BLACK Price: $137.42 |
| 44044 |
92033-1100 |
RING-SNAP,FORK OIL This part replaces 44044-015. Price: $14.94 |
| 44071 |
44071-1361-59Z |
DAMPER-ASSY,FORK,LH,K.GOLD Price: $877.94 |
| 44071A |
44071-1361-70C |
DAMPER-ASSY,FORK,LH,K.GOLD+GRN Price: $877.94 |
| 44071B |
44071-1362-59Z |
DAMPER-ASSY,FORK,RH,K.GOLD Price: $877.94 |
| 44071C |
44071-1362-70C |
DAMPER-ASSY,FORK,RH,K.GOLD+GRN Price: $877.94 |
| 49116 |
49116-0038 |
VALVE-ASSY,BASE Price: $138.34 |
| 55020 |
55020-0896-290 |
GUARD,FORK,LH,L.GREEN Price: $29.03 |
| 55020A |
55020-0896-6D |
GUARD,FORK,LH,BLACK Price: $29.03 |
| 55020B |
55020-0897-290 |
GUARD,FORK,RH,L.GREEN Price: $29.03 |
| 55020C |
55020-0897-6D |
GUARD,FORK,RH,BLACK Price: $29.03 |
| 92009 |
92009-1568 |
SCREW Price: $7.21 |
| 92015 |
92015-1839 |
NUT Price: $19.64 |
| 92022 |
92022-1275 |
WASHER,FRONT FORK Price: $7.34 |
| 92022A |
92022-1873 |
WASHER,STEERING STEM Price: $7.45 |
| 92028 |
92028-1656 |
BUSHING Price: $16.18 |
| 92033 |
92033-0737 |
RING-SNAP Price: $7.52 |
| 92049 |
92049-1394 |
SEAL-OIL,FORK OUTER TUBE Price: $19.64 |
| 92055 |
92055-1123 |
RING-O Price: $6.22 |
| 92055A |
670B2018 |
O RING,18MM This part replaces 92055-1156. Price: $1.42 |
| 92055B |
92055-1441 |
RING-O,2.8X6.6X1.9 Price: $2.93 |
| 92055C |
92055-1502 |
RING-O,FORK VALVE Price: $7.45 |
