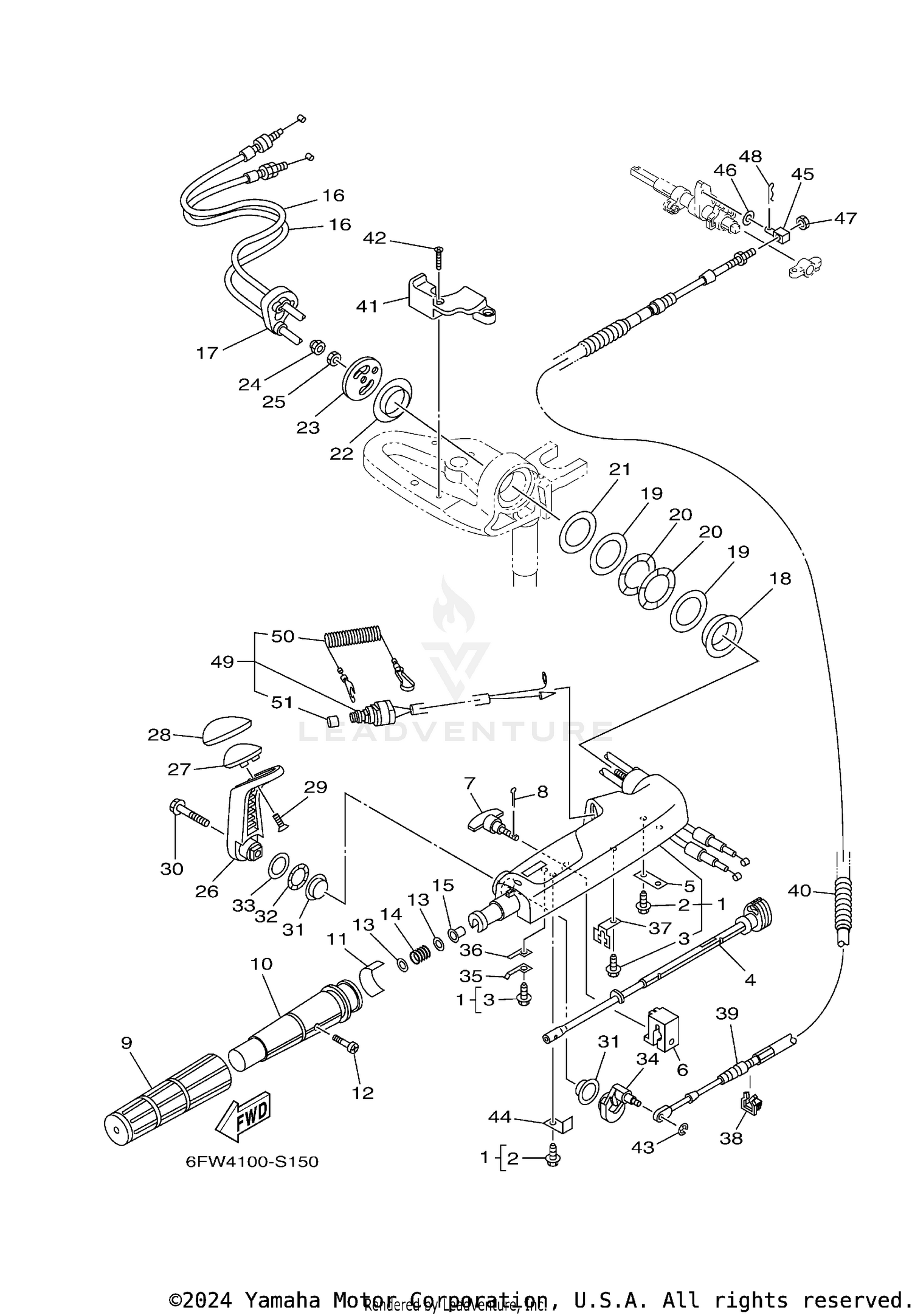

| Ref | Part Number | Description |
|---|
| 1 |
6DR-42101-00-8D |
HANDLE, STEERING Price: $149.60 |
| 2 |
90109-06M86-00 |
BOLT Price: $1.81 |
| 3 |
90109-06M80-00 |
BOLT Price: $2.95 |
| 4 |
6DR-42138-01-00 |
LEVER, THROTTLE Price: $108.00 |
| 5 |
65W-42159-00-00 |
STAY Price: $6.25 |
| 6 |
6DR-42126-00-00 |
FRICTION, STEERING HANDLE GRIP Price: $8.95 |
| 7 |
65W-42125-00-00 |
BOLT, FRICTION ADJUSTING Price: $11.40 |
| 8 |
91490-16010-00 |
PIN. COTTER Price: $2.70 |
| 9 |
67D-42177-01-00 |
RUBBER, HANDLE Price: $28.00 |
| 10 |
67D-42119-01-00 |
GRIP, STEERING HANDLE Price: $42.75 |
| 11 |
6FW-42137-00-00 |
INDICATOR, THROTTLE Price: $6.40 |
| 12 |
90152-05011-00 |
SCREW, COUNTERSUNK Price: $3.35 |
| 13 |
90201-10M02-00 |
WASHER, PLATE Price: $4.60 |
| 14 |
90501-23215-00 |
SPRING, COMPRESSION Price: $8.25 |
| 15 |
90386-08032-00 |
BUSH Price: $5.55 |
| 16 |
6DR-26301-00-00 |
THROTTLE CABLE ASSY Price: $15.55 |
| 17 |
6DR-26316-01-00 |
BOOT, THROTTLE CABLE Price: $3.65 |
| 18 |
66R-42171-00-00 |
BUSHING Price: $6.25 |
| 19 |
90201-43M00-00 |
WASHER, PLATE Price: $4.05 |
| 20 |
90206-43M22-00 |
WASHER, WAVE Price: $11.10 |
| 21 |
90202-43M57-00 |
WASHER, PLATE Price: $3.55 |
| 22 |
90386-40M99-00 |
BUSH Price: $4.40 |
| 23 |
65W-42131-01-00 |
COVER, HANDLE STEERING Price: $19.35 |
| 24 |
95780-10300-00 |
NUT, FLANGE Price: $13.00 |
| 25 |
95380-10700-00 |
NUT Price: $6.15 |
| 26 |
6DR-44111-00-8D |
HANDLE, GEAR SHIFT Price: $53.55 |
| 27 |
6DR-44173-00-00 |
LEVER, SHIFT CONTROL Price: $8.10 |
| 28 |
6DR-42129-01-00 |
BUSHING, RUBBER Price: $5.20 |
| 29 |
97780-60920-00 |
SCREW, TAPPING Price: $5.55 |
| 30 |
97E95-08535-00 |
BOLT, HEXAGON W/W Price: $1.85 |
| 31 |
90386-26MA3-00 |
BUSH Price: $8.60 |
| 32 |
90206-26M25-00 |
WASHER, WAVE Price: $15.65 |
| 33 |
90202-26M59-00 |
WASHER, PLATE Price: $4.40 |
| 34 |
6DR-44113-A0-00 |
CAM PLATE, HANDLE Price: $58.00 |
| 35 |
6DR-44116-00-00 |
SPRING Price: $4.75 |
| 36 |
66R-44118-00-00 |
BRACKET Price: $6.60 |
| 37 |
66R-48538-00-00 |
CLAMP, CABLE 1 Price: $9.45 |
| 38 |
63D-48538-00-00 |
CLAMP, CABLE 1 Price: $6.40 |
| 39 |
6DR-48321-00-00 |
CABLE Price: $82.15 |
| 40 |
90447-13015-00 |
TUBE Price: $4.05 |
| 41 |
6DR-82594-00-00 |
CLAMP Price: $5.50 |
| 42 |
90151-05011-00 |
SCREW, COUNTERSUNK This part replaces 90151-05003-00. Price: $2.50 |
| 43 |
99080-04600-00 |
CIRCLIP Price: $1.99 |
| 44 |
6DR-44114-00-00 |
STOPPER Price: $5.00 |
| 45 |
66R-48344-01-00 |
CABLE END, REMOTE This part replaces 66R-48344-00-00. Price: $39.25 |
| 46 |
90201-06M62-00 |
WASHER, PLATE Price: $4.75 |
| 47 |
90170-05M38-00 |
NUT Price: $3.55 |
| 48 |
91490-20015-00 |
PIN. COTTER This part replaces 91490-20012-00. Price: $2.20 |
| 49 |
65W-82575-01-00 |
ENGINE STOP SWITCH ASSY Price: $78.50 |
| 50 |
682-82556-00-00 |
LANYARD, STOP SWITCH Price: $8.20 |
