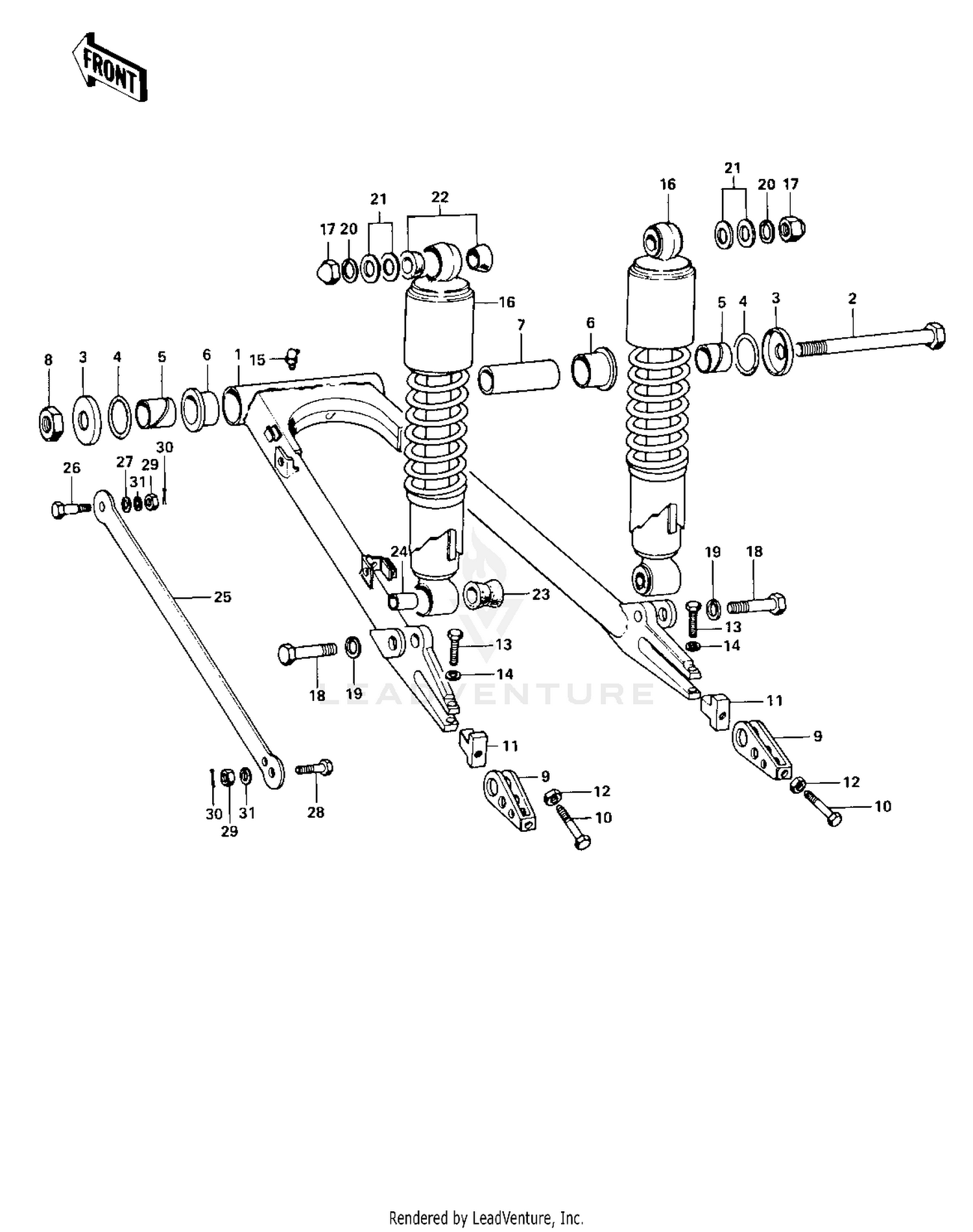

| Ref | Part Number | Description |
|---|
| 1 |
33001-046 |
ARM,SWING Price: $216.13 |
| 2 |
33032-036 |
SHAFT,SWING ARM PIVOT Price: $64.39 |
| 3 |
33035-007 |
CAP,SWING ARM Price: $18.10 |
| 5 |
33034-009 |
SLEEVE SWING ARM Price: $41.94 |
| 6 |
33033-009 |
BUSHING-SWING ARM Price: $99.19 |
| 7 |
33036-005 |
COLLAR,SWING ARM Price: $17.34 |
| 8 |
92019-012 |
NUT-SELF LOCKING Price: $25.70 |
| 9 |
33040-066 |
ADJUSTER,CHAIN Price: $30.91 |
| 10 |
92001-143 |
BOLT-CHN ADJUST 10MM Price: $19.74 |
| 11 |
33044-001 |
STOPPER,CHAIN ADJUST Price: $40.02 |
| 12 |
315AA1000 |
NUT-HEX-FINE,10MM This part replaces 315B1000. Price: $0.59 |
| 13 |
92002-1838 |
BOLT,FLANGED,8X40 This part replaces 92001-1578. Price: $8.19 |
| 14 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 15 |
92005-002 |
GREASE NIPPLE Price: $8.07 |
| 16 |
45014-107 |
SHOCK ABSBR RR Price: $884.48 |
| 17 |
92020-014 |
NUT 12MM Price: $9.45 |
| 18 |
112N1035 |
BOLT-UPSET This part replaces 113N1035. Price: $9.83 |
| 19 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 20 |
461DA1200 |
WASHER-SPRING,12MM This part replaces 461F1200. Price: $1.03 |
| 21 |
410AA1200 |
WASHER-PLAIN-SMALL,12MM This part replaces 410B1200. Price: $0.72 |
| 22 |
45017-001 |
BUSH SHCK ABS RUBBER Price: $12.15 |
| 23 |
45017-011 |
BUSHING,SHCK ABSORBER Price: $24.97 |
| 24 |
45016-003 |
BUSH SHCK ABS PVT SFT Price: $15.92 |
| 25 |
43007-032 |
TORQUE LINK,RR BRAKE Price: $19.02 |
| 26 |
92003-103 |
BOLT TORQUE LINK FITT Price: $7.81 |
| 27 |
411AA1000 |
WASHER-PLAIN,10MM This part replaces 411B1000. Price: $0.96 |
| 28 |
92003-147 |
BOLT,TORQUE LINK Price: $8.22 |
| 29 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 30 |
554DA0800 |
PIN-SNAP This part replaces 554A0800. Price: $1.36 |
