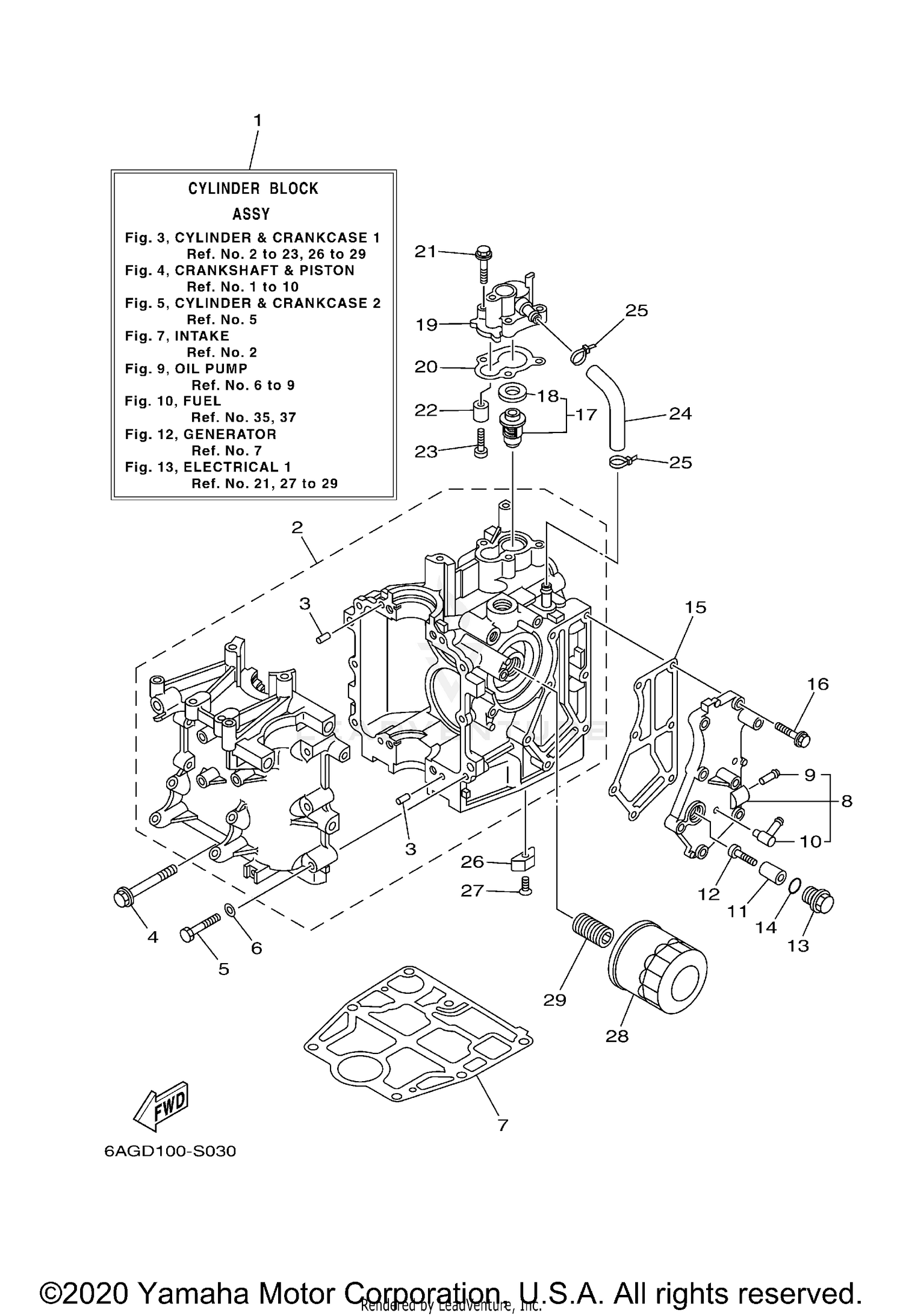

| Ref | Part Number | Description |
|---|
| 1 |
6AH-W009B-03-1S |
CYLINDER BLOCK ASSY Price: $2,637.10 |
| 2 |
6AH-15100-00-00 |
CRANKCASE ASSY Price: $1,769.85 |
| 3 |
93606-12019-00 |
PIN, DOWEL Price: $4.60 |
| 4 |
90119-08093-00 |
BOLT, WITH WASHER Price: $5.50 |
| 5 |
97013-06040-00 |
BOLT Price: $2.20 |
| 6 |
92990-06600-00 |
WASHER, PLATE This part replaces 92903-06600-00. Price: $2.85 |
| 8 |
6AH-41113-01-1S |
OUTER COVER, EXHAUST Price: $79.15 |
| 9 |
6E9-24378-00-00 |
PIPE, JOINT 3 Price: $4.00 |
| 10 |
6H1-11372-00-00 |
NIPPLE, HOSE Price: $52.05 |
| 11 |
6G8-11325-00-00 |
ANODE Price: $3.60 |
| 12 |
98980-05025-00 |
SCREW, BIND Price: $1.40 |
| 13 |
6G8-11197-B0-00 |
PLUG, BLIND This part replaces 6G8-11197-A0-00. Price: $15.99 |
| 14 |
93210-13M63-00 |
O-RING Price: $4.75 |
| 15 |
6AH-41114-00-00 |
GASKET, EXHAUST OUTER COVER Price: $20.70 |
| 16 |
90119-06MA3-00 |
BOLT, WITH WASHER Price: $3.20 |
| 17 |
6AH-12411-00-00 |
THERMOSTAT Price: $47.60 |
| 18 |
688-12412-00-00 |
SEAL, THERMOSTAT Price: $5.65 |
| 19 |
6AH-12413-00-1S |
COVER, THERMOSTAT Price: $44.05 |
| 20 |
6AH-12414-00-00 |
GASKET, COVER Price: $5.45 |
| 21 |
90119-06MA3-00 |
BOLT, WITH WASHER Price: $3.20 |
| 22 |
6G8-11325-00-00 |
ANODE Price: $3.60 |
| 23 |
98980-05025-00 |
SCREW, BIND Price: $1.40 |
| 24 |
6AH-12481-00-00 |
PIPE 1 Price: $9.35 |
| 25 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 26 |
6E5-11325-00-00 |
ANODE Price: $5.50 |
| 27 |
98780-04016-00 |
SCREW, FLAT HEAD Price: $1.49 |
| 28 |
5GH-13440-80-00 |
ELEMENT ASSY, OIL This part replaces 5GH-13440-60-00. Price: $14.99 |
