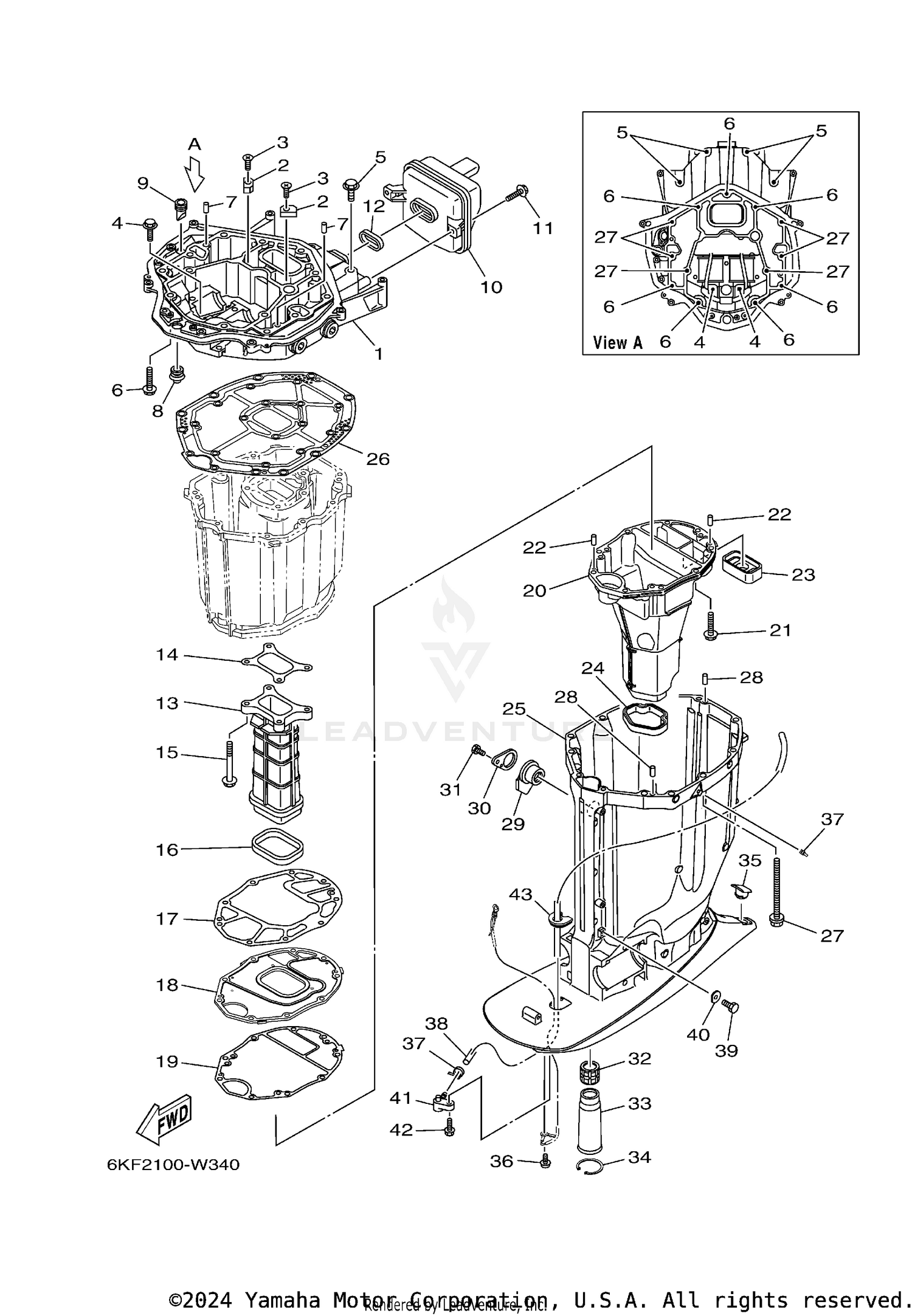

| Ref | Part Number | Description |
|---|
| 1 |
6CE-41137-01-00 |
GUIDE, EXHAUST Price: $774.30 |
| 2 |
63P-11325-11-00 |
ANODE Price: $10.55 |
| 3 |
90151-06M02-00 |
SCREW, COUNTERSUNK Price: $3.55 |
| 4 |
90119-08182-00 |
BOLT, WITH WASHER Price: $5.00 |
| 5 |
97E75-10545-00 |
BOLT, HEXAGON W/W Price: $3.75 |
| 6 |
97E75-10535-00 |
BOLT, HEXAGON W/W Price: $11.10 |
| 7 |
93608-16M16-00 |
PIN, DOWEL Price: $2.85 |
| 8 |
6E5-42724-01-00 |
GROMMET Price: $14.65 |
| 9 |
61A-42717-00-00 |
RUBBER, SEAL 2 Price: $17.60 |
| 10 |
6CB-14750-A0-00 |
SILENCER ASSY Price: $52.65 |
| 11 |
95D95-06020-00 |
BOLT, FLANGE DEEP Price: $5.35 |
| 12 |
6CB-14755-01-00 |
GASKET, SILENCER Price: $3.15 |
| 13 |
6CB-41132-01-00 |
MANIFOLD, EXHAUST Price: $256.10 |
| 14 |
6CB-41134-00-00 |
GASKET, EXHAUST MANIFOLD Price: $6.60 |
| 15 |
97E75-08560-00 |
BOLT, HEXAGON W/W Price: $7.15 |
| 16 |
6CB-41138-00-00 |
SEAL, EXT. 1 Price: $13.00 |
| 17 |
6CB-41135-00-00 |
GASKET, EXHAUST MANIFOLD Price: $28.25 |
| 18 |
6KA-45181-00-00 |
PLATE Price: $1,087.10 |
| 19 |
6CE-41136-00-00 |
GASKET, EXHAUST MANIFOLD 4 Price: $21.60 |
| 20 |
6KA-14711-00-00 |
MUFFLER 1 Price: $469.50 |
| 21 |
97E75-08535-00 |
BOLT, HEXAGON W/W Price: $3.75 |
| 22 |
93606-19M23-00 |
PIN, DOWEL Price: $2.55 |
| 23 |
6CE-45127-00-00 |
SEAL Price: $7.90 |
| 24 |
6CE-45123-00-00 |
GASKET, MUFFLER Price: $21.40 |
| 26 |
6CB-45113-10-00 |
GASKET, UPPER CASING Price: $64.15 |
| 27 |
90119-10007-00 |
BOLT, WITH WASHER Price: $29.25 |
| 28 |
93608-16M16-00 |
PIN, DOWEL Price: $2.85 |
| 29 |
6BB-15316-01-00 |
DAMPER 1 Price: $14.75 |
| 30 |
6BB-45152-01-00 |
COVER, UPPER CASING 2 Price: $32.65 |
| 31 |
97D95-06012-00 |
BOLT, HEXAGON DEEP Price: $0.70 |
| 32 |
69J-45318-01-00 |
BUSHING, DRIVE SHAFT Price: $101.50 |
| 33 |
6KA-46153-00-00 |
COLLAR, GUIDE Price: $20.20 |
| 34 |
93420-50093-00 |
CIRCLIP Price: $8.60 |
| 35 |
61A-45155-01-00 |
CAP Price: $3.00 |
| 36 |
95D95-06010-00 |
BOLT, FLANGE DEEP Price: $0.80 |
| 38 |
6KF-46894-00-00 |
HOSE Price: $9.05 |
| 39 |
97D95-06010-00 |
BOLT, HEXAGON DEEP Price: $0.70 |
| 40 |
90201-06M02-00 |
WASHER, PLATE Price: $2.55 |
| 41 |
63P-45379-00-00 |
NIPPLE, HOSE Price: $7.40 |
| 42 |
90119-06287-00 |
BOLT, WITH WASHER Price: $1.15 |
