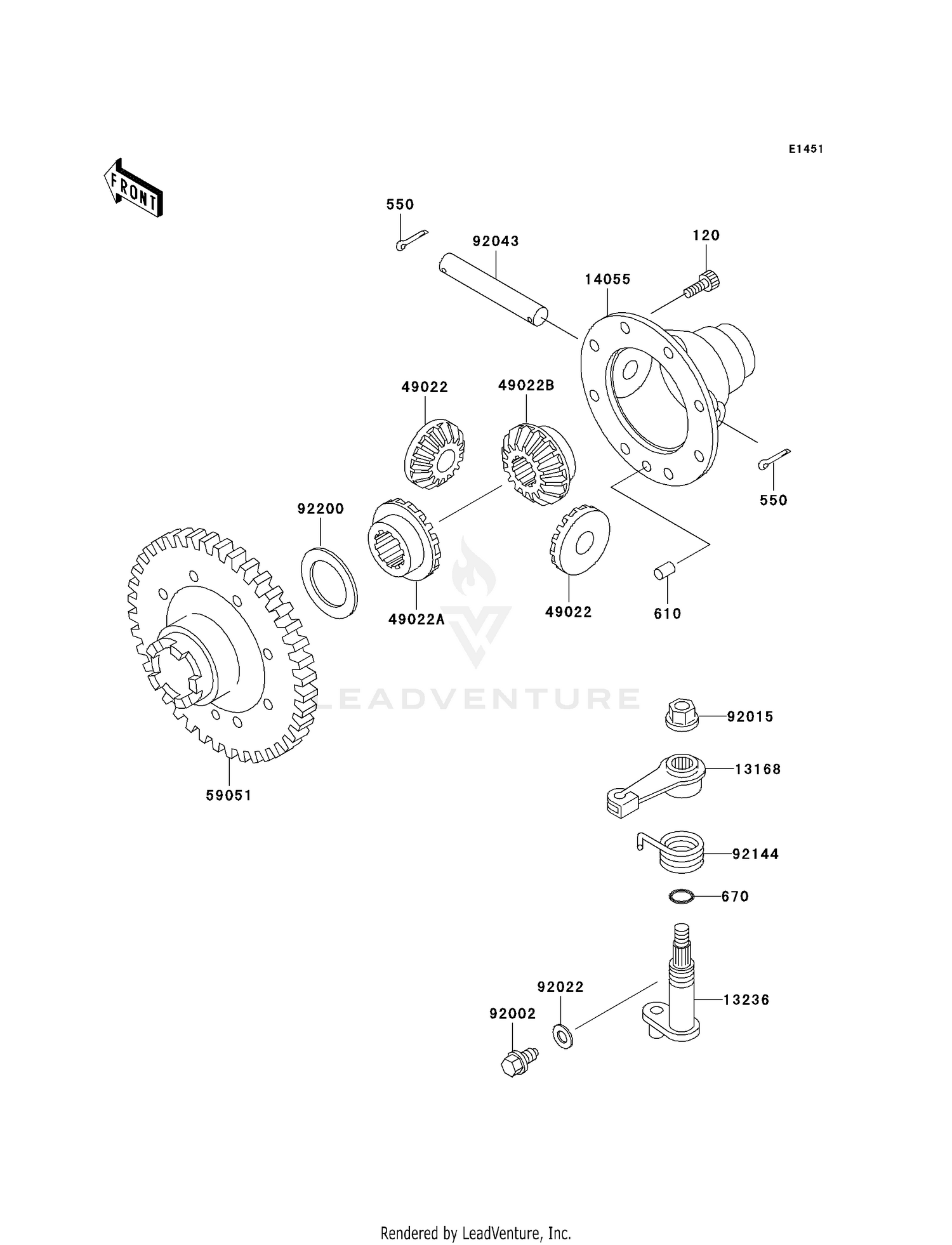

DIFFERENTIAL

DIFFERENTIAL

Parts (16)

RefPart NumberDescription
120 120CA0820 BOLT-SOCKET,8X20 This part replaces 120P0820. Price: $4.45
550 550AA2520 PIN-COTTER,2.5X20 This part replaces 550D2520. Price: $1.36
610 610A0812 ROLLER,8X12 Price: $3.71
670 670B2010 O RING,10MM Price: $1.50
13168 13168-1523 LEVER,DIFF LOCK Price: $22.78
13236 13236-1219 LEVER-COMP,DIFF LOCK Price: $24.07
14055 14055-1098 CASE-GEAR,DIFFERENTIA Price: $383.41
49022 49022-1105 GEAR-BEVEL,10T Price: $85.34
49022A 49022-1117 GEAR-BEVEL,16T Price: $154.15
49022B 49022-1120 GEAR-BEVEL,16T Price: $153.65
59051 59051-1239 GEAR,DIFFERENTIAL,67T Price: $386.97
92002 92002-1962 BOLT,FLANGED-SMALL,6X8.1X2.5 Price: $4.12
92015 92015-1406 NUT,FLANGED,8MM Price: $4.45
92022 92022-077 WASHER,6.1X12X1 Price: $3.99
92043 92043-1458 PIN,BEVEL GEAR Price: $19.13
92144 92145-0253 SPRING This part replaces 92144-1198. Price: $10.97
