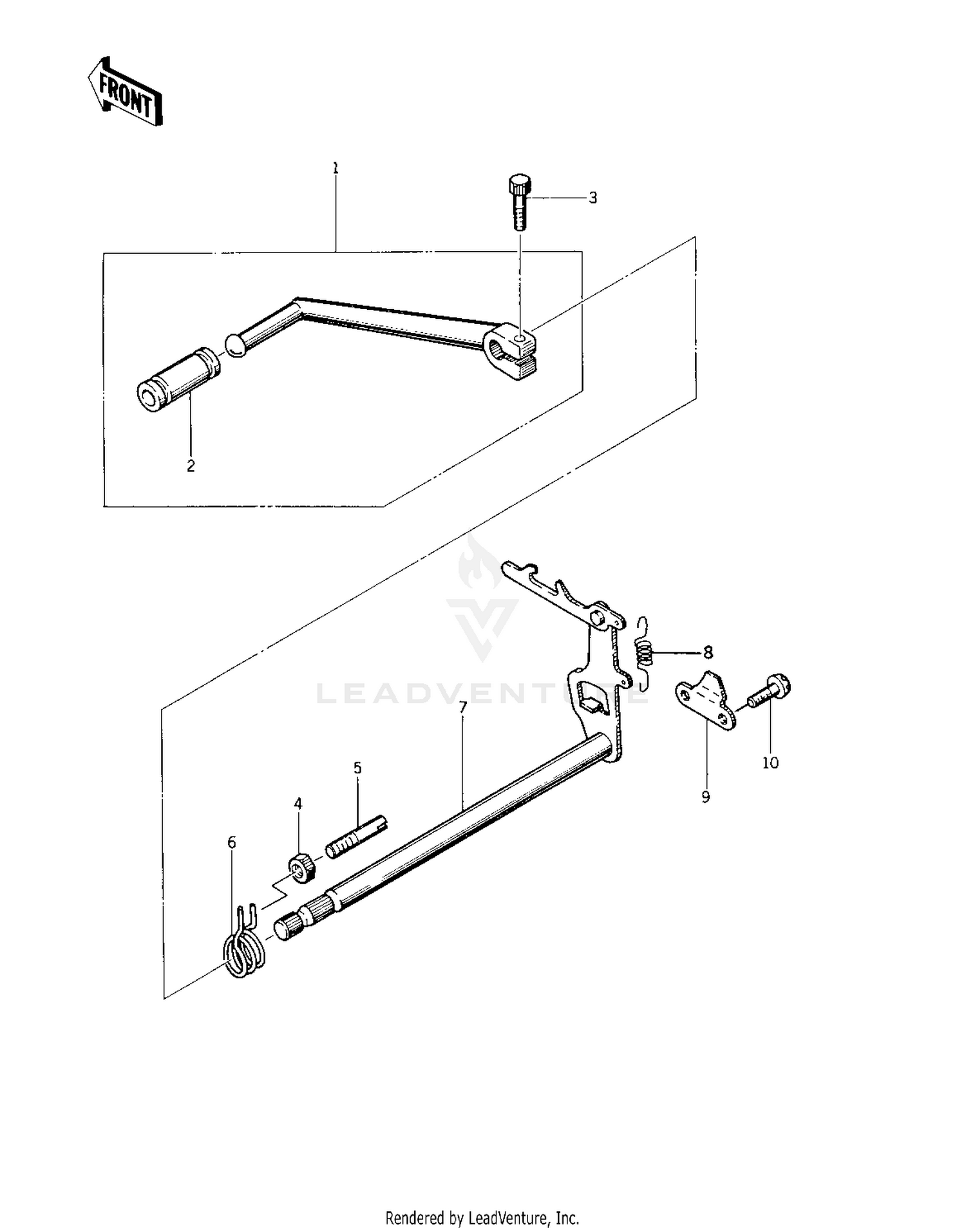

GEAR CHANGE MECHANISM
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 92161-1532 | DAMPER,CHANGE PEDAL This part replaces 13157-004. Price: $6.24 |
| 3 | 112BA0620 | BOLT-UPSET This part replaces 112G0620. Price: $2.28 |
| 4 | 318AA0800 | NUT-HEX-SMALL,8MM This part replaces 312B0800. Price: $0.59 |
| 5 | 92043-057 | PIN CHANGE PEDAL SPRG Price: $8.72 |
| 6 | 92083-021 | SPRING,CHG PEDL RTN Price: $20.78 |
| 7 | 13161-034 | LEVER ASY,GEAR SHIFT Price: $66.17 |
| 8 | 92144-1720 | SPRING,CHANGE LEVER Price: $4.74 |
| 9 | 13169-011 | PLATE,GEAR SHIFT LEV Price: $8.22 |
