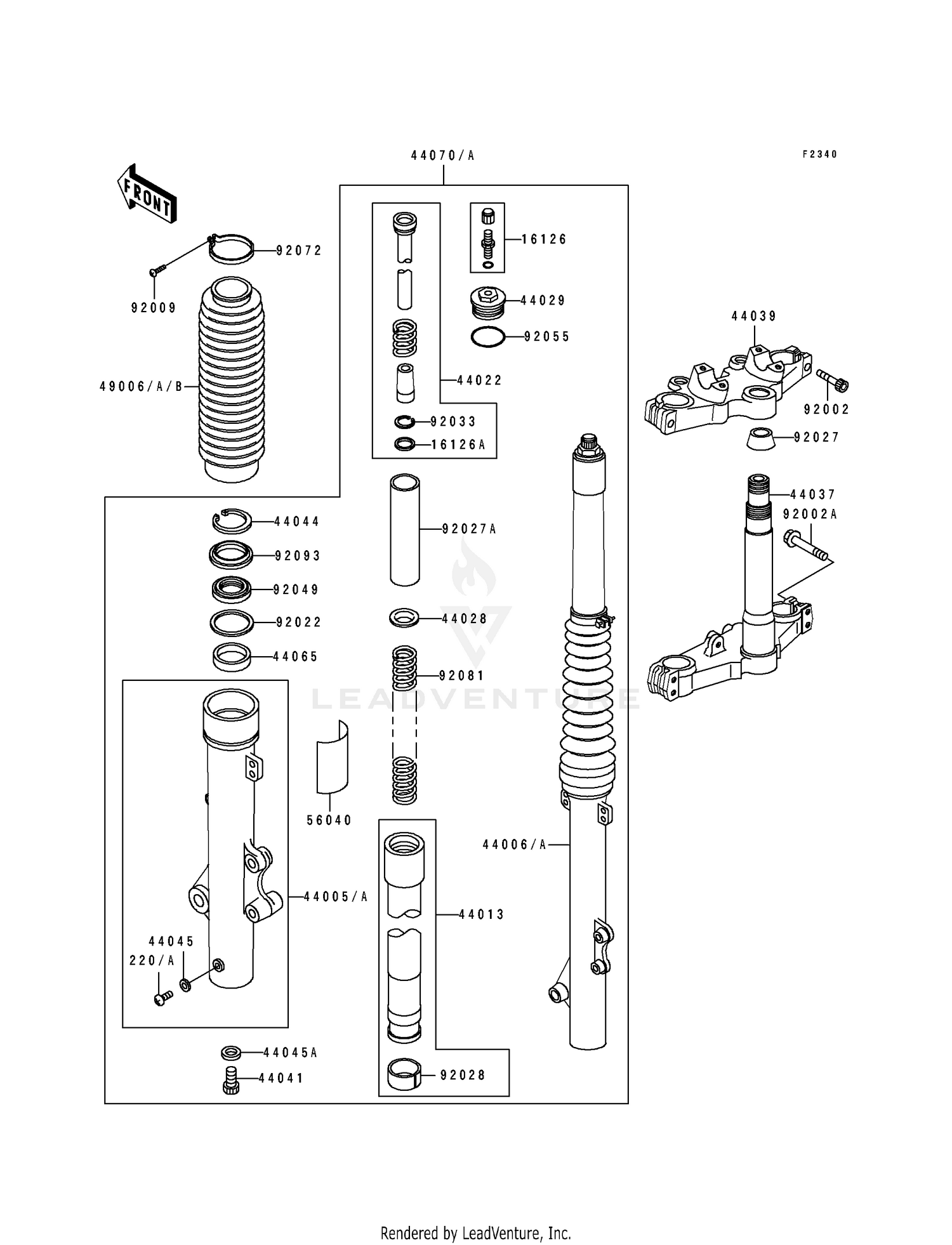

| Ref | Part Number | Description |
|---|
| 16126 |
16126-1052 |
VALVE AIR Price: $35.06 |
| 16126A |
16126-1123 |
VALVE,FORK CYLINDER Price: $36.12 |
| 44005A |
44005-1334 |
PIPE-LEFT FORK OUTER Price: $457.11 |
| 44006A |
44006-1332 |
PIPE-RIGHT FORK OUTER Price: $379.04 |
| 44013 |
44013-1224 |
PIPE-FORK INNER Price: $393.67 |
| 44022 |
44022-1175 |
CYLINDER-FORK Price: $189.81 |
| 44028 |
44028-1004 |
GUIDE,FORK SPRING Price: $11.28 |
| 44029 |
44029-1119 |
SEAT-FORK SPRING Price: $58.19 |
| 44037 |
44037-1178 |
HOLDER-FORK UNDER Price: $375.58 |
| 44039 |
44039-1121 |
HOLDER-FORK UPPER Price: $223.13 |
| 44041 |
44041-040 |
BOLT,SOCKET,FORK CYLINDER Price: $6.57 |
| 44044 |
92033-1100 |
RING-SNAP,FORK OIL This part replaces 44044-015. Price: $14.94 |
| 44045 |
44045-002 |
GASKET,FORK DRAIN PLUG Price: $5.18 |
| 44045A |
44045-057 |
GASKET,FORK CYLINDER Price: $4.86 |
| 44065 |
44065-1016 |
BUSHING-FRONT FORK Price: $26.16 |
| 44070A |
44070-5140 |
DAMPER-ASSY Price: $1,055.56 |
| 49006 |
49006-1009-SR |
BOOT,FORK,S.GRAY Price: $95.72 |
| 56040 |
56040-1120 |
LABEL,FRONT FORK Price: $6.10 |
| 92002 |
92002-1277 |
BOLT,SOCKET,8X32 Price: $9.49 |
| 92002A |
92002-1476 |
BOLT,FLANGED,8X40 Price: $11.51 |
| 92009 |
92009-1348 |
SCREW Price: $5.18 |
| 92022 |
92022-1275 |
WASHER,FRONT FORK Price: $7.34 |
| 92027 |
92027-1791 |
COLLAR,UPPER BRACKET Price: $65.90 |
| 92027A |
92027-1872 |
COLLAR,L=165 Price: $43.78 |
| 92028 |
44065-1059 |
BUSHING-FRONT FORK,IN This part replaces 92028-1354. Price: $21.70 |
| 92033 |
92033-1004 |
RING-SNAP,FORK CYLIND Price: $8.94 |
| 92049 |
92049-1216 |
SEAL-OIL,FORK OUTER P Price: $23.21 |
| 92055 |
92055-1051 |
RING-O,FORK TOP CAP Price: $5.52 |
| 92072 |
92072-1168 |
BAND,BOOT This part replaces 92072-1008. Price: $10.93 |
| 92081 |
92081-1825 |
SPRING,FRONT FORK Price: $72.14 |
| 92093 |
92093-1181 |
SEAL,FORK OUTER PIPE Price: $19.56 |
