| Ref | Part Number | Description |
|---|
| 10b |
505071781 |
Ski Bushing Price: $16.18 |
| 10c |
505071812 |
Retainer 17mm long Price: $6.09 |
| 10d |
505073388 |
Red, Handle Price: $42.99 |
| 10e |
505072133 |
Retainer 23mm Long Price: $6.89 |
| 10f |
860201044 |
Carbide Runner Kit (Square Runner) Price: $129.99 |
| 10g |
233281414 |
Hex. Flange Elastic Nut M8 Price: $1.49 |
| 15a |
505073784 |
Ski Tip Price: $52.99 |
| 15b |
250000770 |
Hex. Socket Screw M6 X 20 Price: $2.09 |
| 15c |
233261466 |
Hex. Flange Elastic Nut M6 Price: $2.09 |
| 130 |
130CB1040 |
BOLT-FLANGED,10X40 Price: $6.41 |
| 200 |
250000703 |
Hex. Screw M10 X 130 Price: $10.99 |
| 210 |
505073691 |
Ski Axle Price: $14.49 |
| 220 |
732900049 |
Washer Price: $0.60 |
| 230 |
233201414 |
Hex. Flange Elastic Nut M10 Price: $1.59 |
| 250 |
505074138 |
Ski Stopper Price: $31.99 |
| 320 |
505072690 |
Leg Bushing Price: $12.49 |
| 330 |
503193651 |
Spacer Price: $9.89 |
| 420 |
505072208 |
Bushing Price: $3.28 |
| 440 |
505072634 |
Wear Plate Price: $6.39 |
| 445 |
505072448 |
O-Ring Price: $2.39 |
| 450 |
250001024 |
Screw Hex. M10 X 70 Price: $2.19 |
| 455 |
250001024 |
Screw Hex. M10 X 70 Price: $2.19 |
| 470 |
505073723 |
Wear Plate Price: $6.29 |
| 480 |
505073844 |
Plate Price: $2.39 |
| 520 |
505072250 |
Bushing Price: $3.28 |
| 530 |
505072143 |
Sleeve Price: $9.00 |
| 540 |
250001023 |
Screw Hex. M10 X 60 Price: $2.19 |
| 545 |
250100165 |
Hex. Flange Elastic Nut M10 Price: $0.87 |
| 550 |
250001023 |
Screw Hex. M10 X 60 Price: $2.19 |
| 555 |
250100165 |
Hex. Flange Elastic Nut M10 Price: $0.87 |
| 660 |
503189564 |
Washer Price: $0.76 |
| 670 |
505072392 |
Washer Price: $4.89 |
| 680 |
250100165 |
Hex. Flange Elastic Nut M10 Price: $0.87 |
| 685 |
250100165 |
Hex. Flange Elastic Nut M10 Price: $0.87 |
| 690 |
505072448 |
O-Ring Price: $2.39 |
| 800 |
505075485 |
Stabilizer Bar This part replaces 505073847. Price: $75.99 |
| 810 |
505072786 |
Bushing Price: $9.23 |
| 830 |
505073752 |
Stabilisator Lever Price: $18.49 |
| 840 |
207663056 |
Hex. Flange Screw M6 X 1.0 X 30 Price: $4.49 |
| 850 |
233261466 |
Hex. Flange Elastic Nut M6 Price: $2.09 |
| 860 |
505073172 |
Double Ball Joint Link Price: $56.99 |
| 865 |
860200811 |
Double Ball Joint Link This part replaces 505073703. Price: $93.99 |
| 870 |
207663056 |
Hex. Flange Screw M6 X 1.0 X 30 Price: $4.49 |
| 880 |
233261466 |
Hex. Flange Elastic Nut M6 Price: $2.09 |
| 1120 |
505072753 |
Adjustment Knob Price: $2.29 |
| 1130 |
250000644 |
Allen Screw M3 X 0.5 X 10 Price: $2.19 |
| 1140 |
503193033 |
Shock Adjuster Knob Price: $11.49 |
| 1150 |
250000644 |
Allen Screw M3 X 0.5 X 10 Price: $2.19 |
| 1170 |
250000824 |
Hex. Flange Screw M8 X 58 Price: $2.19 |
| 1180 |
250000824 |
Hex. Flange Screw M8 X 58 Price: $2.19 |
| 1190 |
233281414 |
Hex. Flange Elastic Nut M8 Price: $1.49 |
| 1230 |
503192491 |
Washer Price: $4.69 |
| 1240 |
232521464 |
Hex Elastic Nut M12 X 1.25 Price: $2.19 |
| 1300 |
293370070 |
Circlip Price: $9.19 |
| 1400 |
505072913 |
Upper Ball Joint Price: $72.99 |

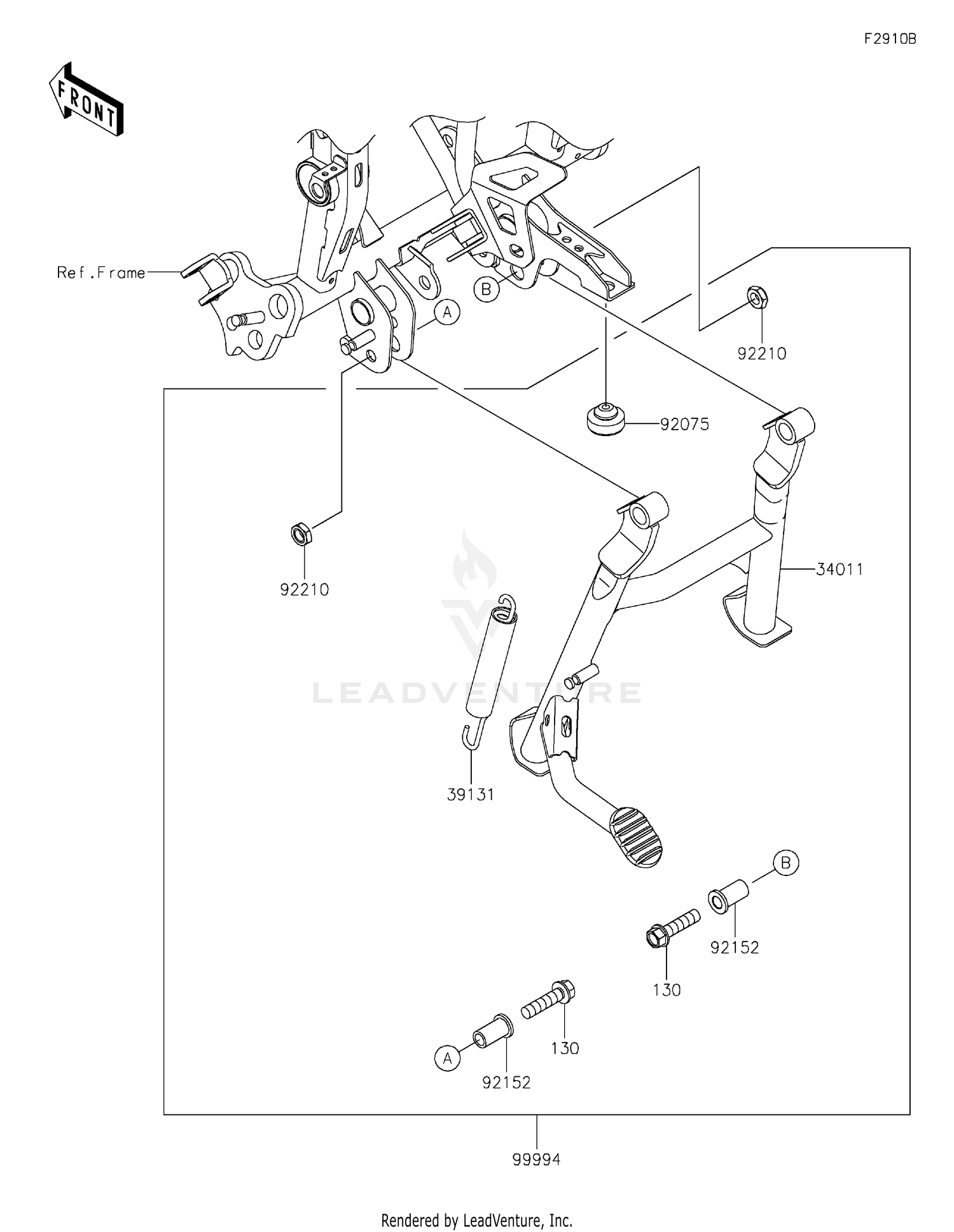

| 34011 |
34011-0036 |
STAND-CENTER Price: $410.39 |
| 39131 |
39131-0001 |
SPRING-ASSY Price: $15.74 |
| 92075 |
92075-1045 |
DAMPER Price: $8.86 |
| 92152 |
92152-2350 |
COLLAR,10.2X14.7X28.8 Price: $11.02 |
| 92210 |
92210-0784 |
NUT,LOCK,10MM Price: $5.98 |
