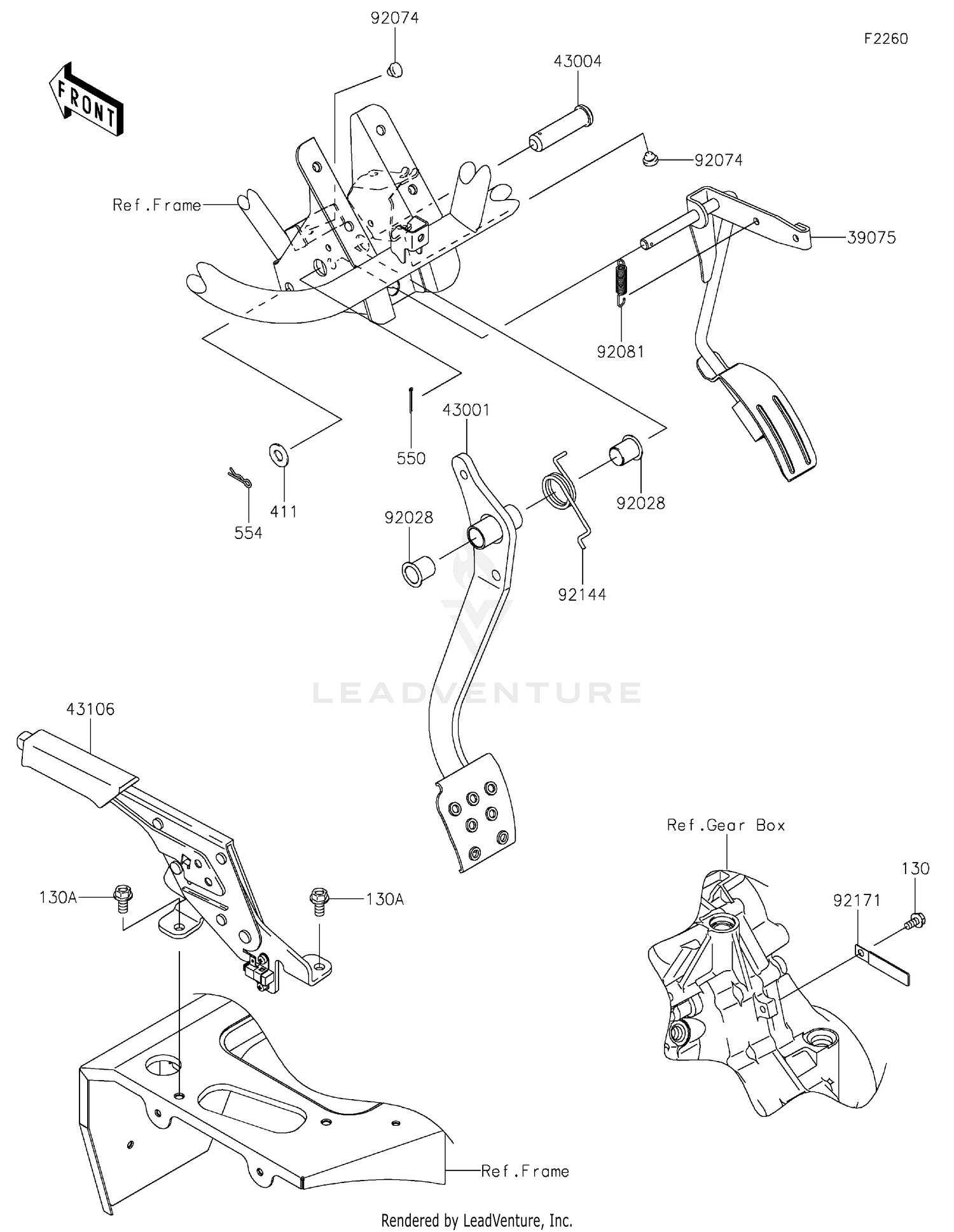

Brake Pedal/Throttle Lever
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 130 | 130AA0612 | BOLT-FLANGED,6X12 Price: $0.68 |
| 130A | 130CA0816 | BOLT-FLANGED,8X16 Price: $2.49 |
| 411 | 411AA1000 | WASHER-PLAIN,10MM Price: $0.96 |
| 550 | 550AA2525 | PIN-COTTER,2.5X25 Price: $1.36 |
| 39075 | 39075-0022 | LEVER-THROTTLE Price: $29.43 |
| 43001 | 43001-0807 | LEVER-BRAKE,PEDAL This part replaces 43001-0751. Price: $40.64 |
| 43004 | 43004-1128 | SHAFT-BRAKE Price: $17.76 |
| 43106 | 43106-0009 | LEVER-ASSY-PARKING BRAKE Price: $108.71 |
| 92028 | 92028-1571 | BUSHING Price: $10.67 |
| 92074 | 92074-028 | PLUG,7X2 Price: $4.26 |
| 92081 | 92081-1922 | SPRING Price: $6.16 |
| 92144 | 92144-1536 | SPRING Price: $8.30 |
| 92171 | 92171-0652 | CLAMP,L=60 Price: $2.61 |
