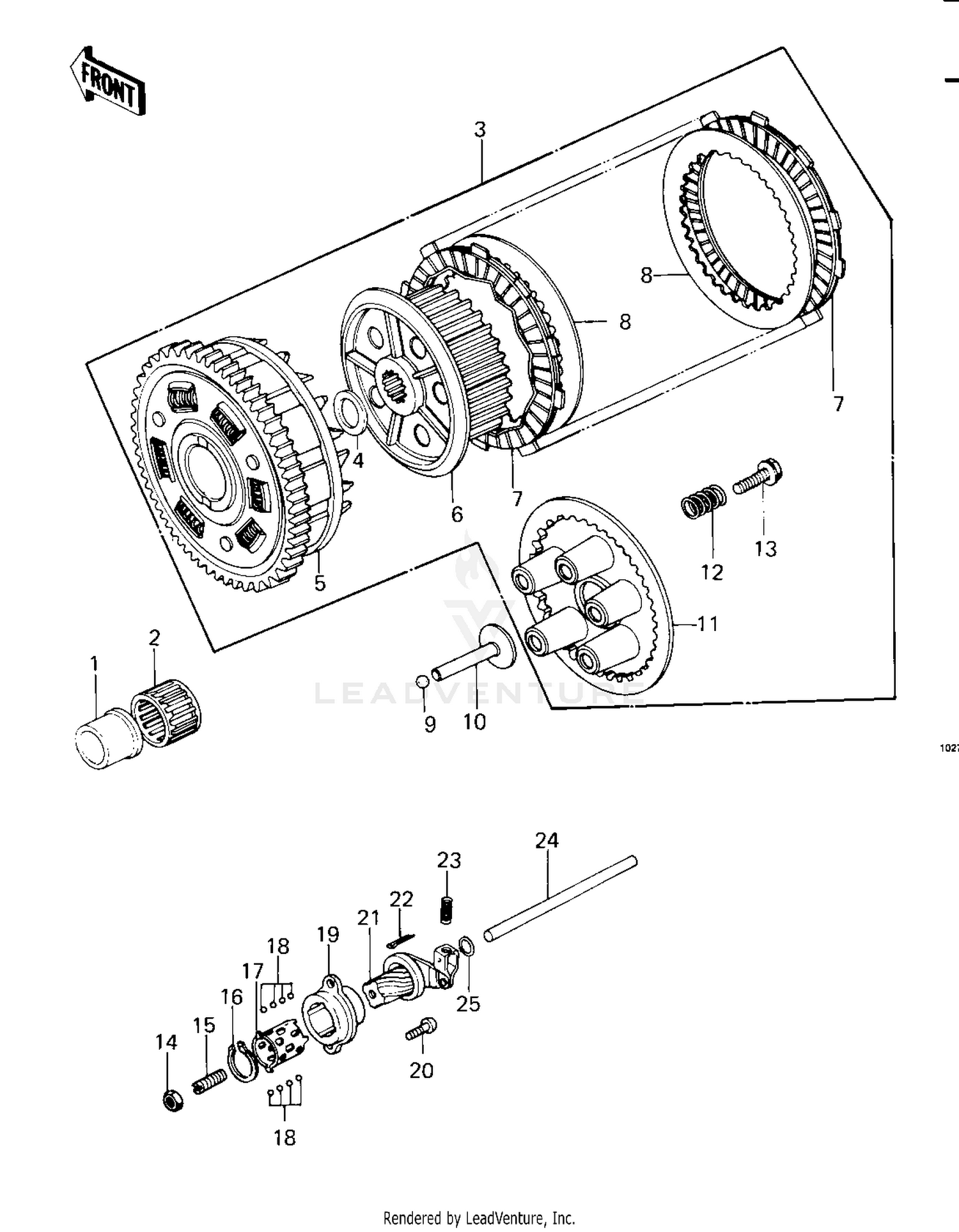

| Ref | Part Number | Description |
|---|
| 1 |
92028-135 |
BUSHING,CLUTCH Price: $54.55 |
| 3 |
13081-1014 |
CLUTCH-ASSY Price: $587.76 |
| 4 |
92026-022 |
SPACER,25.5X47X2.5 Price: $9.91 |
| 5 |
13081-1367 |
CLUTCH-ASSY Price: $587.76 |
| 6 |
13081-1367 |
CLUTCH-ASSY Price: $587.76 |
| 7 |
13088-030 |
PLATE,CLUTCH FRICTION Price: $26.17 |
| 8 |
13089-022 |
PLATE,CLUTCH STEEL Price: $19.11 |
| 10 |
13116-022 |
PUSHER,CLUTCH SPRG PL Price: $26.40 |
| 11 |
13187-006 |
PLATE,CLUTCH SPRING Price: $70.30 |
| 12 |
92081-1033 |
SPRING,CLUTCH Price: $7.38 |
| 13 |
92001-1066 |
BOLT,FLANGED,6X18 Price: $6.22 |
| 14 |
318AA0800 |
NUT-HEX-SMALL,8MM This part replaces 318B0800. Price: $0.59 |
| 15 |
92014-014 |
SCREW,SLOTTED,8X25 Price: $6.35 |
| 16 |
480J1500 |
CIRCLIP-TYPE-C,15MM Price: $2.31 |
| 17 |
13197-004 |
RETAINER Price: $1.17 |
| 18 |
600A0400 |
BALL,STEEL,1/8" Price: $1.96 |
| 19 |
13118-011 |
OUTER,CLUTCH RELEASE Price: $23.27 |
| 20 |
220AA0616 |
SCREW-PAN-CROS,6X16 This part replaces 220B0616. Price: $3.04 |
| 21 |
13231-014 |
RELEASE ASSY,CLUTCH This part replaces 13102-019. Price: $57.14 |
| 22 |
550AA1615 |
PIN-COTTER,1.6X15 This part replaces 550D1615. Price: $2.51 |
| 23 |
92081-069 |
SPRING-CLUTCH RELEASE Price: $7.51 |
| 24 |
13116-021 |
PUSH ROD,CLUTCH Price: $29.69 |
