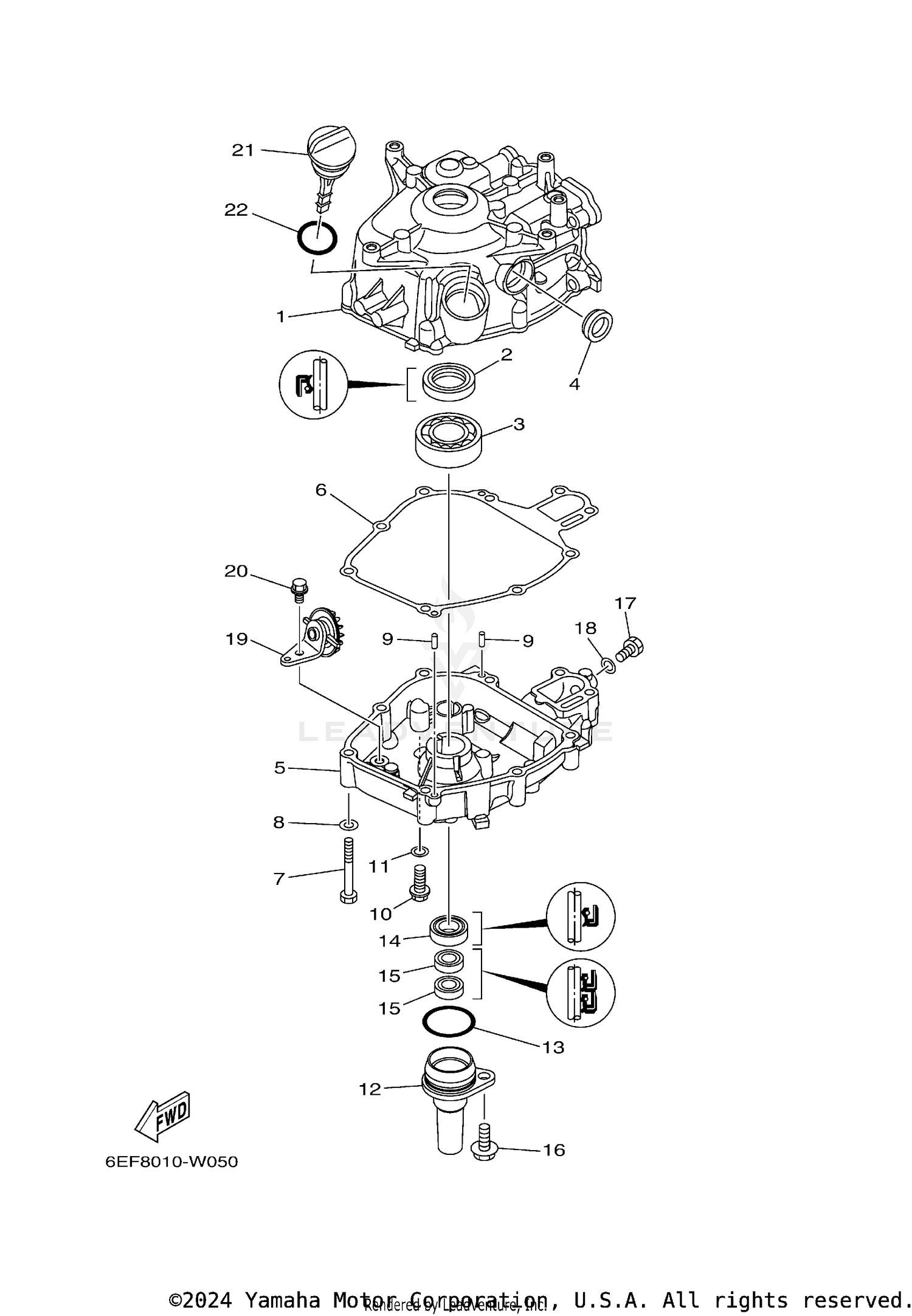

| Ref | Part Number | Description |
|---|
| 1 |
6EG-E1311-00-1S |
CYLINDER 1 Price: $221.35 |
| 2 |
93102-20108-00 |
OIL SEAL This part replaces 93102-20814-00. Price: $12.49 |
| 3 |
93306-27210-00 |
BEARING This part replaces 93306-272Y2-00. Price: $26.99 |
| 4 |
3Y6-15361-00-00 |
GAUGE, LEVEL Price: $35.99 |
| 5 |
6EG-15111-00-1S |
CRANKCASE 1 This part replaces 6EG-E5111-00-1S. Price: $163.40 |
| 6 |
6EG-11351-00-00 |
GASKET, CYLINDER Price: $38.55 |
| 7 |
97013-06045-00 |
BOLT Price: $1.80 |
| 8 |
92990-06600-00 |
WASHER, PLATE This part replaces 92903-06600-00. Price: $2.85 |
| 9 |
93604-10M03-00 |
PIN, DOWEL This part replaces 93604-12M07-00. Price: $5.20 |
| 10 |
90105-08M76-00 |
BOLT, FLANGE Price: $7.49 |
| 11 |
90201-08818-00 |
WASHER, PLATE Price: $7.15 |
| 12 |
6EG-15396-00-CA |
HOUSING, OIL SEAL This part replaces 6EG-E5396-00-CA. Price: $36.15 |
| 13 |
93210-35537-00 |
O-RING This part replaces 93210-35803-00. Price: $15.49 |
| 14 |
93102-20108-00 |
OIL SEAL This part replaces 93102-20814-00. Price: $12.49 |
| 15 |
93102-09800-00 |
OIL SEAL Price: $14.60 |
| 16 |
97E95-08520-00 |
BOLT, HEXAGON W/W Price: $1.50 |
| 17 |
97D95-08014-00 |
BOLT, HEXAGON DEEP Price: $1.10 |
| 18 |
90430-08143-00 |
GASKET Price: $3.35 |
| 19 |
6EG-E3102-00-00 |
GEAR UNIT ASSY Price: $10.90 |
| 20 |
95817-06012-00 |
BOLT, FLANGE Price: $1.95 |
| 21 |
6EG-15362-00-00 |
PLUG, OIL LEVEL This part replaces 6EG-E5362-10-00. Price: $21.30 |
