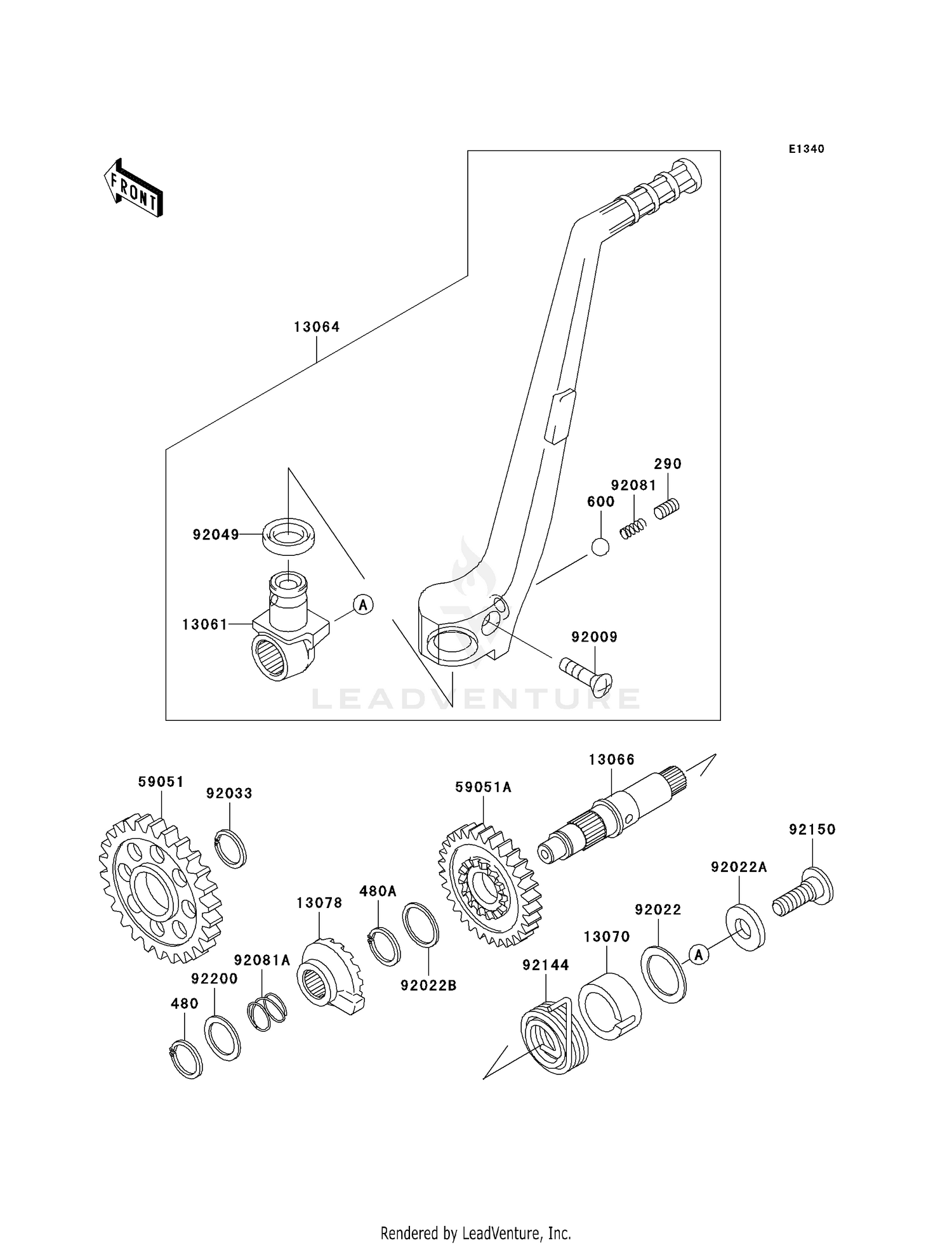

| Ref | Part Number | Description |
|---|
| 290 |
290CA0812 |
SCREW-SET-SOCKET,8X12 This part replaces 290P0812. Price: $3.55 |
| 480 |
480J1600 |
CIRCLIP-TYPE-C,16MM Price: $4.31 |
| 480A |
480J1800 |
CIRCLIP-TYPE-C,18MM Price: $1.28 |
| 600 |
600A0800 |
BALL-STEEL,1/4 Price: $0.62 |
| 13061 |
13061-0057 |
BOSS This part replaces 13061-1818. Price: $89.26 |
| 13064 |
13064-1202 |
LEVER-ASSY-KICK,PEDAL Price: $139.31 |
| 13066 |
13066-1107 |
SHAFT-KICK Price: $135.16 |
| 13070 |
13070-1378 |
GUIDE,KICK SPRING Price: $20.74 |
| 13078 |
13078-1063 |
RATCHET Price: $87.78 |
| 59051 |
59051-1271 |
GEAR,KICKSTARTER IDLE Price: $126.85 |
| 59051A |
59051-1339 |
GEAR-SPUR,KICK STARTE Price: $140.73 |
| 92009 |
92172-1088 |
SCREW,6X30 This part replaces 92009-1590. Price: $4.67 |
| 92022 |
92022-1885 |
WASHER Price: $4.31 |
| 92022A |
92022-1944 |
WASHER,10X22X3.2 Price: $5.00 |
| 92022B |
92022-271 |
WASHER,18.3X22X0.5 Price: $5.52 |
| 92033 |
92033-029 |
RING-SNAP,18MM Price: $9.82 |
| 92049 |
92049-1387 |
SEAL-OIL,KICK PEDAL Price: $6.22 |
| 92081 |
92081-020 |
SPRING,KICK PEDAL Price: $4.26 |
| 92081A |
92081-122 |
SPRING,RATCHET Price: $8.79 |
| 92144 |
92145-1517 |
SPRING,KICKSTARTER This part replaces 92144-1076. Price: $26.59 |
| 92150 |
92150-1858 |
BOLT,8X25 Price: $7.84 |
