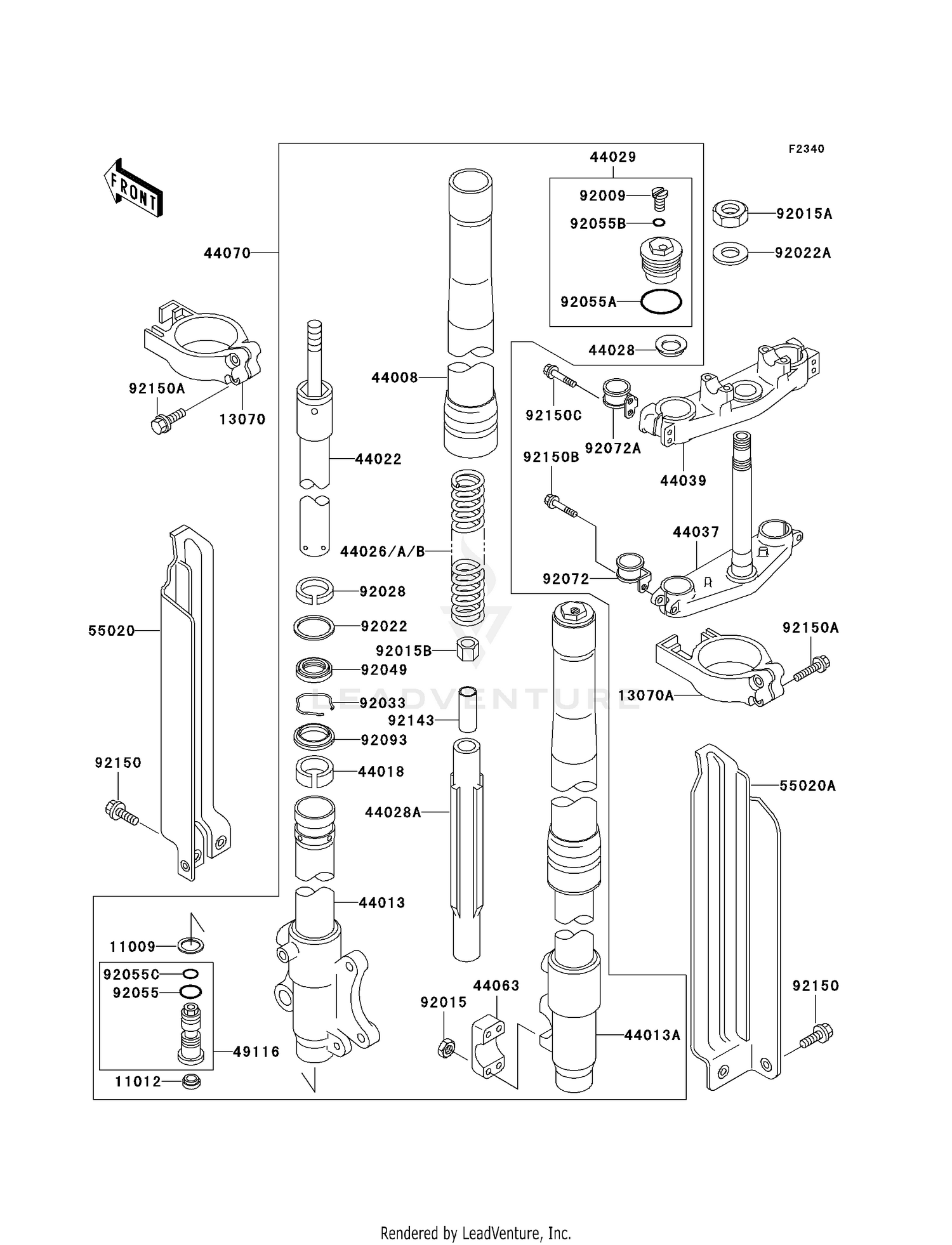

| Ref | Part Number | Description |
|---|
| 11009 |
11009-1592 |
GASKET,FORK CYLINDER BOLT Price: $6.16 |
| 11012 |
11012-1381 |
CAP,FORK CYLINDER Price: $6.11 |
| 13070 |
13070-1263-RZ |
GUIDE,FORK,LH,WHITE Price: $35.12 |
| 13070A |
13070-1264-RZ |
GUIDE,FORK,RH,WHITE Price: $35.12 |
| 44008 |
44008-1028-14 |
PIPE-FORK OUTER,GOLD Price: $838.77 |
| 44013 |
44013-1387 |
PIPE-FORK INNER,LH Price: $607.28 |
| 44013A |
44013-1388 |
PIPE-FORK INNER,RH Price: $607.28 |
| 44018 |
44018-1056 |
PISTON-FORK,INNER PIPE Price: $28.45 |
| 44022 |
44022-1314 |
CYLINDER-FORK Price: $396.02 |
| 44026B |
44026-1603 |
SPRING-FRONT FORK,K=0 Price: $104.36 |
| 44028 |
44028-1081 |
GUIDE-FORK SPRING Price: $12.12 |
| 44028A |
44028-1084 |
GUIDE-FORK SPRING Price: $12.85 |
| 44029 |
44029-1149 |
SEAT-FORK SPRING Price: $123.28 |
| 44037 |
44037-1291 |
HOLDER-FORK UNDER Price: $742.74 |
| 44039 |
44039-1240 |
HOLDER-FORK UPPER Price: $325.95 |
| 44063 |
44063-1056 |
HOLDER-FRONT AXLE Price: $55.31 |
| 44070 |
44070-1565-14 |
DAMPER-ASSY,FORK,GOLD Price: $2,745.98 |
| 49116 |
49116-1145 |
VALVE-ASSY,FORK Price: $177.89 |
| 55020 |
55020-0132-RZ |
GUARD,FORK,LH,WHITE This part replaces 55020-1363-RZ. Price: $44.03 |
| 55020A |
55020-0005-RZ |
GUARD,FORK,RH,WHITE This part replaces 55020-1423-RZ. Price: $27.21 |
| 92009 |
92009-1568 |
SCREW Price: $7.21 |
| 92015 |
92210-0630 |
NUT,FLANGED,6MM This part replaces 92015-1078. Price: $2.00 |
| 92015A |
92210-1521 |
NUT,STEERING STEM,22MM This part replaces 92015-1653. Price: $16.69 |
| 92015B |
92015-1839 |
NUT Price: $19.64 |
| 92022 |
92022-1299 |
WASHER Price: $8.58 |
| 92022A |
92022-1873 |
WASHER,STEERING STEM Price: $7.45 |
| 92028 |
92028-1581 |
BUSHING Price: $21.80 |
| 92033 |
92033-1077 |
RING-SNAP Price: $4.96 |
| 92049 |
92049-1373 |
SEAL-OIL Price: $28.98 |
| 92055 |
670B2018 |
O RING,18MM This part replaces 92055-1156. Price: $1.42 |
| 92055A |
92055-1333 |
RING-O,FORK,AIR TUBE Price: $6.00 |
| 92055B |
92055-1441 |
RING-O,2.8X6.6X1.9 Price: $2.93 |
| 92055C |
92055-1502 |
RING-O,FORK VALVE Price: $7.45 |
| 92072 |
92072-1267 |
BAND Price: $20.92 |
| 92072A |
92072-1268 |
BAND Price: $23.46 |
| 92093 |
92093-1342 |
SEAL,FORK OUTER TUBE Price: $18.72 |
| 92143 |
92143-1643 |
COLLAR,FORK Price: $23.48 |
| 92150 |
92150-1340 |
BOLT,6X14 Price: $5.07 |
| 92150A |
92150-1434 |
BOLT,5X40 Price: $4.60 |
| 92150B |
92150-1446 |
BOLT,FLANGED,8X40 Price: $12.68 |
