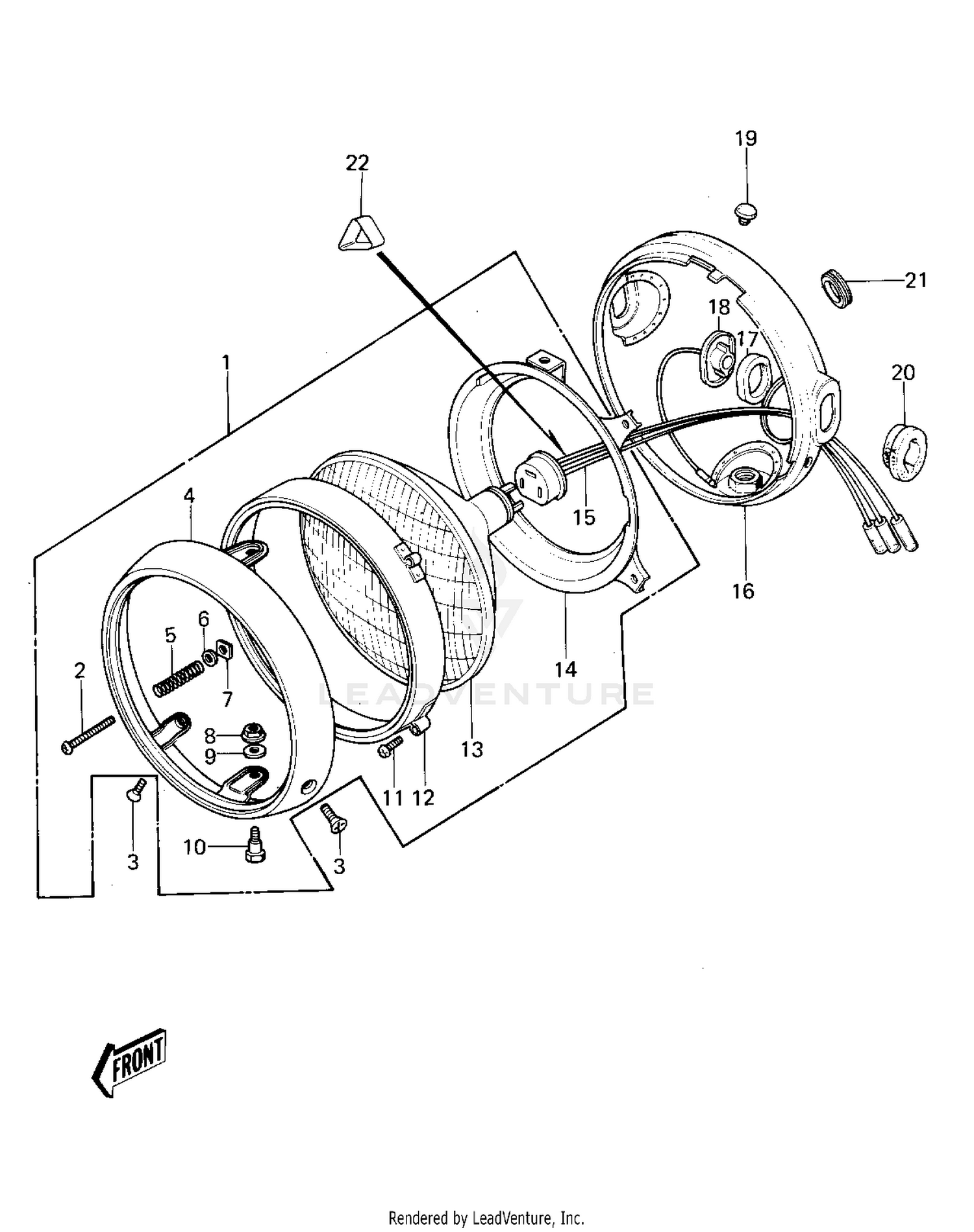

| Ref | Part Number | Description |
|---|
| 2 |
23019-021 |
SCREW FORCUS ADJUST Price: $4.69 |
| 3 |
92172-0145 |
SCREW,5X14 This part replaces 23019-022. Price: $2.12 |
| 4 |
23006-038 |
RIM,HEAD LAMP Price: $119.57 |
| 5 |
23014-005 |
SPRING FOCUS ADJUST Price: $3.62 |
| 6 |
23021-004 |
WASHER Price: $2.91 |
| 7 |
23020-018 |
NUT,4MM,FOCUS ADJUST Price: $4.65 |
| 8 |
23020-023 |
NUT,HEAD LAMP RIM FIT Price: $5.45 |
| 9 |
23021-012 |
WASHER-PLAIN,5MM Price: $5.43 |
| 10 |
23019-023 |
SCREW-PAN HEAD,5X12 Price: $5.43 |
| 12 |
23072-001 |
RING,HEAD LAMP MOUNT Price: $44.17 |
| 14 |
23074-001 |
RING,HEAD LAMP MOUNT Price: $64.65 |
| 15 |
23008-037 |
SOCKET ASSY,HEAD LAMP Price: $21.60 |
| 17 |
23066-016 |
DAMPER RUBBER Price: $10.43 |
| 18 |
23076-005 |
COLLAR Price: $49.11 |
| 19 |
92074-006 |
PLUG REAR FENDER RUBB Price: $6.83 |
| 20 |
23066-015 |
DAMPER RUBBER Price: $9.79 |
