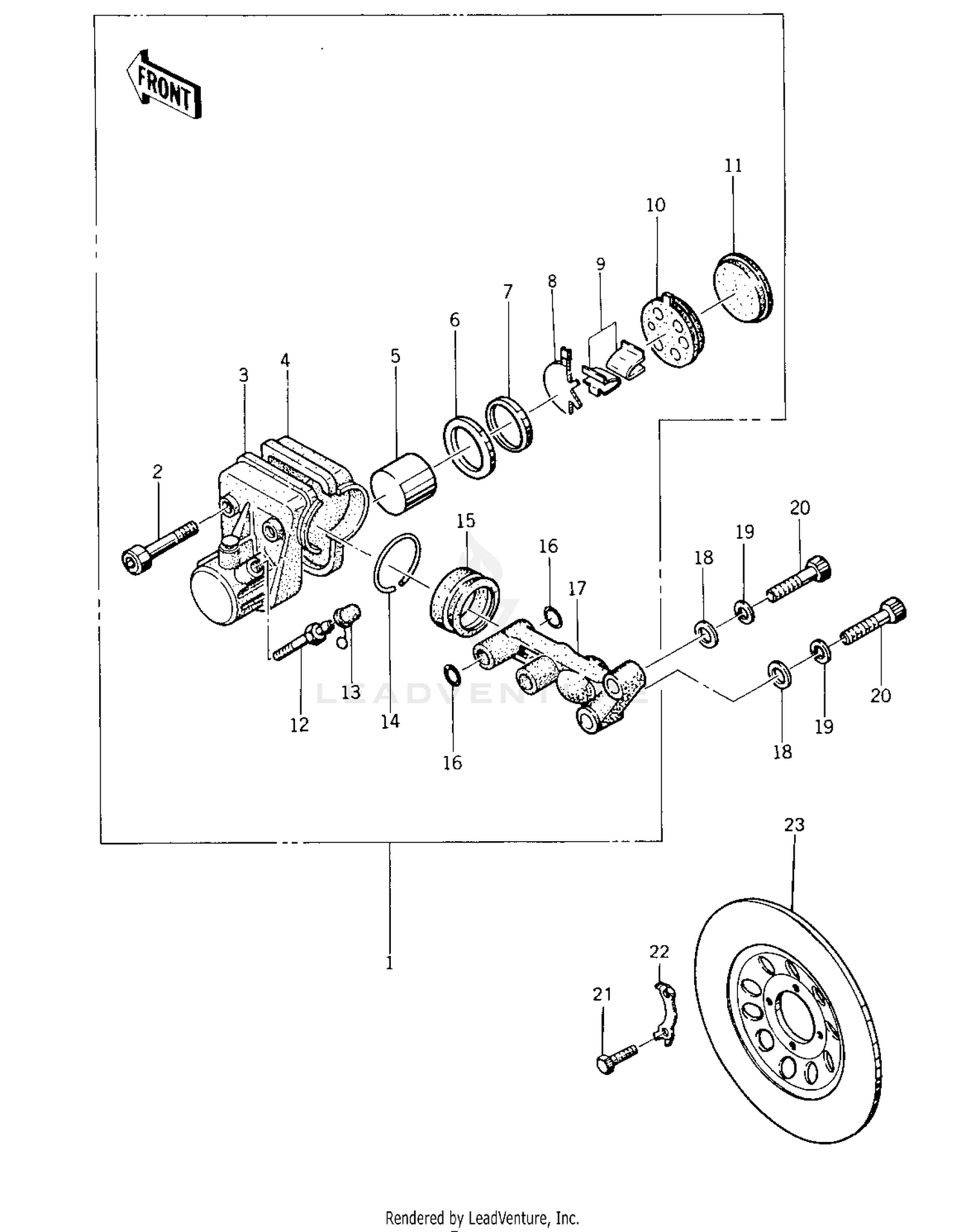

| Ref | Part Number | Description |
|---|
| 1 |
43041-016 |
CALLIPER ASSY Price: $254.52 |
| 2 |
43045-005 |
SHAFT Price: $22.07 |
| 3 |
43042-007 |
CALLIPER,A Price: $208.05 |
| 4 |
43043-005 |
CALLIPER,B Price: $95.59 |
| 5 |
43048-005 |
PISTON,CALIPER Price: $37.07 |
| 6 |
43049-004 |
RING,PISTON SEAL Price: $7.95 |
| 7 |
43083-002 |
SEAL Price: $9.98 |
| 8 |
43076-003 |
SHIM Price: $22.25 |
| 9 |
43084-002 |
CLIP,PAD Price: $9.70 |
| 10 |
43050-004 |
PAD A Price: $66.38 |
| 11 |
43051-003 |
PAD B Price: $106.03 |
| 12 |
43057-004 |
CAP,BREEDER Price: $2.28 |
| 13 |
43056-004 |
BREEDER Price: $6.46 |
| 14 |
43058-003 |
RING,DUST SEAL Price: $14.88 |
| 15 |
43052-004 |
DUST SEAL Price: $17.27 |
| 16 |
43053-004 |
O RING Price: $7.53 |
| 17 |
43044-010 |
HOLDER,CALLIPER Price: $139.32 |
| 18 |
410AA1000 |
WASHER-PLAIN-SMALL,10MM This part replaces 410B1000. Price: $0.59 |
| 19 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 20 |
92007-044 |
BOLT,HEX HEAD,10X57 Price: $17.78 |
| 21 |
92001-141 |
BOLT, HEX HEAD, 8X25 Price: $6.16 |
| 22 |
92088-016 |
WASHER-LOCK Price: $5.28 |
