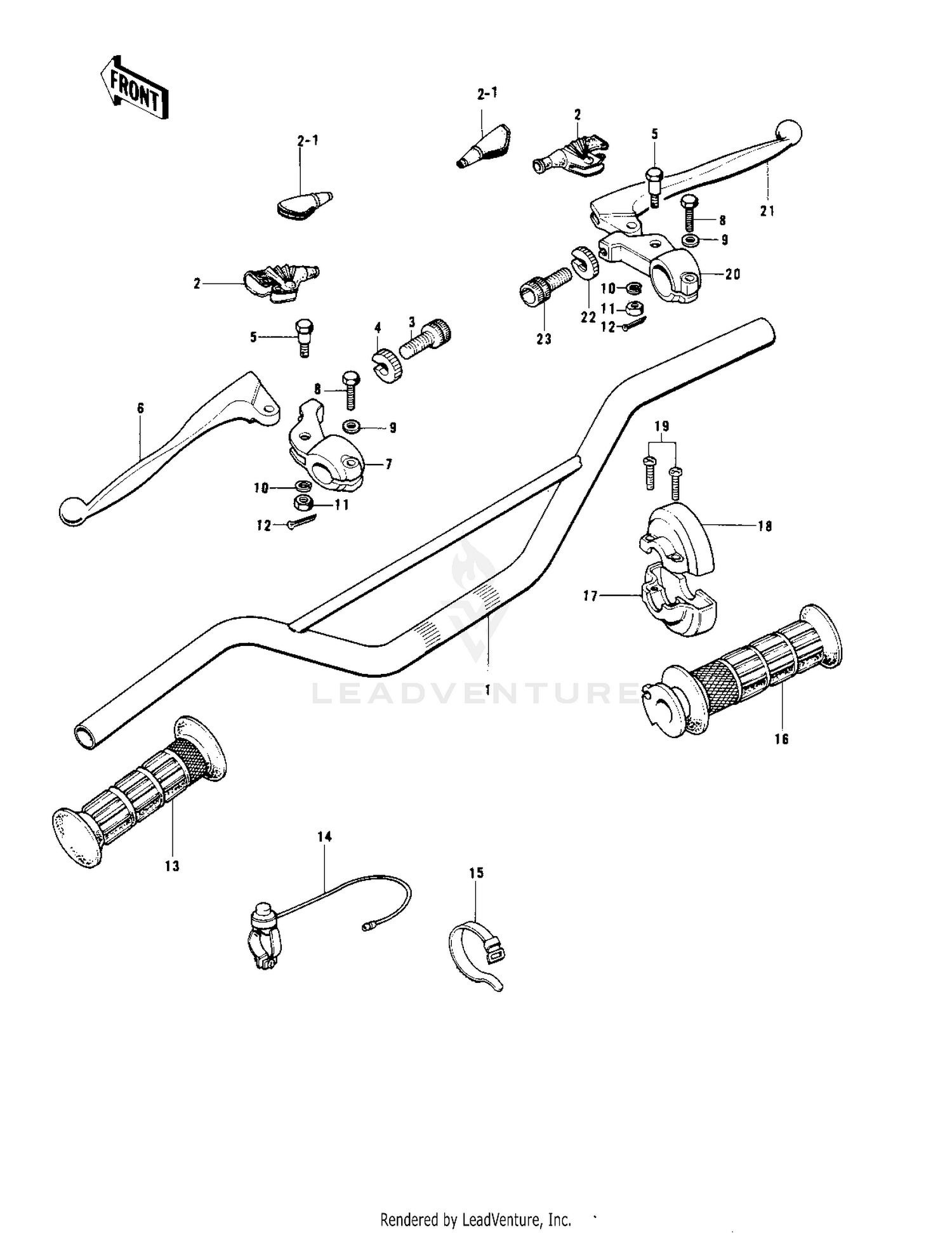

| Ref | Part Number | Description |
|---|
| 1 |
46004-028 |
HANDLEBAR Price: $95.38 |
| 3 |
46055-009 |
SCREW,CABLE ADJUST Price: $19.07 |
| 4 |
46056-006 |
NUT,CABLE ADJUST LOCK Price: $8.94 |
| 5 |
92001-140 |
BOLT,HEX HEAD,6MM Price: $21.19 |
| 6 |
46092-021 |
LEVER, CLUTCH Price: $55.84 |
| 7 |
46094-014 |
HOLDER,CLUTCH LEVER Price: $81.89 |
| 8 |
110N0622 |
BOLT, HEX HEAD 6X22 Price: $4.56 |
| 9 |
411AA0600 |
WASHER-PLAIN,6MM This part replaces 411B0600. Price: $2.92 |
| 10 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 11 |
320B0600 |
NUT CASTLE Price: $3.42 |
| 12 |
550AA1615 |
PIN-COTTER,1.6X15 This part replaces 550D1615. Price: $2.51 |
| 13 |
46075-025 |
RUBBER,L.H GRIP Price: $18.47 |
| 14 |
27010-1018 |
SWITCH,ASSY,ENG STOP Price: $70.86 |
| 15 |
92072-030 |
BAND,L=123 Price: $5.00 |
| 16 |
46019-033 |
GRIP ASSY,THROTTLE Price: $81.80 |
| 17 |
46023-018 |
CASE,R.H LOWER Price: $29.83 |
| 18 |
46041-022 |
CASE,R.H UPPER Price: $31.57 |
| 19 |
220E0520 |
SCREW PAN HEAD 5X20 Price: $2.16 |
| 20 |
46060-010 |
HOLDER,FR BRAKE LEVER Price: $62.28 |
| 21 |
46058-018 |
FRONT BRAKE LEVER Price: $57.72 |
| 22 |
46056-006 |
NUT,CABLE ADJUST LOCK Price: $8.94 |
